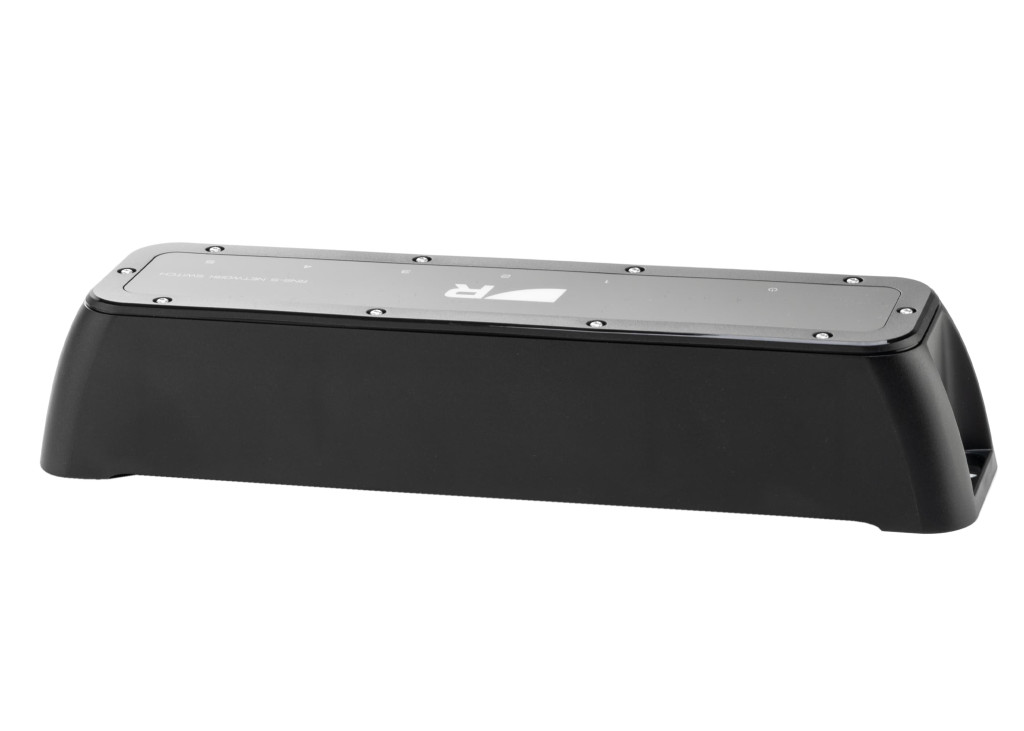

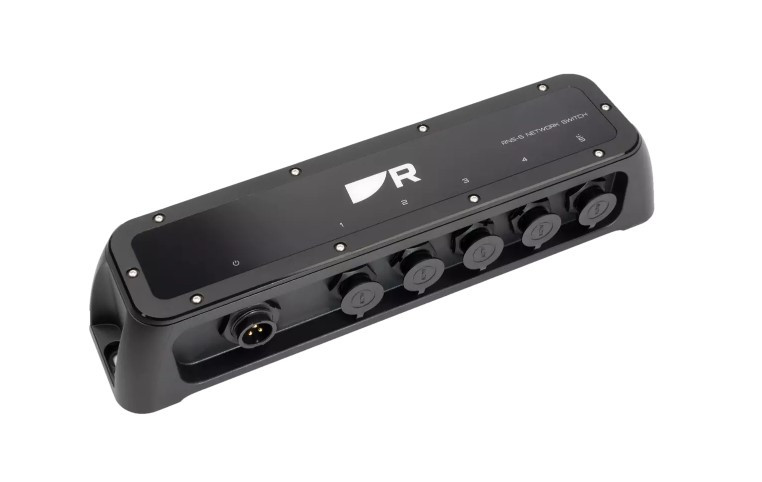

Raymarine RNS5 Gigabit Raynet Network Switch

Integrated Network Expansion

The RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.



RNS-5 KEY FEATURES

• 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
• Rugged IPX 6 construction
• Reliable, waterproof RayNet connector Ethernet cable ports

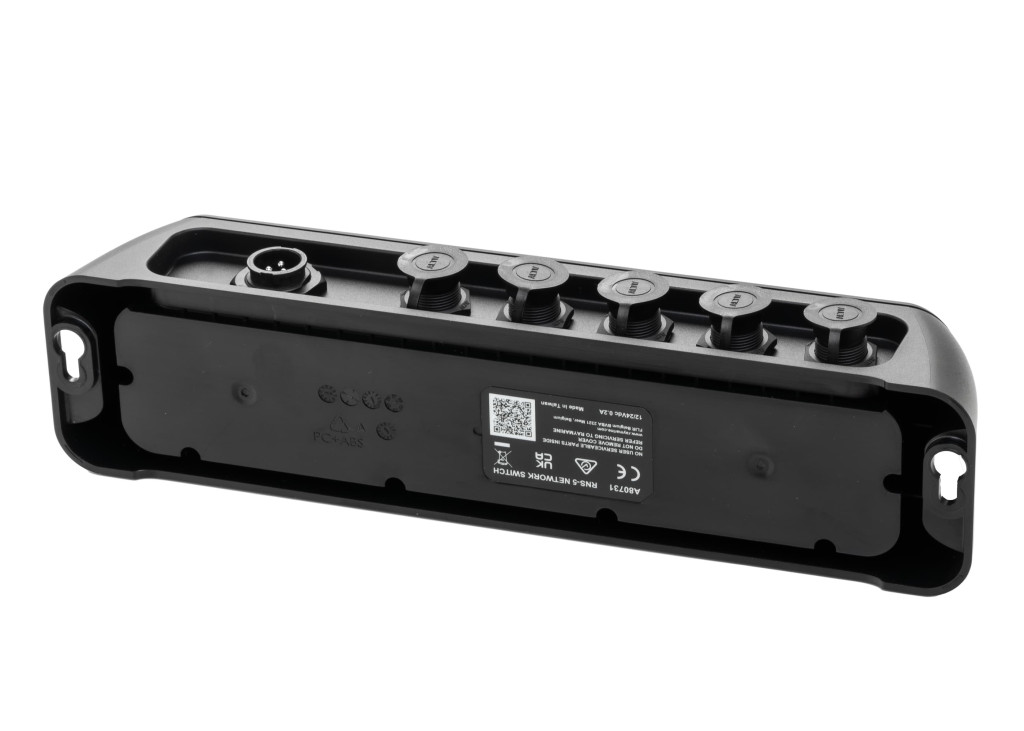

• Designed for simple bulkhead mounting
• LED power and network port status indicators
• Unmanaged- simply plug and play with Raymarine devices.
• No complicated setup or configuration

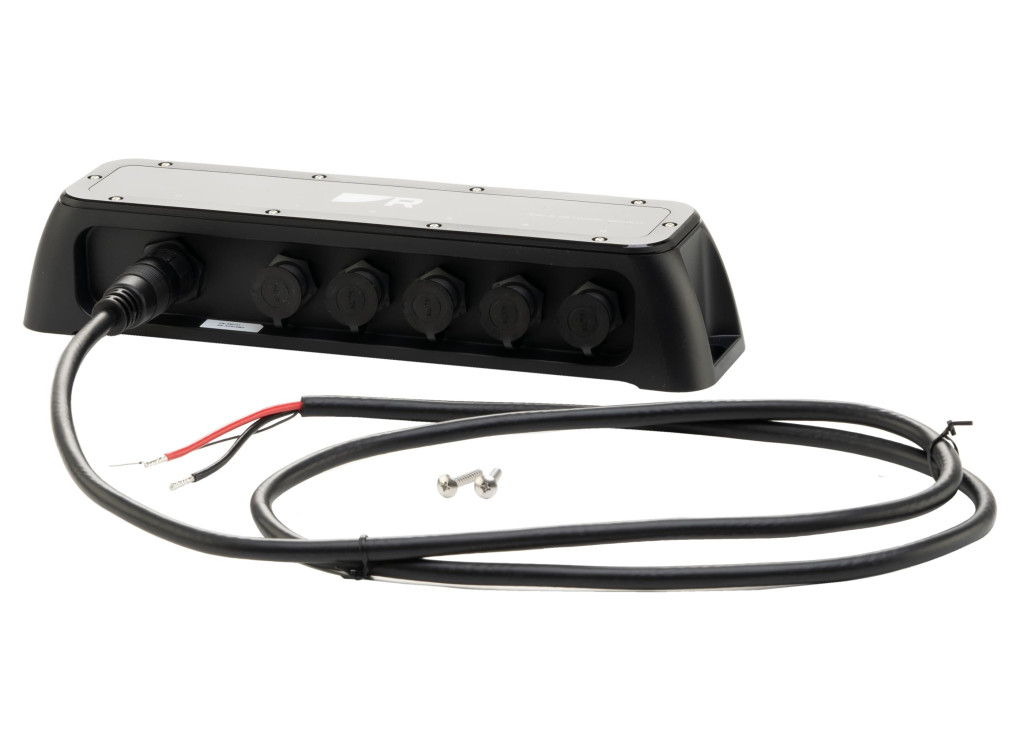

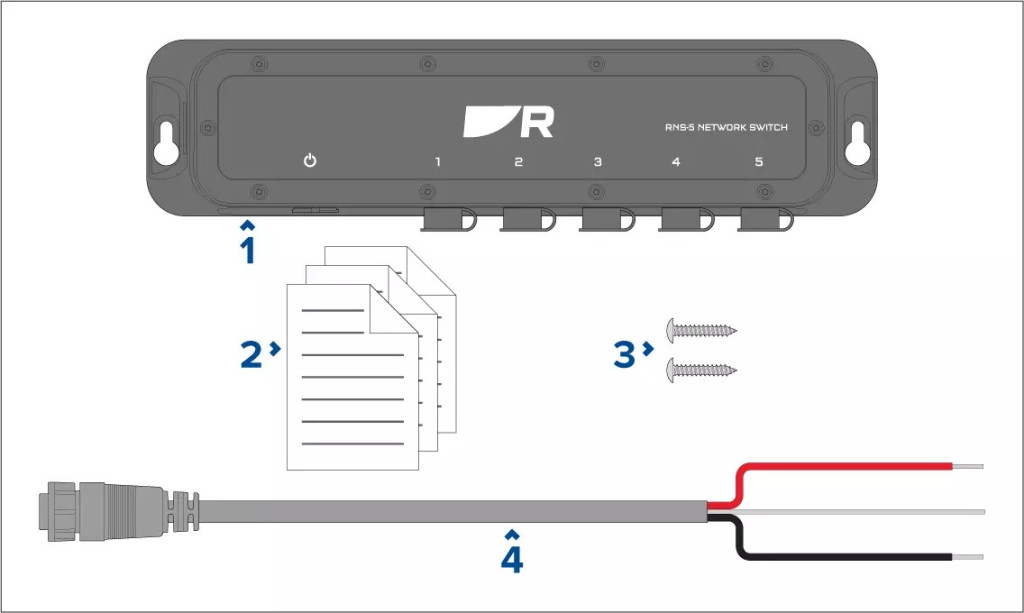

What's in the box?



1	RNS-5 Network Switch
2	Documentation
3	Fixing screws (M4, 8.94 x 25 mm)

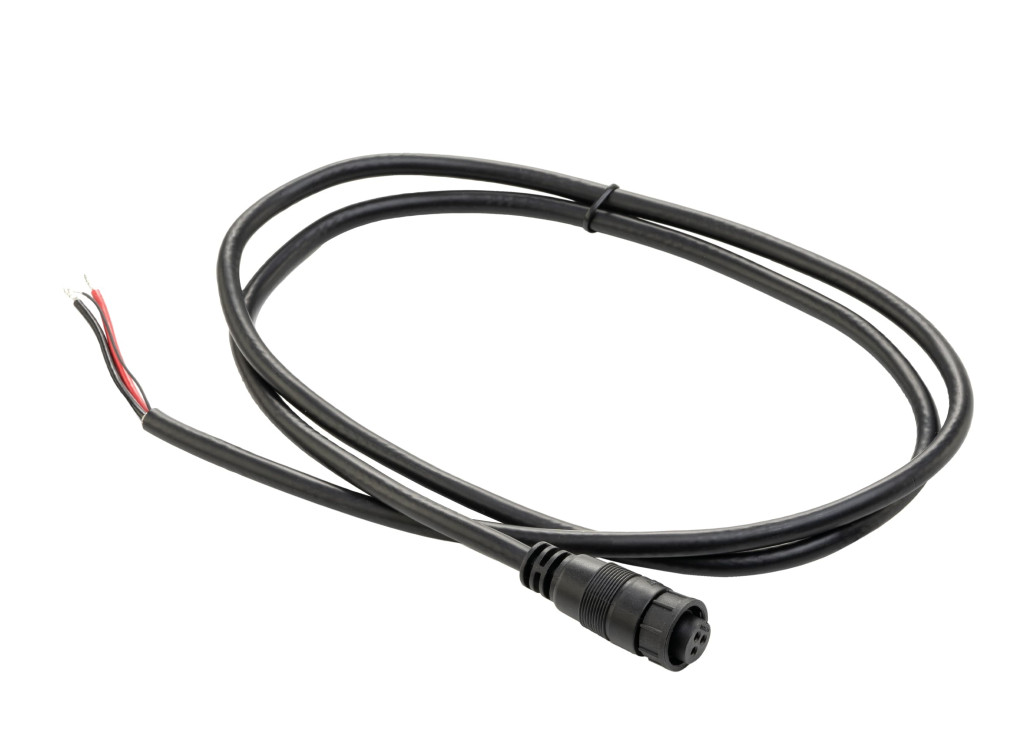

4	Power cable (1.5 m (4.9 ft))





Info

Article number:

RM-A80731

Website:

https://www.raymarine.com/en-gb/our-products/chart...

Weight:

360 g/pcs

Technical specification

Environmental
Relative Humidity	up to 93% @ 40 °C (104 °F)
Waterproof rating	IPx6, IPx7
Non-operating temperature	-30 °C (-22 °F) to +70 °C (158 °F)
Storage temperature	-25 °C to +70 °C (-13 °F to 158 °F)
Operating temperature	-25 °C to +55 °C (-13 °F to 131 °F)

Conformance
Product markings	UKCA, CE, Australian Tick, WEEE Directive
Standards	EN 60945:2002 (Europe, Australia New Zealand), EN ISO 8846:2017, ICES-003 (Canada), CFR47 Part 15 (USA), IACS section E10 (Japan / China), EMC Directive 2014/30/EU

Physical
Dimensions	Length: 286 mm (11.26 in), Width: 72.6 mm (2.86 in), Height: 55.5 mm (2.19 in)
Port separation distance	16.7 mm (0.65 in)
Weight	0.36 kg (0.79 lbs)

Network
IEEE Standard	Conforms to IEEE 802.3at
Network connection ports	5x waterproof RayNet connection ports (10/100/1000 Mbits/s)
Ethernet speed	10 / 100 / 1000 M/bits (Port 5 only)

Power
Nominal supply voltage	12 V / 24 V dc
Operating voltage range	10.8 V to 31.2 V dc
Power consumption	3 W (Maximum) @ 12 V
Thermal breaker rating	3 A
Inline fuse rating	2 A
Current	< 600 mA (nominal) @ 12 V
