HV-300 HyperVision Plastic Through Hull Transducer, 6m cable with fairing block to be cut from 0-25°

Manufacturer:

RAYMARINE

Manufacturer Article number:

A80604

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.

Details

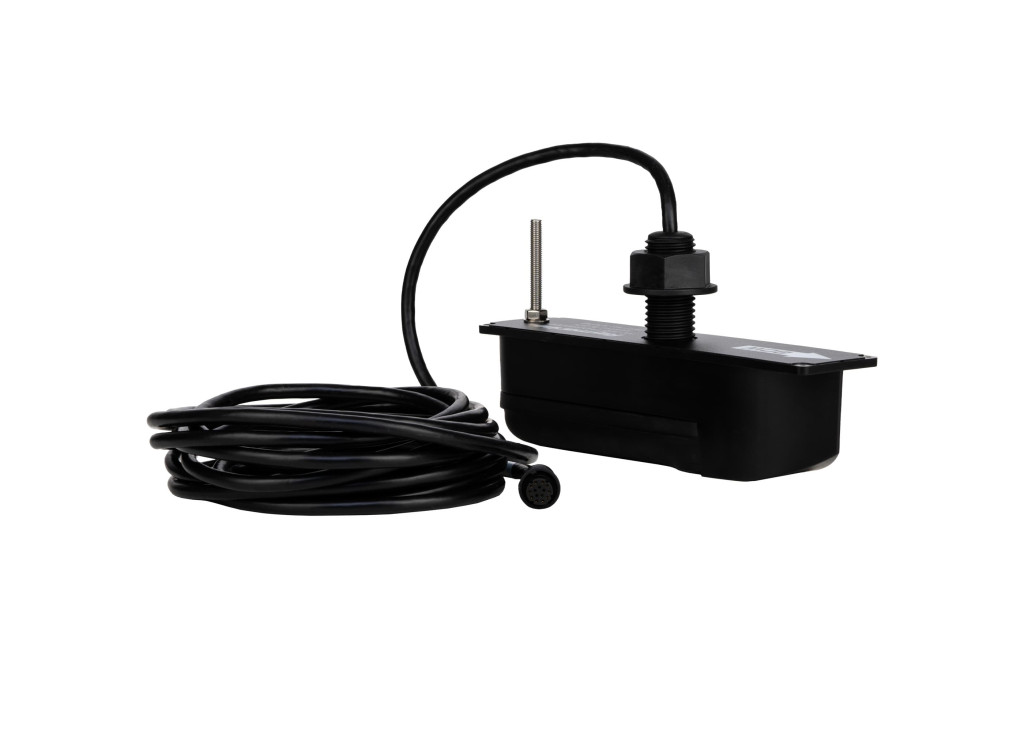

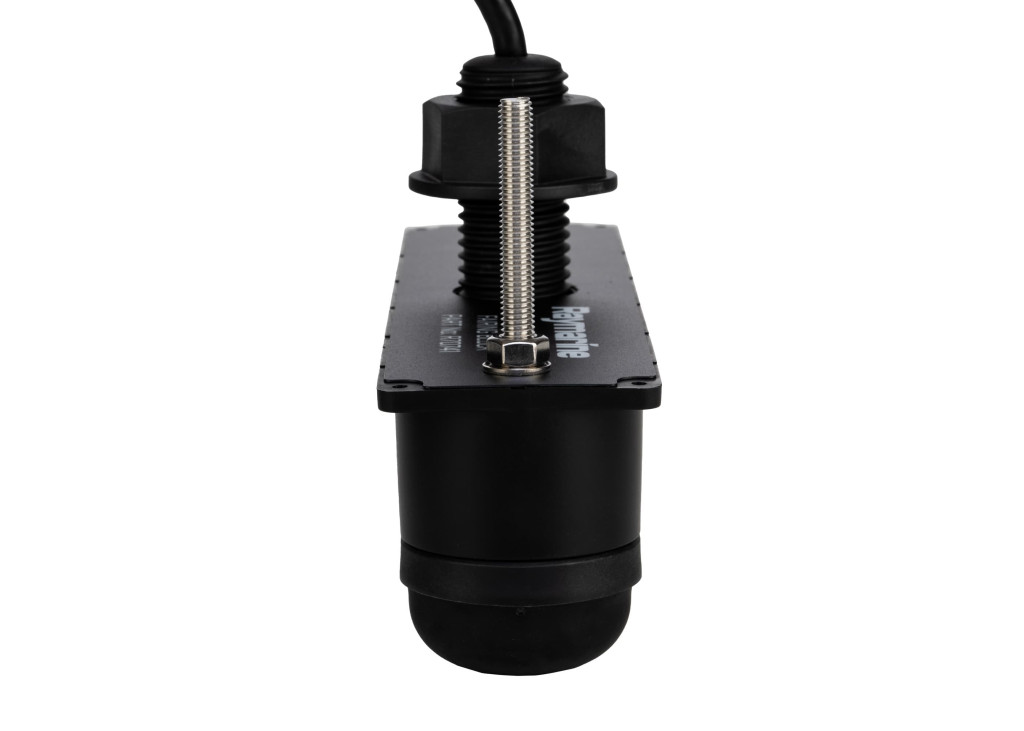

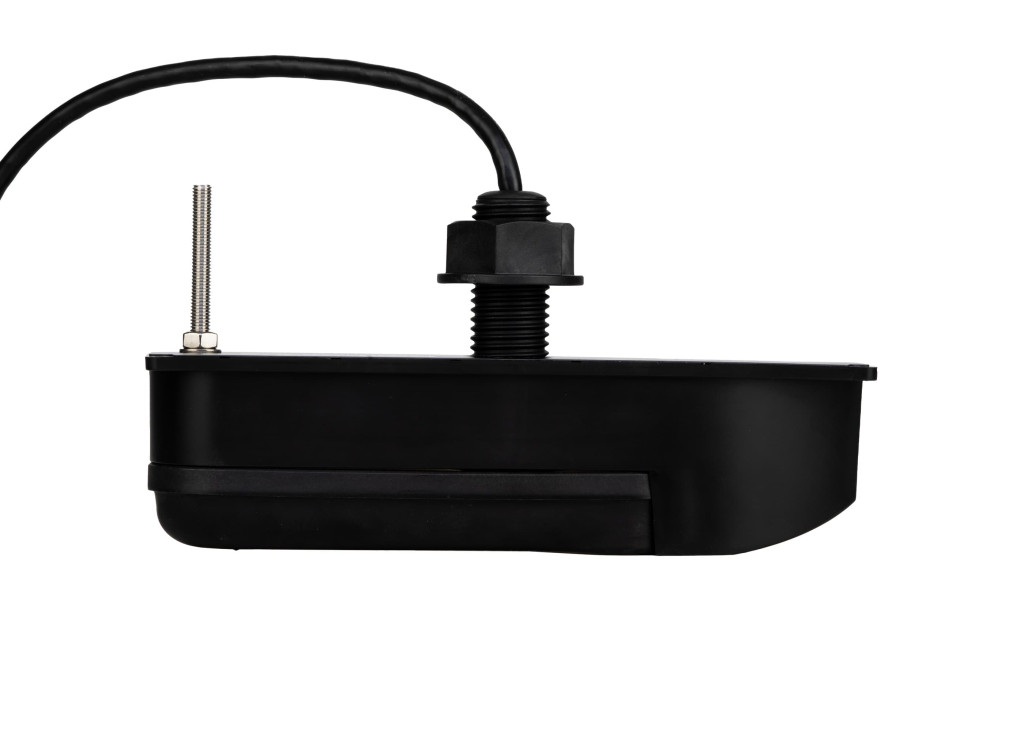

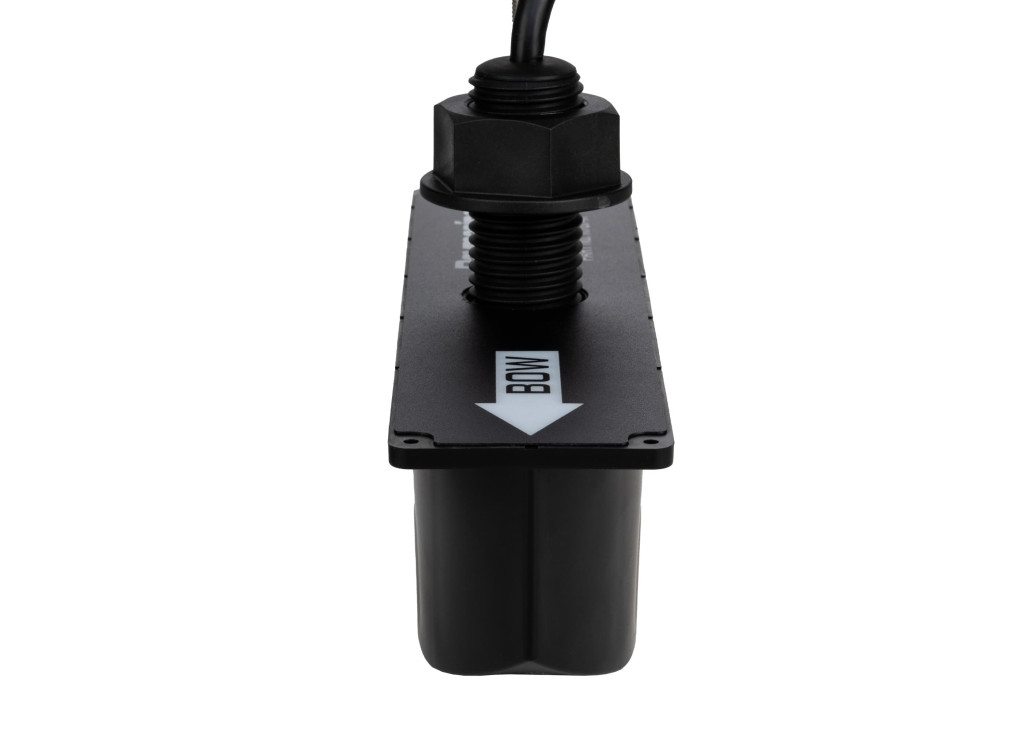

Raymarine HV-300 HyperVision Plastic Through Hull Transducer

1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.

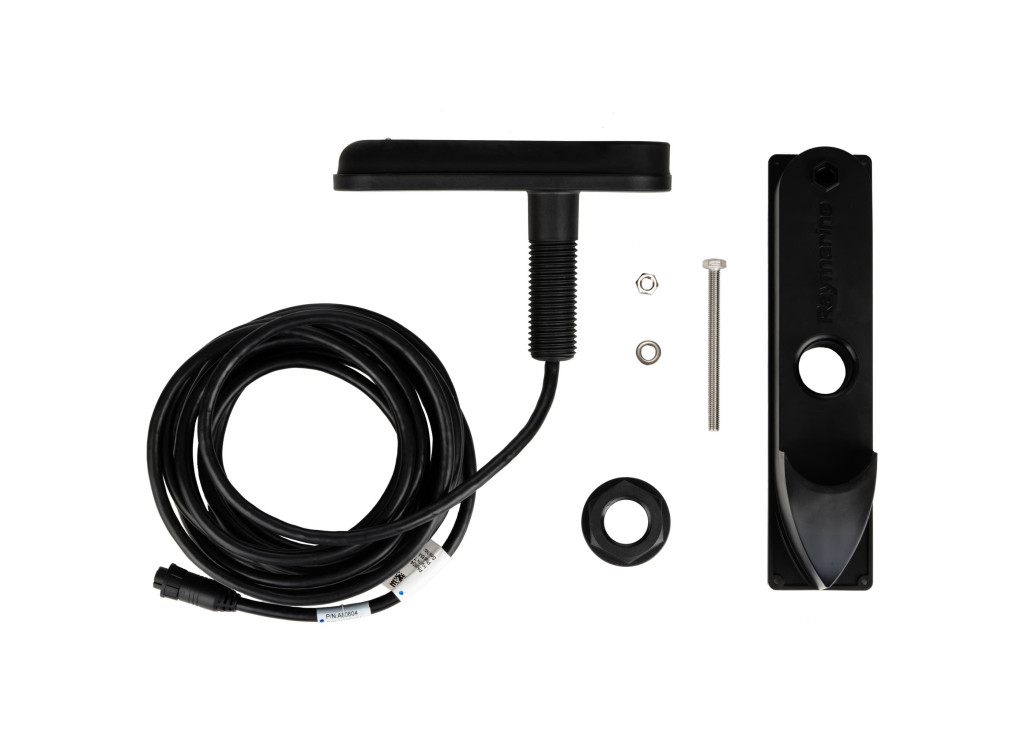

What's in the box?

1	Anti-rotation nut
2	Hull nut
3	Anti-rotation washer

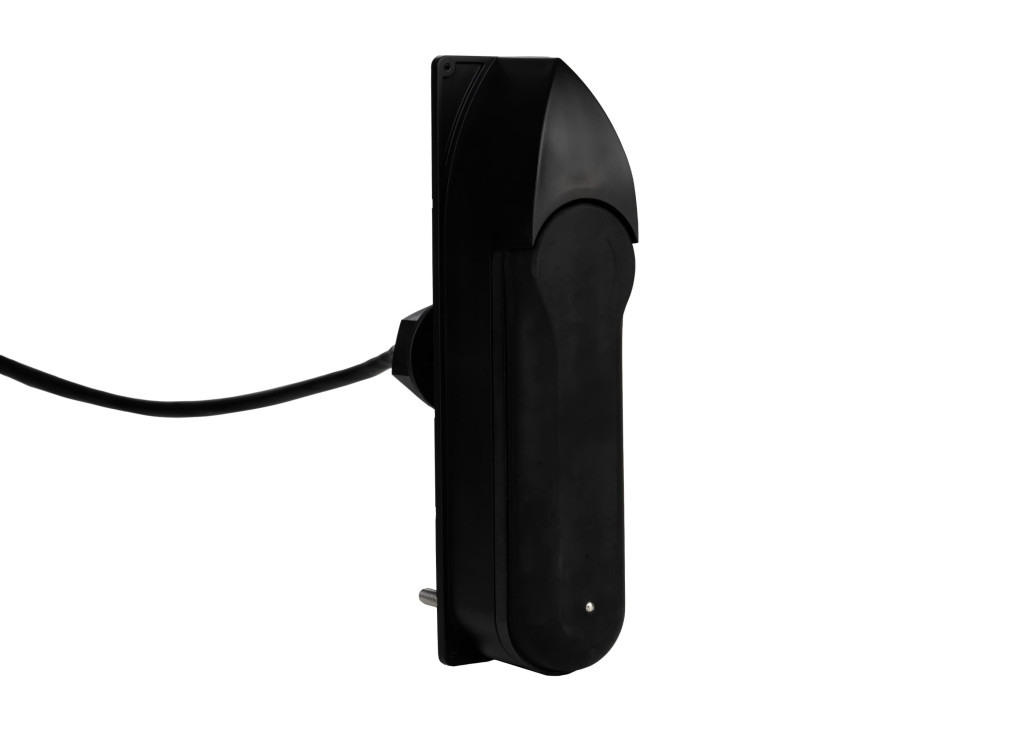

4	Fairing block
5	Documentation
6	Anti-rotation bolt
7	Transducer (with fitted cable)

Info

Article number:

RM-A80604

Cable lengths (m):

Website:

https://www.raymarine.com/en-au/our-products/fishf...

Weight:

1.52 kg/pcs

Technical specification

General Specifications
Material	Plastic
Max Depth	3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900
Frequency	1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP
Beam Width	3D: 180° / Down: 60° / Conical: 25°
Records	Depth / Temperature
Hull Material	Fiberglass / Metal
Cable Length	19 Ft. / 6 M.

HyperVision
350 kHz (Standard) range	RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) range	RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar channels	Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz range	Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
Frequencies	1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
Power	1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W

Physical

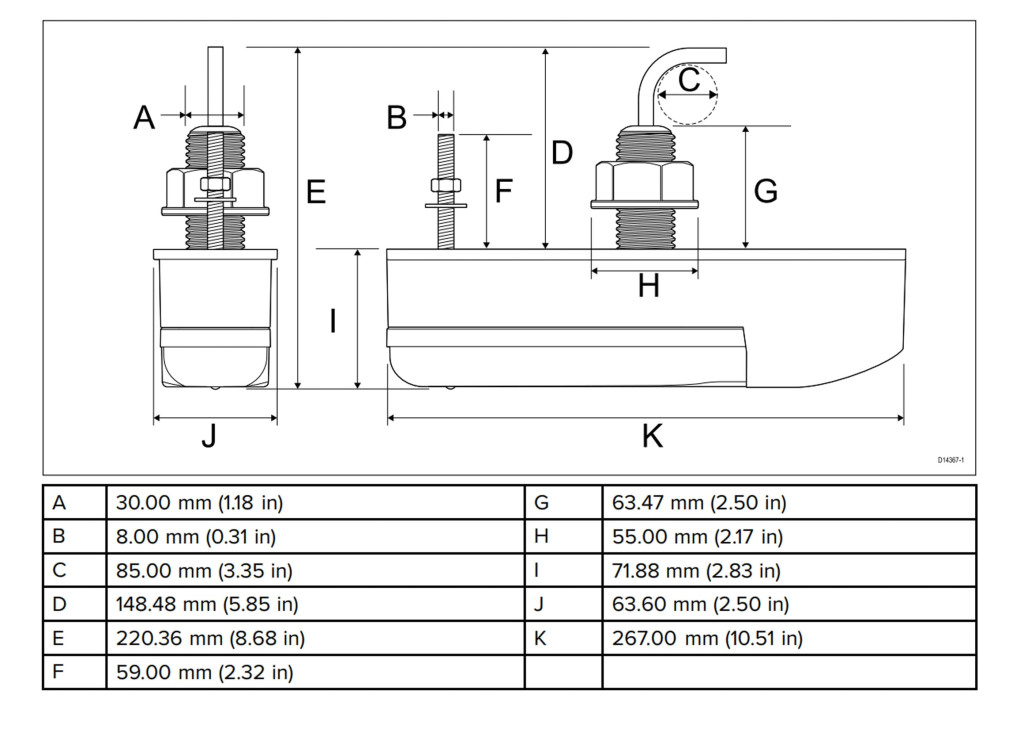

Overall dimensions (including fairing)	Length: 267.01 mm (10.51 in), Height: 170.36 mm (6.71 in) including cable bend radius, Width: 63.60 mm (2.50 in)

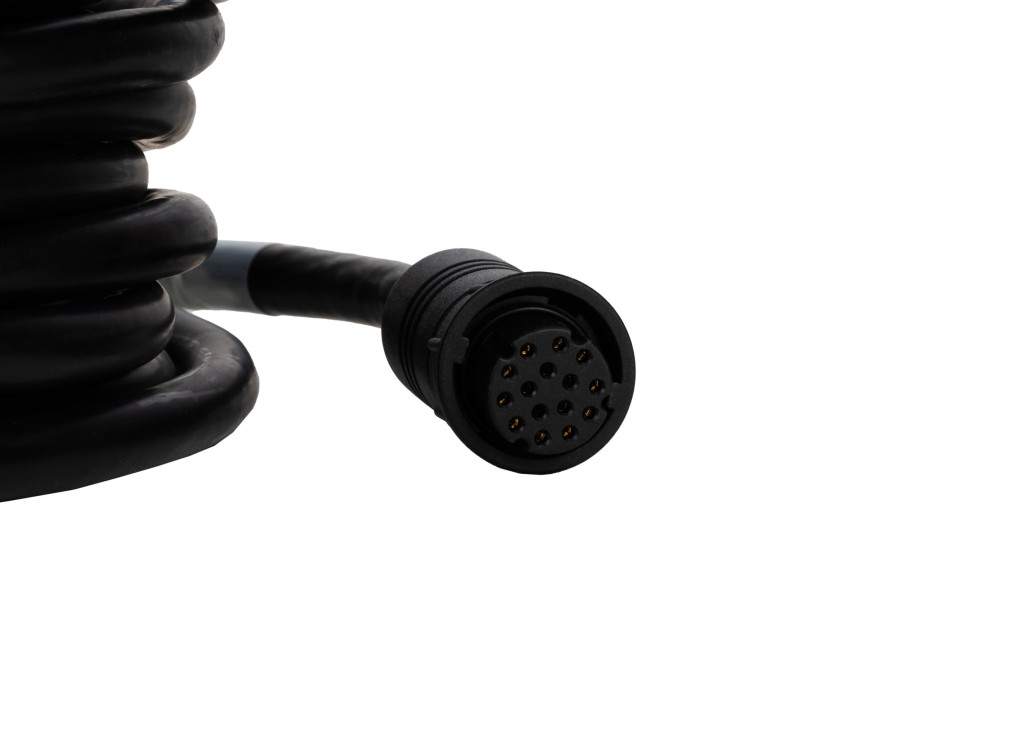

Cable length	HV-300TH: 6 m (19.69 ft) fitted cable, HV-300THP-P / HV-300THP-S 2 m (6.5 ft)
Weight (unboxed)	1.52 kg (3.35 lb) Maximum

Environmental
Waterproof rating	IPx6 (surfaces exterior to hull only), IPx7, IPx8
Storage temperature range	-20° C (23° F) to + 70° C (158° F)
Operating temperature range	-2° C (28.4° F) to + 55° C (131° F)

Conformance
Standards	EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
