Philippi STV 207, (kapcsoló panel)

Bundle offers

• Details
• Data
• Technical specification

Details

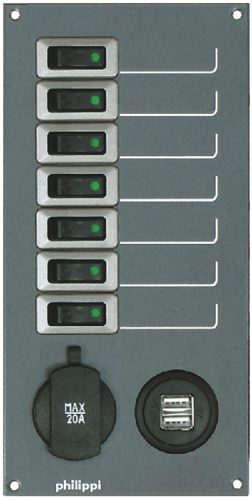

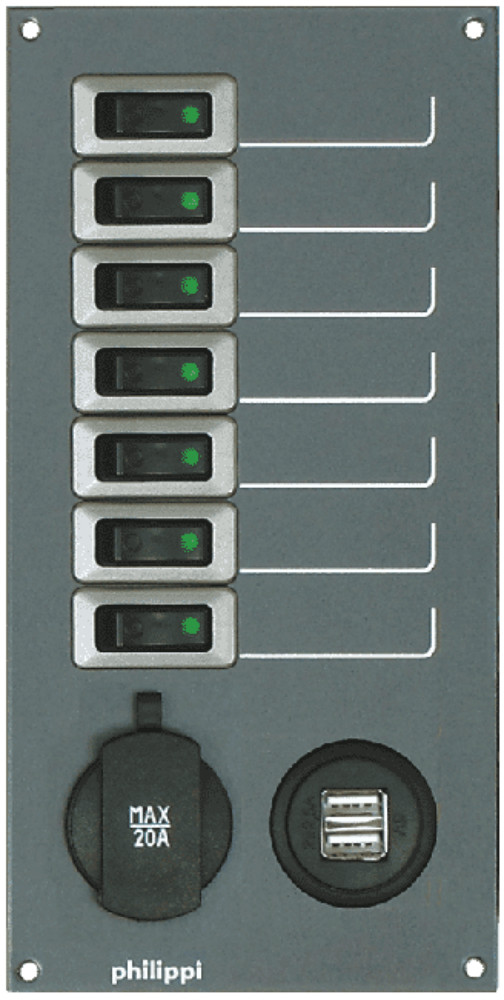

Philippi STV 207

Circuit distributor with 7 circuits with thermal rocker circuit breakers, rated current 10A.
On request, 2A, 6A, 16A or 20A can also be used.
In addition, a DC socket and a USB double charging socket are integrated.
The scope of delivery includes a set of inscriptions SKZ (for boats) and black fixing screws.
On request, a labeling set for vehicles: SKZ-MOBIL can also be supplied as an option.
The consumer supply cables are connected via 6.3mm blade receptacles on the back of the rocker circuit breakers. The supply cables have a length of 70 cm.
We recommend the use of a terminal block for clear and safe installation.
The mounting cutout can be chosen smaller than the panel dimensions by 12 mm per edge (81 x 186 mm).

Applicable for DC 12V and 24V.

Dimensions: W 105 x H 210 x D 70 mm

For this purpose recommended terminal block type RKL 10.

Data

Type:

USB töltő

Input voltage (DCV):

12/24

Current (A):

10

Number of outputs:

7

Connectable Circuit:

DC

Switching mode:

Kapcsoló

Energy distribution category:

Akkumulátor kapcsolótábla

Circuit Breaker Switch:

Igen

Website:

https://www.philippi-online.de/en/produkt/panel-st...

Weight:

490 g/db

Technical specification

Weight	0,485 kg
Dimensions	24 × 16 × 9 cm
Brand	Philippi
Voltage	DC12V, DC24V
