Nasa Marine LTD Clipper Compass
Nasa Marine LTD Clipper Compass
Price: 23 929 Ft
without VAT: 23 929 Ft+VAT (0 Ft)
  1. Used Products
  1. Other equipment
  2. Used Products

Nasa Marine LTD Clipper Compass

Article No.:
NM-COMPASS-HA
Nasa Marine LTD Clipper Compass
Nasa Marine LTD Clipper Compass
Nasa Marine LTD Clipper Compass
Nasa Marine LTD Clipper Compass
Used
Price: 23 929 Ft
without VAT: 23 929 Ft+VAT (0 Ft)
Használt termék garancia :
72 Óra garancia
Manufacturer:
NASA MARINE
Manufacturer Article number:
COMPASS
pcs
Main warehouse
In stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!

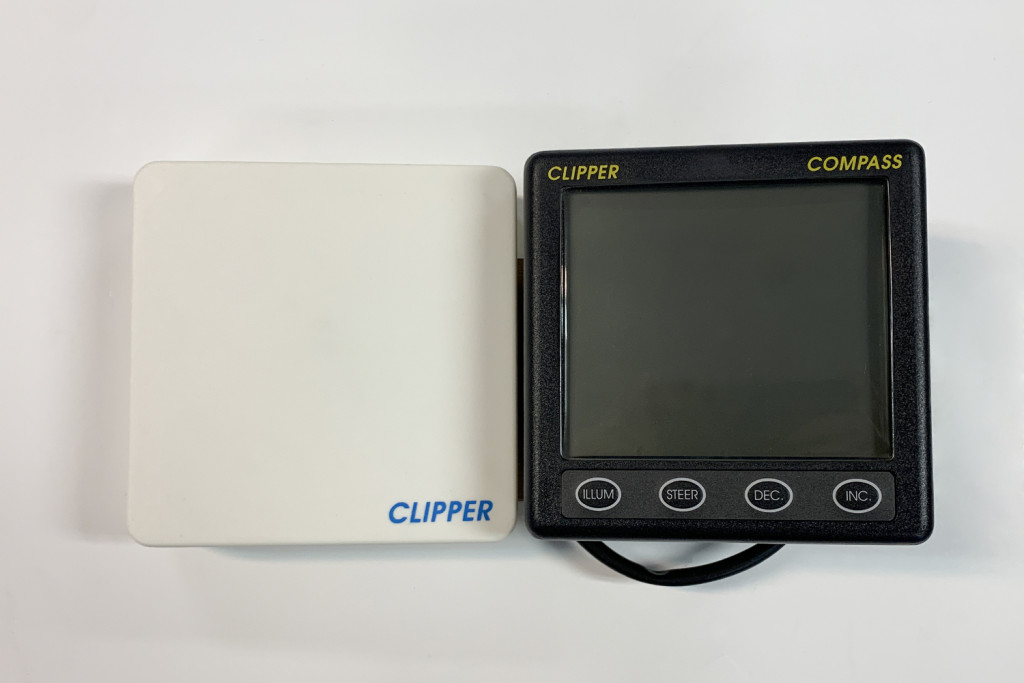

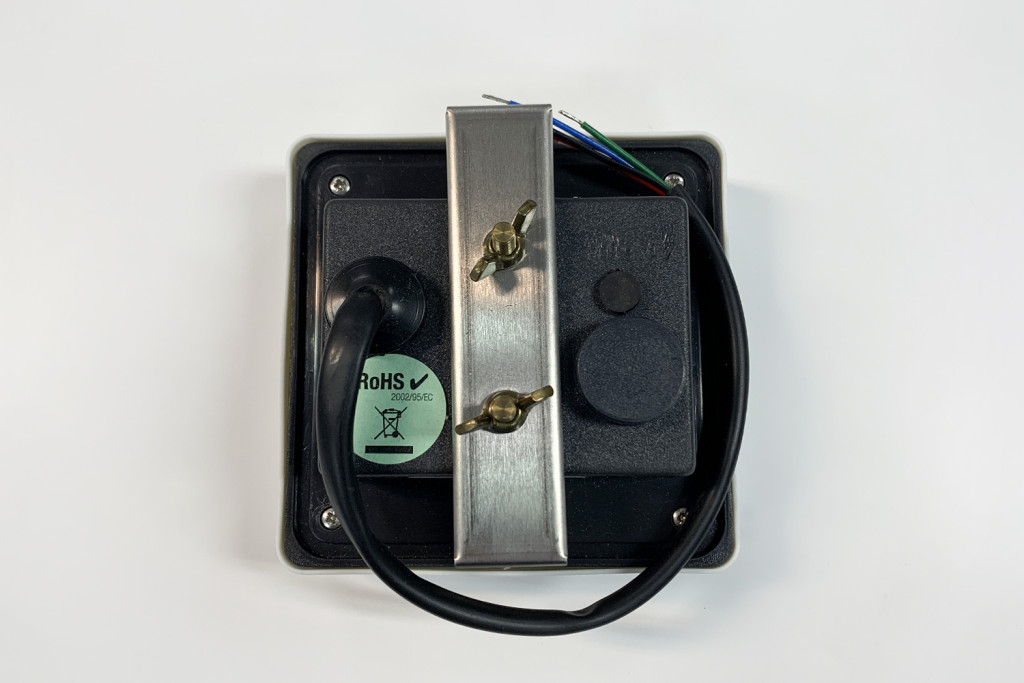

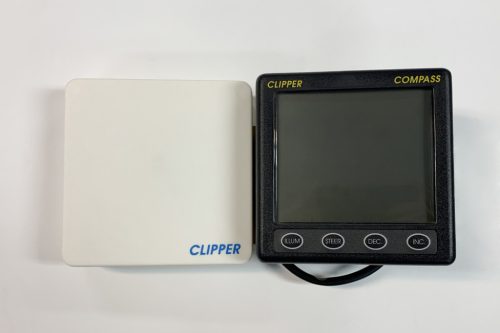

The Clipper Compass is a fully electronic compass with remote fluxgate sensor. The large clear display has 7 levels of illumination and gives True or magnetic heading. The sensor which is gimballed for plus/minus 30 degrees of pitch and roll, is mounted in a position where stray magnetic fields are at a minimum. An electronic auto calibration then cancels out small errors.

Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User Manual
Details

Nasa Marine LTD Clipper Compass

The Clipper Compass is a fully electronic compass with remote fluxgate sensor. The large clear display has 7 levels of illumination and gives True or magnetic heading. The sensor which is gimballed for plus/minus 30 degrees of pitch and roll, is mounted in a position where stray magnetic fields are at a minimum. An electronic auto calibration then cancels out small errors.
Steer to course function
When the steering function is selected a series of chevrons accumulate showing the magnitude and direction of the steering error. To stay on course simply turn the wheel in the direction of the chevrons until they are extinguished. The steering sensitivity can be preset by the user. An off course alarm provides a safety feature when not at the helm. If the heading deviates by more than a preset amount then the alarm will sound.

Info
Article number:
NM-COMPASS-HA
Website:
https://www.nasamarine.com/product/clipper-compass...
Weight:
475 g/pcs
Technical specification

Technical Specifications

  • Supply voltage Nominal 12v DC
  • Consumption 40mA + 10 mA max for full level display illumination
  • Fluxgate accuracy +/- 1 degree
  • Adjustable Damping
  • 1 degree display resolution
  • Display case size 110 x 110mm
  • Depth behind panel 30mm
  • Fluxgate Dimensions 72mm x 68mm x 40mm
  • Fluxgate Weight 475 grams including 10 metre cable
  • sensor supplied with 10 metres of cable
Download User Manual


Download User Manual
