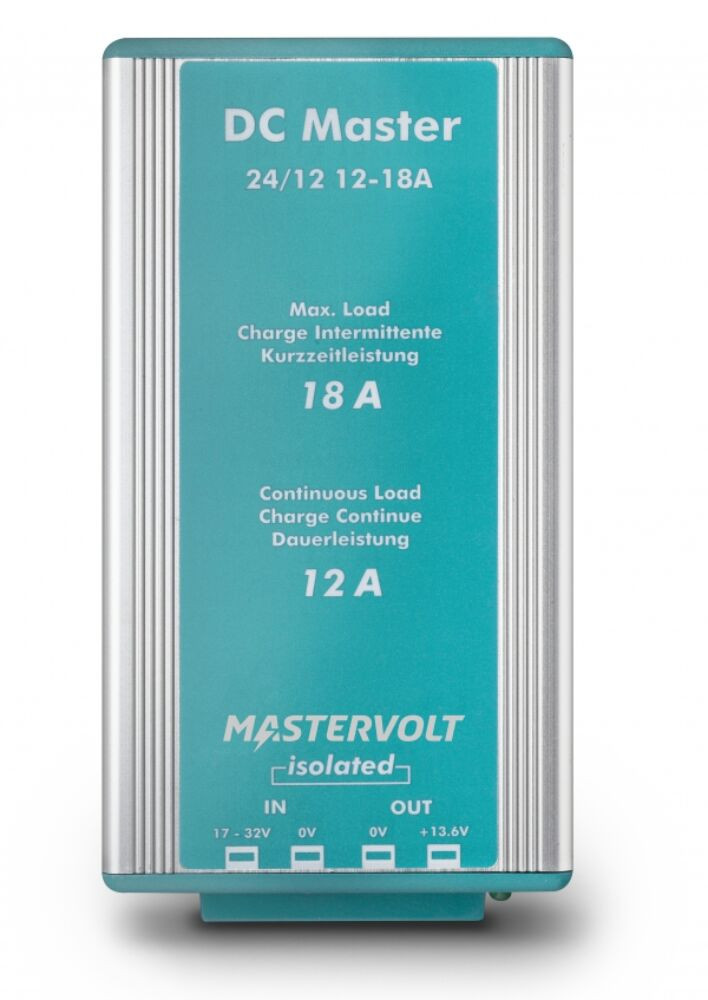

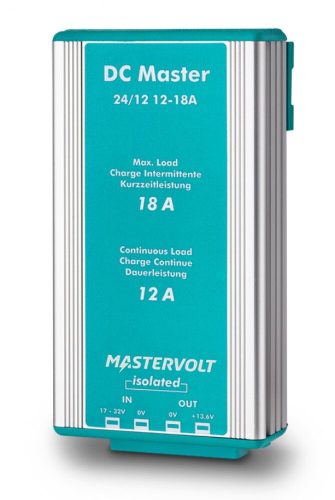

Mastervolt DC Master 24/12-12 (Isolated)

Name: Mastervolt DC Master 24/12-12 (Isolated)
Brand: MASTERVOLT
SKU: MVT-81500300

Manufacturer:

MASTERVOLT

Manufacturer Article number:

81500300

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.

Details

Mastervolt DC Master 24/12-12 (Isolated)

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.

Recreational and semi-professional use.
Easy to install using included mounting bracket.
Excellent price/performance ratio.
Available in isolated and non-isolated version.

The non-isolated DC Master models have an electrical connection between the input and output.
Features:

Low costs.
Efficient: low heat generation.
Compact.
Suited to applications with negative earthing.

The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:

Extra touch-proof.
Interference suppression for sensitive equipment.
Available with negative or positive grounding.

Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package

All DC Master converters are delivered with mounting bracket, screws and fasteners.

Data

Type of energy supply:

Feszültségátalakító

Input voltage (DCV):

Output voltage (DCV):

Current (A):

Power (W):

164

Number of outputs:

IP rating:

IP53

Galvanic isolation:

IGEN

Compliance:

CE, E-mark

Website:

https://www.mastervolt.com/products/dc-master/dc-m...

Weight:

590 g/db

Technical specification

General specifications
Nominal output voltage	13.6 V
Max. output power	245 W
Nominal output power	164 W
Max. output current (for 2 min. intervals)	18 A
Continuous output current	12 A
Nominal input voltage	24 V
Input voltage range (max.)	20-32 V DC (35 V)
Galvanic isolation	yes
Stabilised	yes
Dimensions, hxwxd	167 x 87 x 50 mm 6.6 x 3.4 x 2.0 inch
Weight	0.59 kg 1.3 lb
Compliance	CE, E-mark

Technical specifications
DC consumption	< 15 mA
Connections	fast-on
Temperature range (ambient temp.)	-25 °C to 80 °C, derating > 30 °C -13 °F to 176 °F
Cooling	natural cooling
Protection degree	IP53
