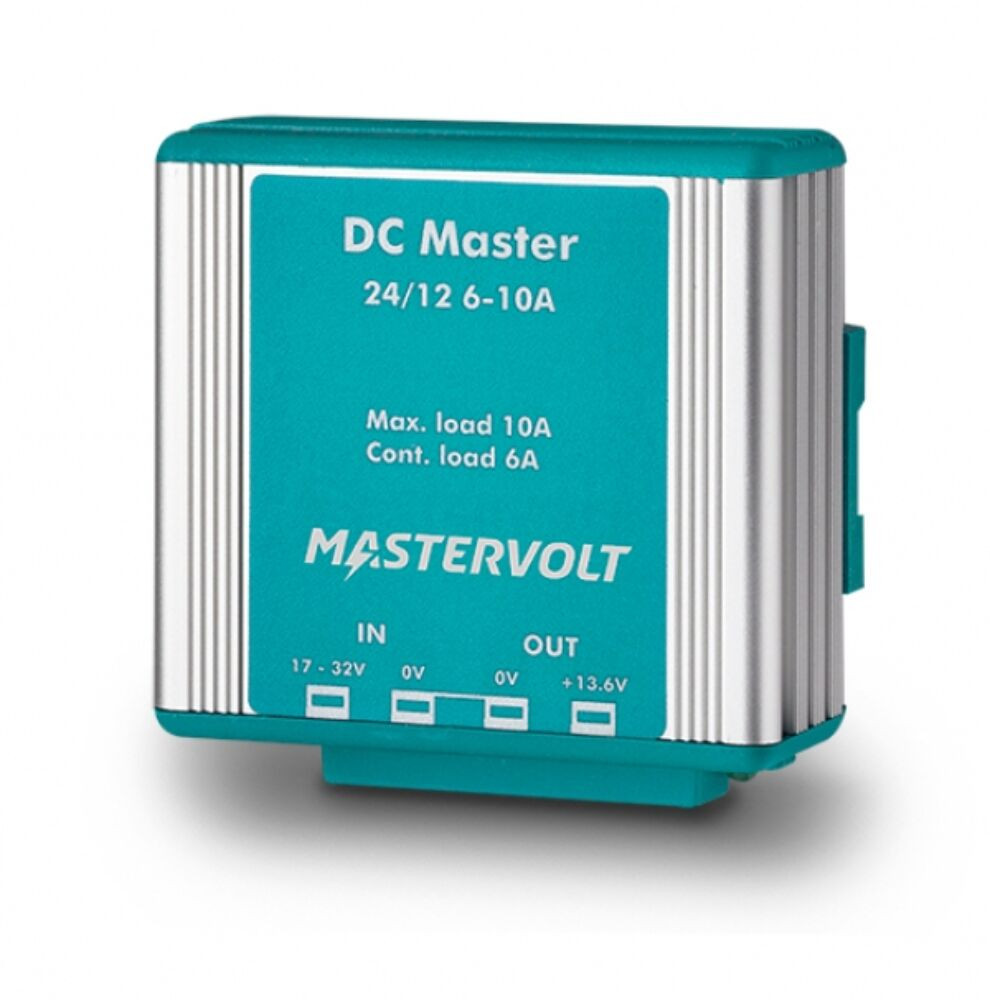

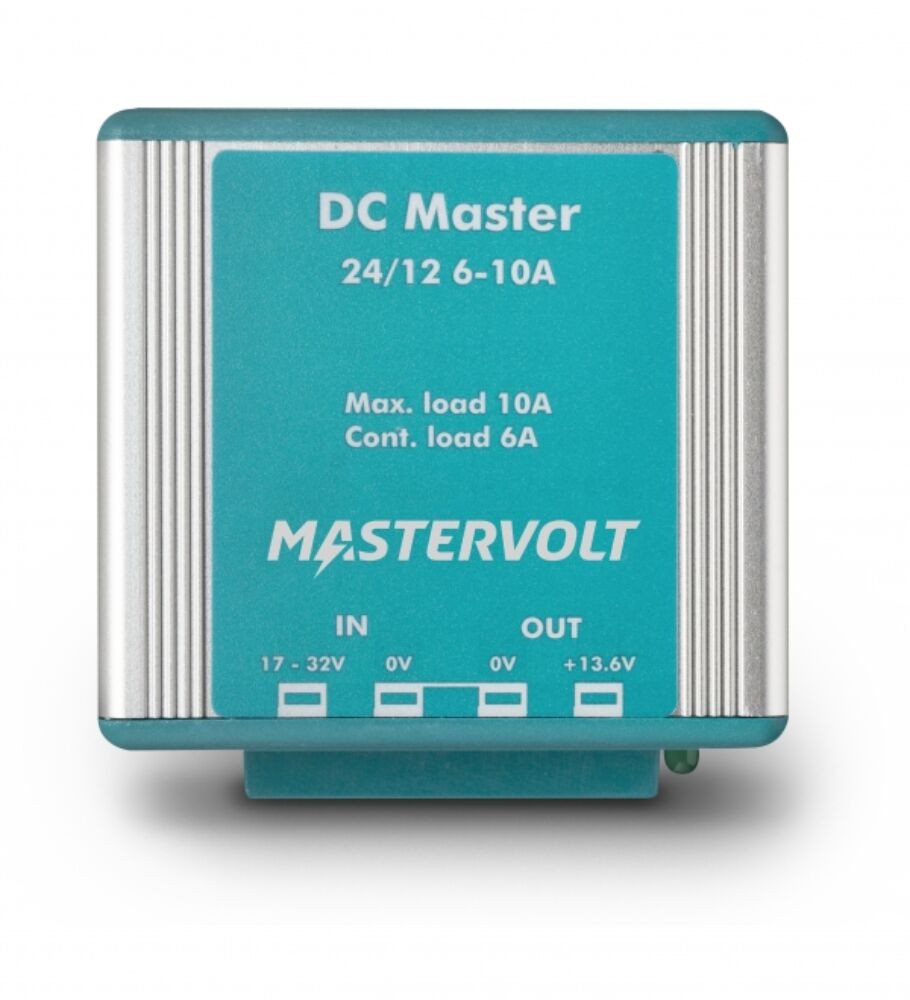

Mastervolt DC Master 24/12-6

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.

• Recreational and semi-professional use.
• Easy to install using included mounting bracket.
• Excellent price/performance ratio.
• Available in isolated and non-isolated version.



The non-isolated DC Master models have an electrical connection between  the input and output.
Features:

• Low costs.
• Efficient: low heat generation.
• Compact.
• Suited to applications with negative earthing.



The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:

• Extra touch-proof.
• Interference suppression for sensitive equipment.
• Available with negative or positive grounding.

Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package

All DC Master converters are delivered with mounting bracket, screws and fasteners.

Info

Type of energy supply:

Feszültségátalakító

Input voltage (DCV):

24

Output voltage (DCV):

12

Current (A):

6

Power (W):

82

Number of outputs:

1

IP rating:

IP53

Galvanic isolation:

NEM

Compliance:

CE

Website:

https://www.mastervolt.com/products/dc-master/dc-m...

Weight:

250 g/db

Technical specification

General specifications
Nominal output voltage	13.6 V
Max. output power	136 W
Nominal output power	82 W
Max. output current (for 2 min. intervals)	10 A
Continuous output current	6 A
Nominal input voltage	24 V
Input voltage range (max.)	20-32 V DC (35 V)
Galvanic isolation	no
Stabilised	yes
Dimensions, hxwxd	89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch
Weight	0.25 kg 0.6 lb
Compliance	CE
Technical specifications
DC consumption	< 15 mA
Connections	fast-on
Temperature range (ambient temp.)	-25 °C to 80 °C, derating > 30 °C -13 °F to 176 °F
Cooling	natural cooling
Protection degree	IP53
