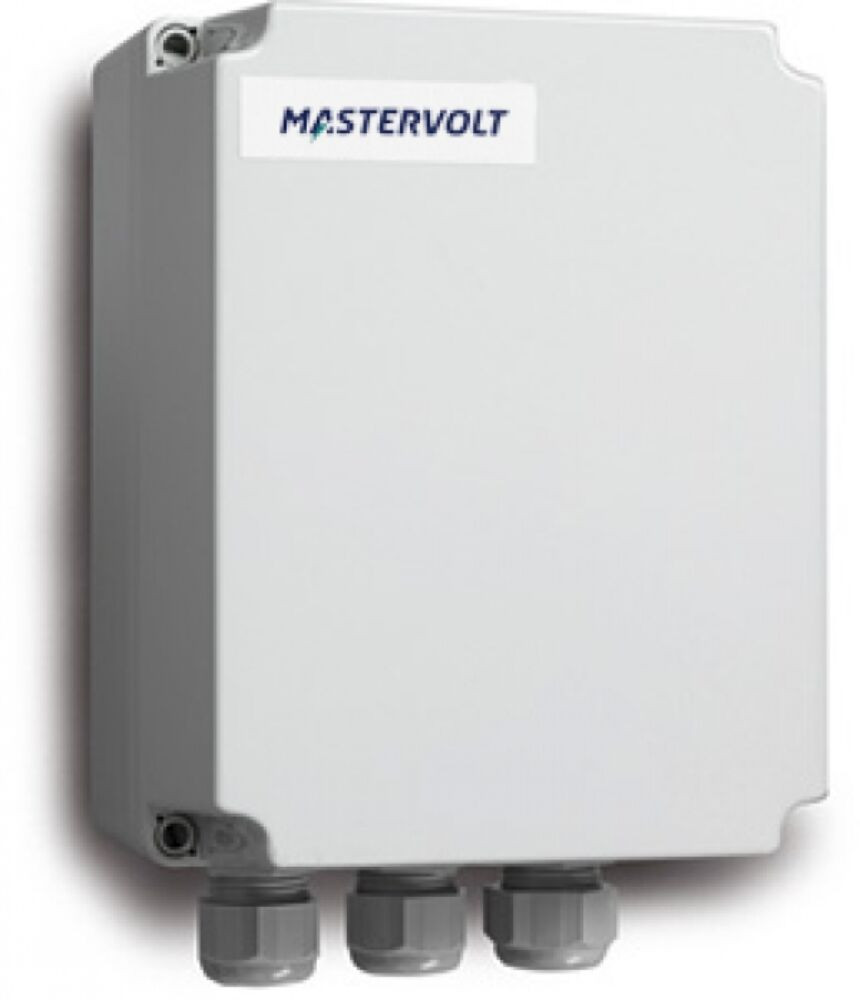

Mastervolt Masterswitch 7 kW (120 V)

Item number:
MVT-55106100
Mastervolt Masterswitch 7 kW (120 V)
Manufacturer:
MASTERVOLT
Manufacturer Article number:
55106100
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
In stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!
  • Two AC inputs, for example grid power and generator.
  • One outlet to AC power group.
  • Automatic switching.
  • Power transfer up to 25 kW, input/output from 20 to 125 A.
Bundle offers
  • Details
  • Data
  • Technical specification
  • Download User Manual
Details

Mastervolt Masterswitch 7 kW (120 V)

  • Two AC inputs, for example grid power and generator.
  • One outlet to AC power group.
  • Automatic switching.
  • Power transfer up to 25 kW, input/output from 20 to 125 A.
The Masterswitch Fuses version includes circuit breakers.



Data
Input voltage (DCV):
120
Output voltage (DCV):
120
Current (A):
60
Article number:
MVT-55106100
Number of outputs:
1
Website:
https://www.mastervolt.com/products/masterswitch/m...
Weight:
2.5 kg/db
Technical specification

Specifications


General specifications
Nominal input voltage 120 V (50/60 Hz)
Input voltage range 100-125 V
Number of inputs 2
Number of outputs 1
Dimensions, hxwxd 200 x 154 x 148 mm
7.9 x 6.1 x 5.8 inch
Weight 2.5 kg
5.5 lb

Technical specifications
Connection for remote control no
LED indication on enclosure no
Nominal input current generator 60 A
Nominal input current grid 60 A
Generator input switch no
Time delay generator input 0-10 sec (adjustable)
Nominal current generator output 60 A
Automatic circuit breakers no, system dependent
Power consumption (AC all inputs) 7 W
Power consumption (only inverter power) 0 W
Transfer time switch on 12-22 ms / switch off 4-19 ms
Temperature range (specified) -5 °C to 60 °C
23 °F to 140 °F
Temperature range (ambient temp.) -25 °C to 70 °C
-13 °F to 158 °F
Temperature range (storage/non operating) -60 °C to 80 °C
-76 °F to 32 °F
Relative humidity max. 95%, non condensing
Frequency watch no
Cable size 0.5-10 mm²/AWG 20-7
Protection degree IP55
MasterBus compatible no
