  1. Solar panel charger regulator
  1. Solar power system
  2. Mastervolt
  3. Solar panel charger regulator

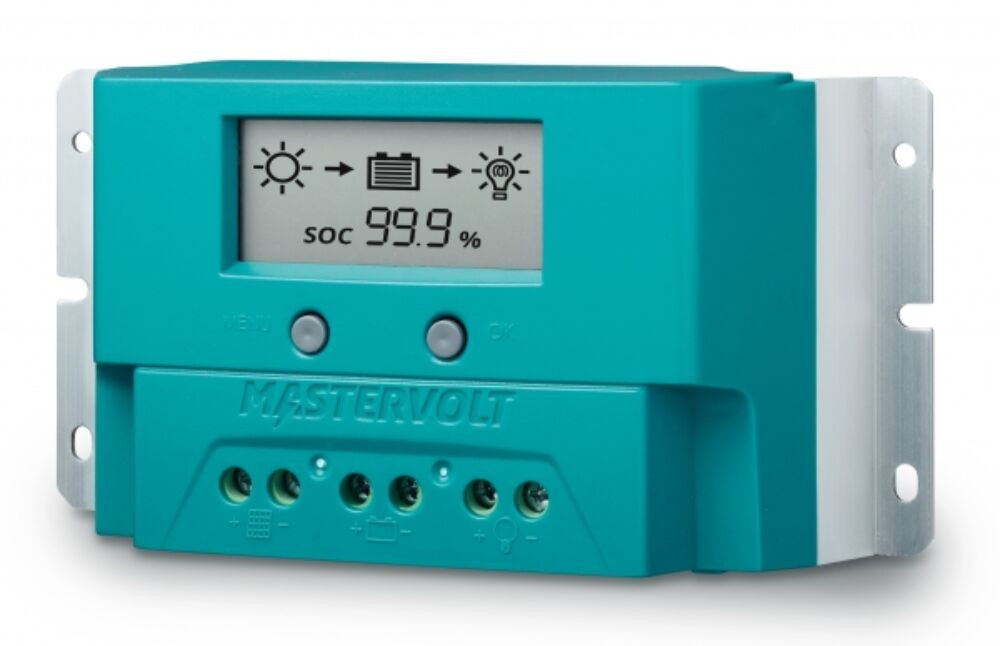

Mastervolt SCM40 PWM

Item number:
MVT-131824000
Mastervolt SCM40 PWM
Manufacturer:
MASTERVOLT
Manufacturer Article number:
131824000
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

This solar charge regulator based on PWM technology is a great solution to charge your batteries with solar energy. Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems).

Bundle offers
Related products
  • Details
  • Data
  • Technical specification
  • Download User Manual
Details

Mastervolt SCM40 PWM

This solar charge regulator based on PWM technology is a great solution to charge your batteries with solar energy. Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems). Its protection against water spray, suitability for high ambient temperature and compatibility with negative grounding, make it the perfect solar regulator for marine and mobile environments. Optionally, a temperature sensor is available.

Safe, user friendly, and flexible

The SCM40 PWM is suitable for all types of lead-acid batteries in both 12 V and 24 V. The device features a large display and switchable output with evening / night lighting function.

Data
Input voltage (DCV):
12/24
Output voltage (DCV):
12/24
Current (A):
40
Number of outputs:
2
Solar Energy Category:
Napelem töltő regulátor
IP rating:
IP23
Website:
https://www.mastervolt.com/products/solar-charge-c...
Weight:
500 g/db
Technical specification
Specifications battery charger
System voltage (battery) 12/24 V auto select
Nominal charge current 40 A
Battery types AGM, Gel, flooded
Battery temperature sensor optional, product code 41500500
Switchable output (max. current) 40 A
Energy consumption (night) < 7 mA
Specifications solar input (DC)
Panel type (12 V system) 36 cells
Panel type (24 V system) 72 cells
Max. PV current (Impp) 40 A
Recommended PV power (12 V system) 720 Wp
Recommended PV power (24 V system) 1440 Wp
General specifications
Cooling passive
Display/read-out backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
Grounding common negative grounding
Protection degree IP23
Dimensions, hxwxd 98 x 189 x 53 mm
3.9 x 7.4 x 2.1 inch
Weight 0.5 kg
1.1 lb
Technical specifications
Technology PWM (Pulse Width Modulation)
Temperature range (ambient temp.) -20 °C to 50 °C, derating power > 40 °C
-4 °F to 122 °F
Cable size max. 16 mm²
Protections over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
Relative humidity 95 % non-condensing
Download User Manual

Download User Manual
Download User Manual
