Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Price: 39 966 Ft
without VAT: 31 469 Ft+VAT (8 497 Ft)
  1. Solar panel charger regulator
  1. Solar power system
  2. Mastervolt
  3. Solar panel charger regulator

Mastervolt SCM20 PWM

Article No.:
MVT-131822000
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Mastervolt SCM20 PWM
Price: 39 966 Ft
without VAT: 31 469 Ft+VAT (8 497 Ft)
Manufacturer:
MASTERVOLT
Manufacturer Article number:
131822000
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
db
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

This solar charge regulator based on PWM technology is a great solution to charge your batteries with solar energy. Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems).

Csomagajánlatok
Additional products
  • Details
  • Info
  • Technical specification
  • Download User Manual
Details

Mastervolt SCM20 PWM

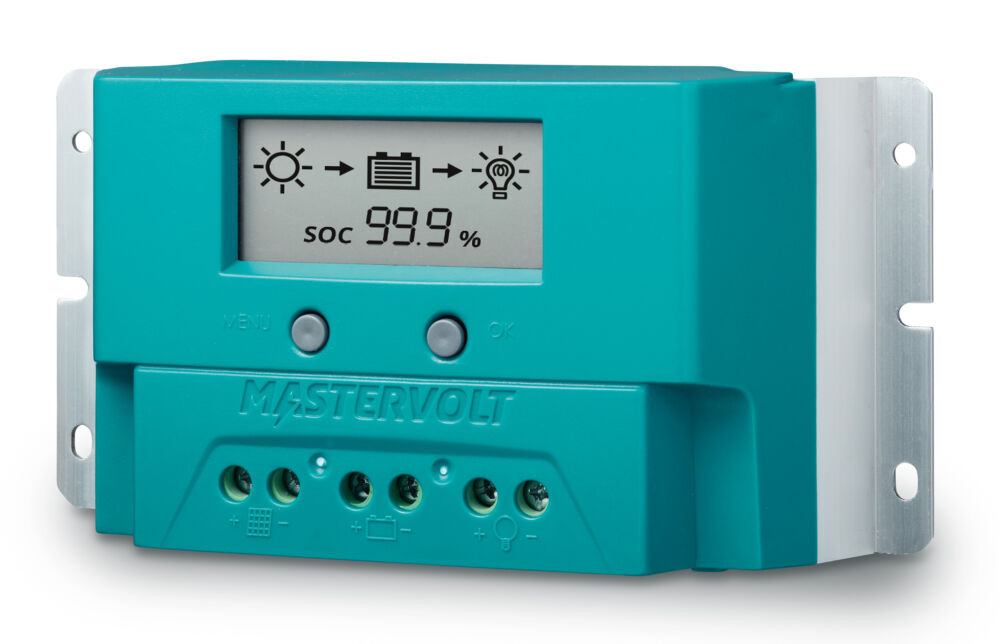

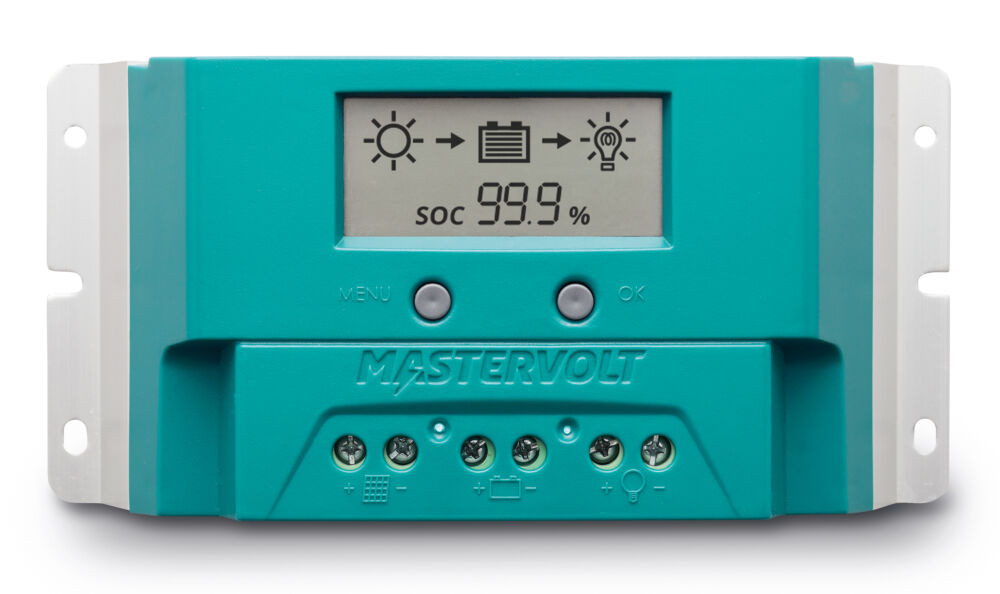

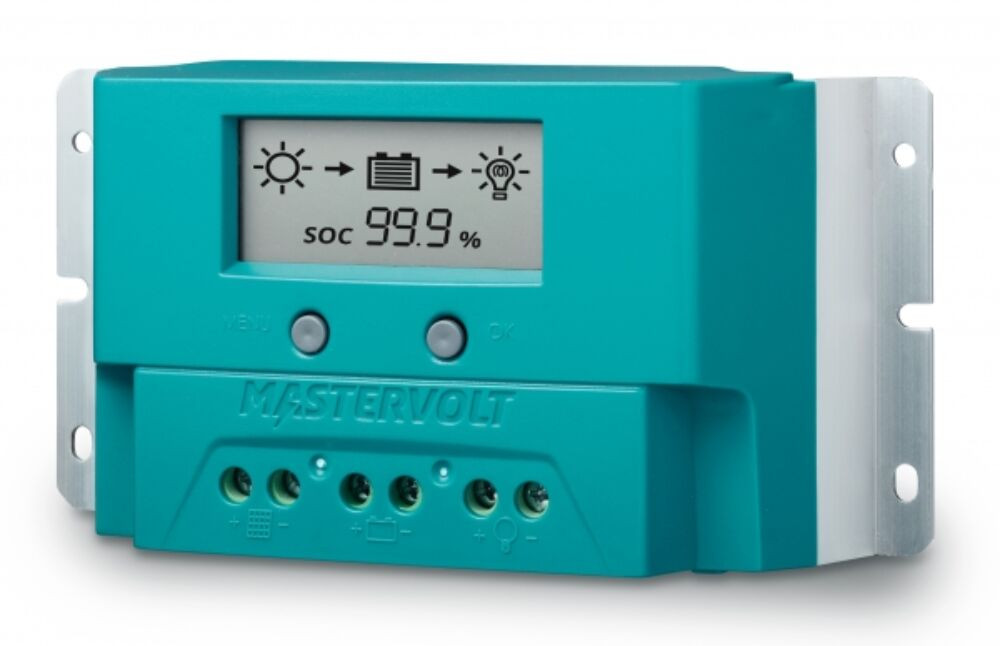

This solar charge regulator based on PWM technology is a great solution to charge your batteries with solar energy. Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems). Its protection against water spray, suitability for high ambient temperature and compatibility with negative grounding, make it the perfect solar regulator for marine and mobile environments. Optionally, a temperature sensor is available.

Safe, user friendly, and flexible

The SCM20 PWM is suitable for all types of lead-acid batteries in both 12 V and 24 V. The device features a large display and switchable output with evening / night lighting function.

Info
Input voltage (DCV):
12/24
Output voltage (DCV):
12/24
Current (A):
20
Number of outputs:
2
Solar Energy Category:
Napelem töltő regulátor
IP rating:
23
Website:
https://www.mastervolt.com/products/solar-charge-c...
Weight:
500 g/db
Technical specification
Specifications battery charger
System voltage (battery) 12/24 V auto select
Nominal charge current 20 A
Battery types AGM, Gel, flooded
Battery temperature sensor optional, product code 41500500
Switchable output (max. current) 20 A
Energy consumption (night) < 7 mA

Specifications solar input (DC)
Panel type (12 V system) 36 cells
Panel type (24 V system) 72 cells
Max. PV current (Impp) 20 A
Recommended PV power (12 V system) 360 Wp
Recommended PV power (24 V system) 720 Wp

General specifications
Cooling passive
Display/read-out backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
Grounding common negative grounding
Protection degree IP23
Dimensions, hxwxd 98 x 189 x 53 mm
3.9 x 7.4 x 2.1 inch
Weight 0.5 kg
1.1 lb

Technical specifications
Technology PWM (Pulse Width Modulation)
Temperature range (ambient temp.) -20 °C to 50 °C, derating power > 40 °C
-4 °F to 122 °F
Cable size max. 16 mm²
Protections over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
Relative humidity 95 % non-condensing
Download User Manual

Download User Manual
Download User Manual
