Marco VP45-K 24V Refuelling kit with 45 l/min vane pump

Csomagajánlatok

• Details
• Info
• Technical specification

Details

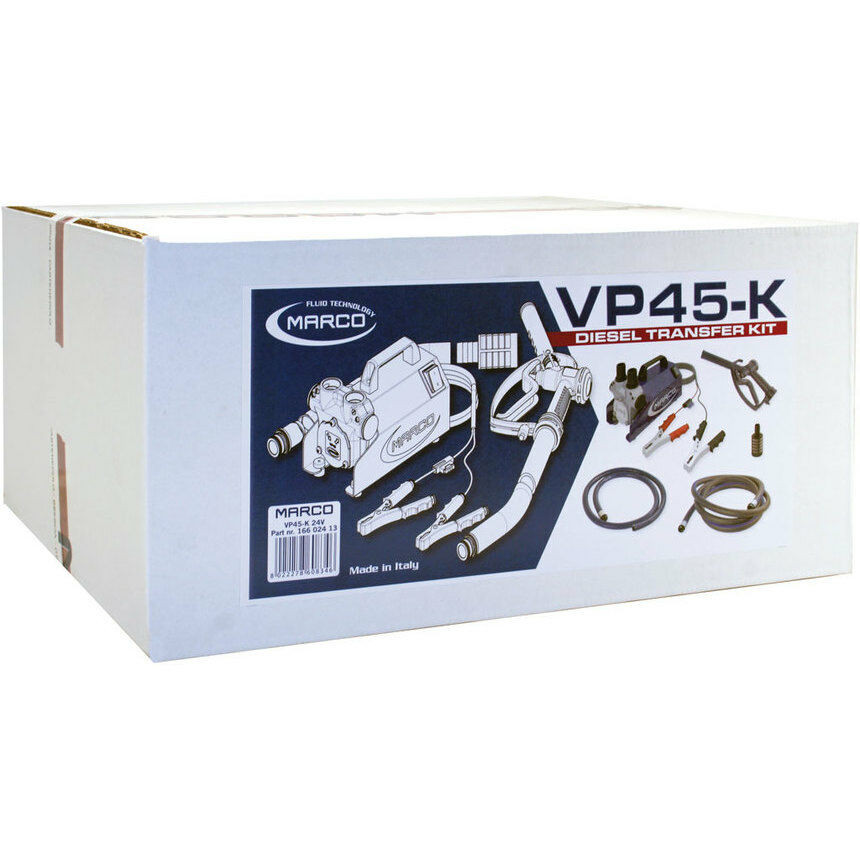

Marco VP45-K 24V Refuelling kit with 45 l/min vane pump

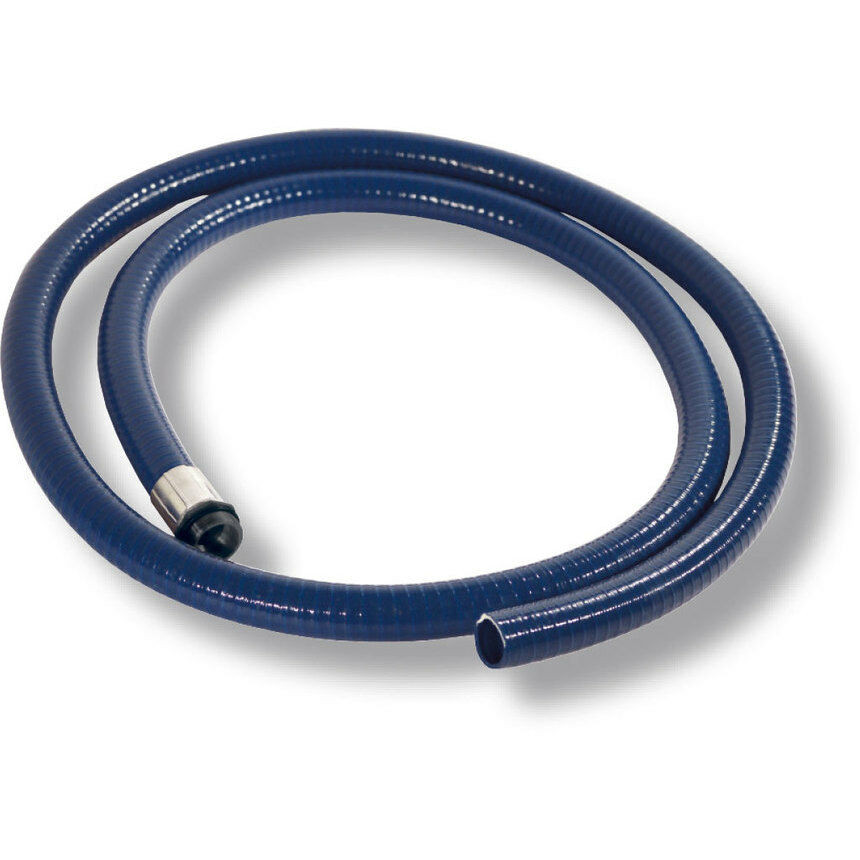

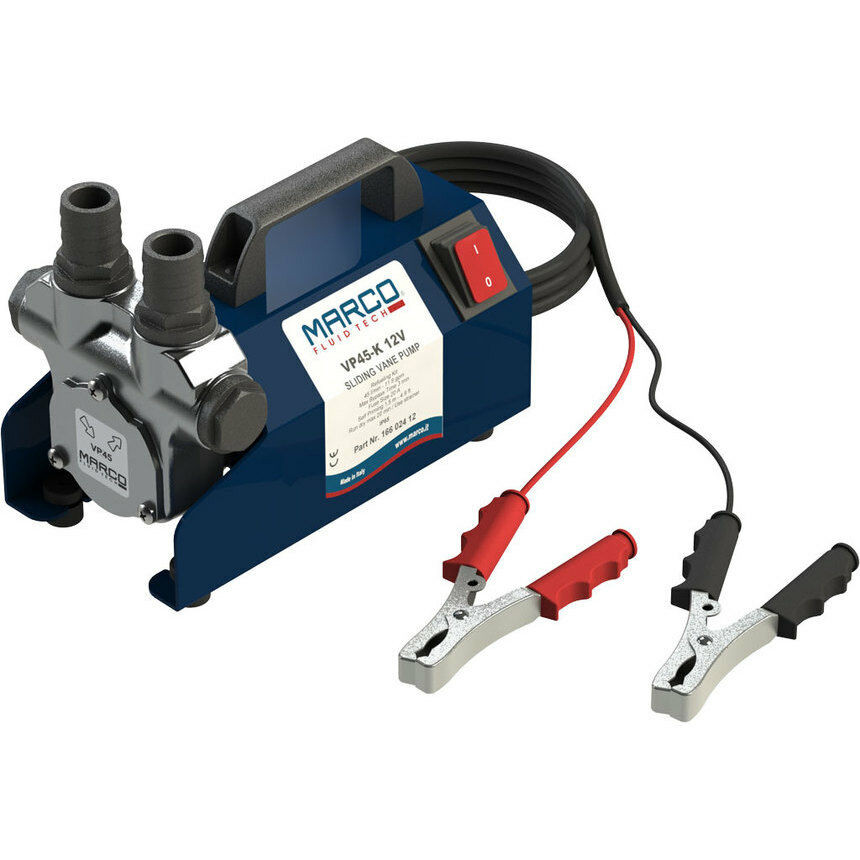

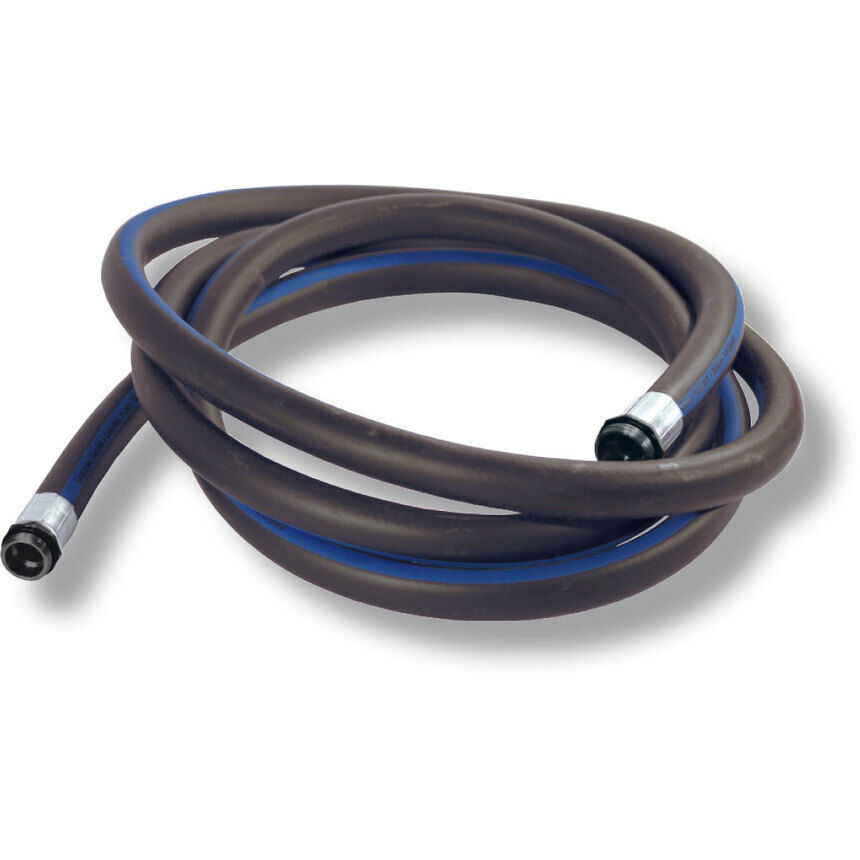

Kit for diesel refueling. Includes the vane pump with integrated by-pass valve and battery clips. Refueling gun, 2 m priming hose, 3 m delivery hose and intake filter.

Info

Input voltage (DCV):

24

Current (A):

4

Water flow (l/perc):

45

Power (W):

150

Pressure (atm):

1,2

Water system category:

Dízel transzfer pumpa

Hose (ID) (mm):

25

Website:

https://items.marco.it/en/vp45-k-refuelling-kit-wi...

Weight:

6.3 kg/db

Technical specification

Part n.	Product Name		Voltage (V)	Consumption (A)	Fuse (A)	Self-priming (m)	Flow rate (l/min)	Pressure (bar)	Ports (BSP)	Hose (ID) (mm)	IP Protection	Motor power (W)	Weight (kg)
16602412	VP45-		12	8	20	2	45	1,2	3/4"	25	55	150	6,3
16602413	VP45-K		24	4	10	2	45	1,2	3/4"	25	55	150	6,3
