Marco UP6/E 24V 3,5 bar high pressure, electronic water pressure pump 26 l/min

Csomagajánlatok

• Details
• Info
• Technical specification

Details

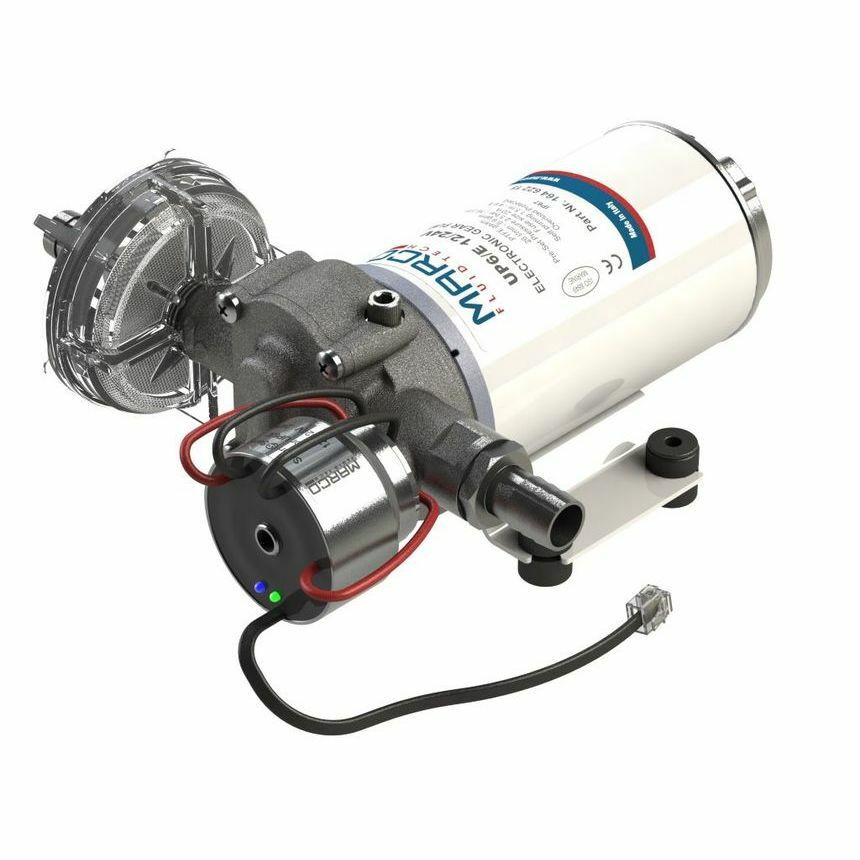

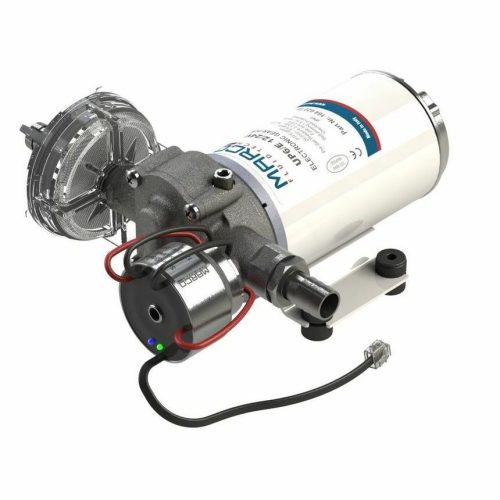

Marco UP6/E 24V 3,5 bar high pressure, electronic water pressure pump 26 l/min

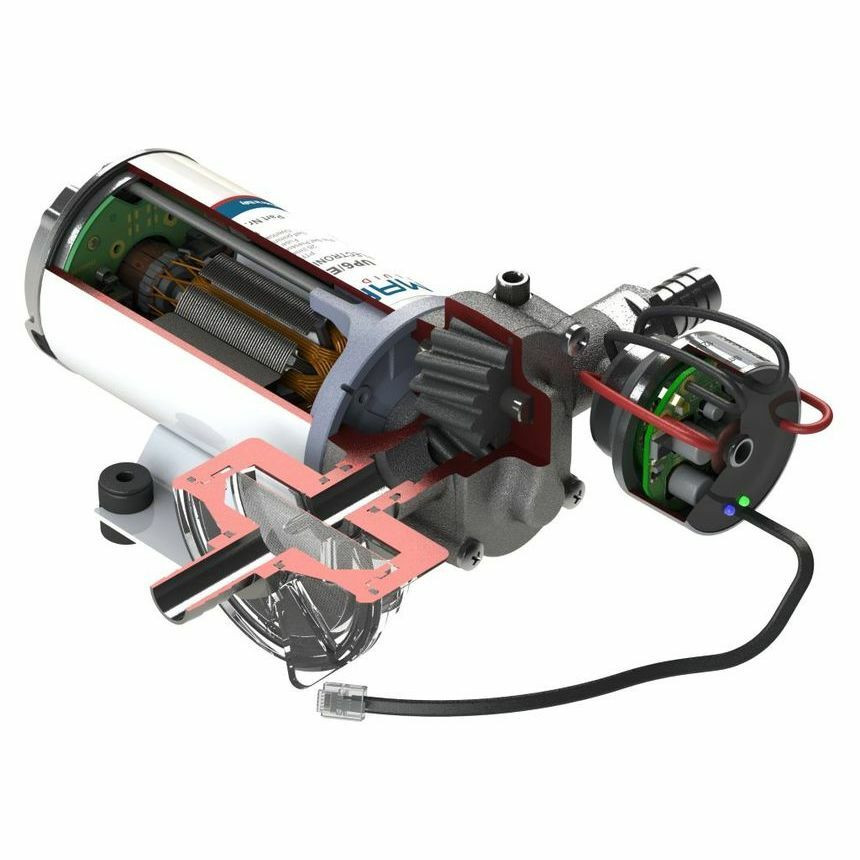

Self-priming automatic electric pump with helical PEEK gears, integrated check valve and electronic control. Nickel-plated brass body and stainless steel shaft. Main applications: fresh water pressure systems and shower kits on boats, rubber dinghies, sailing boats and campers. Available also with control panel.

Info

Input voltage (DCV):

24

Water flow (l/perc):

26

Power (W):

180

Pressure (atm):

3,5

Water system category:

Vízszivattyú

Electrical control:

Igen

IP rating:

IP67

Hose (ID) (mm):

16

Website:

https://items.marco.it/en/up6-e-electronic-water-p...

Weight:

3.7 kg/db

Technical specification

Part n.	Product Name		Voltage (V)	Consumption (A)	Fuse (A)	Self-priming (m)	Flow rate (l/min)	Pressure (bar)	Ports (BSP)	Hose (ID) (mm)	IP Protection	Motor power (W)	Weight (kg)
16462213	UP6/E		24	5	10	1,5	26	3,5	1/2"	16	67	180	3,7
16462215	UP6/E		12/24	10 / 5	20	1,5	26	2,5	1/2"	16	67	180	3,7
