Garmin Reactor™ 40 Steer-by-wire Corepack for Yamaha® Helm Master® With GHC™ 50 Autopilot Instrument

Designed for Yamaha Helm Master systems, this Reactor 40 autopilot steer-by-wire corepack gives you the extra hand you need, so you can explore paradise worry-free.

  This Reactor 40 steer-by-wire corepack is the perfect companion for your Yamaha Helm Master system.

  Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.

  Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.

  You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.

  Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.

  Want more? The optional GHC^™ 50 autopilot instrument enhances your autopilot experience.

Plot your paradise.

COREPACK COMPATIBILITY

This corepack works with yachts that have a Yamaha Helm Master system, and it requires a compatible Garmin chartplotter.

SOLID-STATE 9-AXIS AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.

REACTS TO WATER CONDITIONS

Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

SIMPLE CALIBRATION

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

WIRELESS REMOTE CAPABILITIES

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix^® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).

Connect to everything on your boat.

OPTIONAL GHC 50 BUNDLE

Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

POWERBOAT AND SAILING FEATURES

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+^™ features¹.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

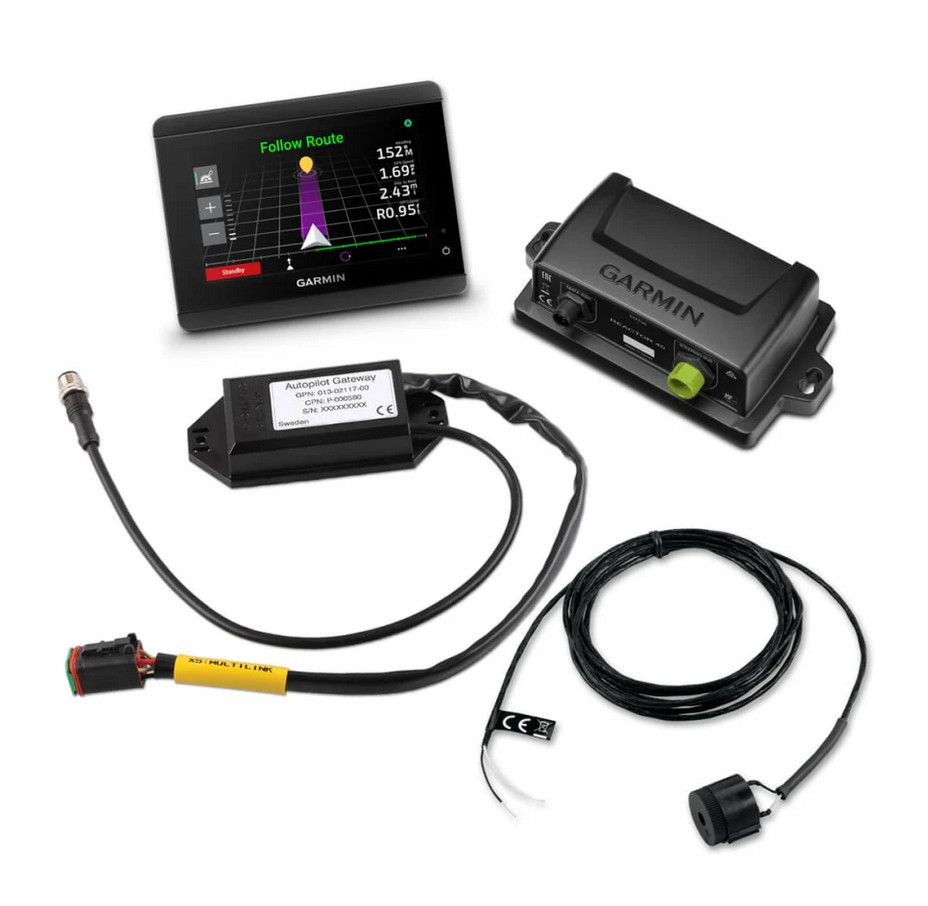

In the box:

• Reactor 40 CCU (Course Computer Unit)
• GHC^™ 50 helm control display
• Yamaha Gateway
• CCU cable
• Buzzer
• NMEA 2000^® drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation

Info

Article number:

GMN-010-02794-04

Network Protocol:

NMEA2000

Website:

https://www.garmin.com/en-US/p/878076/pn/010-02794...

Technical specification

CCU Specifications

• Dimensions: 3 19/32" diameter (91.4 mm)
• Weight: 5.6 oz (159 g)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5 ft (3 m)
• NMEA 2000 power input: 9-16V
• NMEA 2000 LEN: 3 (150 mA)

GHC 50 Specifications

Buzzer/Alarm Specifications

• Dimensions (L × Diameter): 29/32" × 1" (23 mm × 25 mm)
• Weight: 2.4 oz (68 g)
• Temperature range: from 5°F to 131°F (from -15°C to 55°C)
• Cable length: 10 ft (3.0 m)

Autopilot Gateway Specifications

• Dimensions (L × Diameter): 5 1/8" × 2 3/8" x 1" (130 mm × 60 mm x 25 mm)
• Weight: Less than 1 oz (28 g)v
