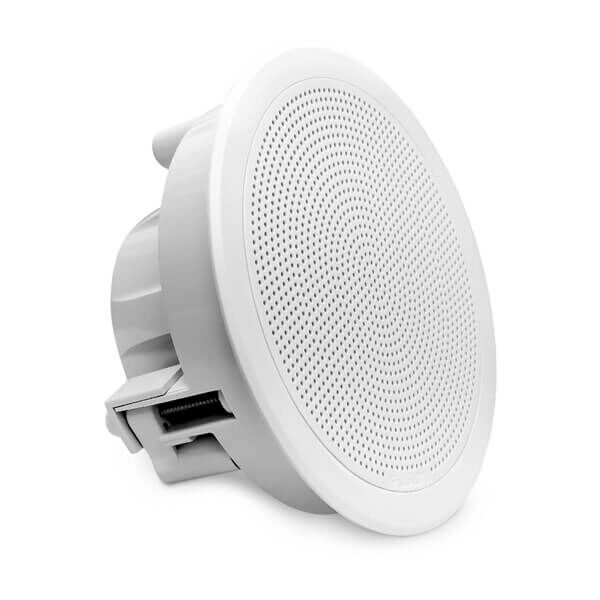

Garmin Fusion® FM Series 6.5" 120-Watt Round White Flush-Mount Marine Speaker
Manufacturer:
GARMINFUSION
Manufacturer Article number:
010-02299-00
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
The Fusion FM Series speakers are engineered to deliver quality acoustics to your boat and have a sleek and minimalistic aesthetic to match modern boat design trends.
Bundle offers
Garmin Fusion® FM Series 6.5" 120-Watt Round White Flush-Mount Marine Speaker
The Fusion FM Series speakers are engineered to deliver quality acoustics to your boat and have a sleek and minimalistic aesthetic to match modern boat design trends.
Innovative flush mount design for a sleek and minimalistic finish.
Low profile, near flat installation with a mounting profile of just 3/32” (2.5 mm).
The aluminum dome tweeter provides smooth upper frequency response and increased efficiency.
With an increase in real power, the voice coil provides a high quality audio experience.
The speakers are available in 6.5” and 7.7” designs with a round or square form factor.
Engineered to last season after season, the speakers include a 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the FM Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the FM Series speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The FM Series speakers incorporate high-quality materials and marine-specific design elements. This not only ensures their enhanced aesthetics, but also their capability to reproduce high-quality audio while out on the water.
Engineered for high-quality acoustics.
INJECTION-MOLDED POLYPROPYLENE CONE
By using a water-resistant IMPP cone, the speaker is more robust, which allows for clean, clear audio reproduction.
ALUMINUM DOME TWEETER
The aluminum dome tweeter provides smooth upper frequency response and increased efficiency, which delivers crystal clear music reproduction.
OVERHUNG VOICE COIL
The overhung design reduces distortion and increases power and efficiency to deliver a truly high quality audio experience.
FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers improved frequency response at the crossover point and a detailed audio spectrum for a new level of acoustic performance.
OPEN BASKET CONSTRUCTION
The optimized open back design allows for extended power handling and versatile mounting options.
Enhanced aesthetics to match modern boat design trends.
INNOVATIVE FLUSH MOUNT DESIGN
The FM Series speakers are designed to be flush mounted with a mounting profile no thicker than 3/32” (2.5 mm) for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series speakers to blend in seamlessly with your boat.
NON-INTRUSIVE MOUNTING SYSTEM

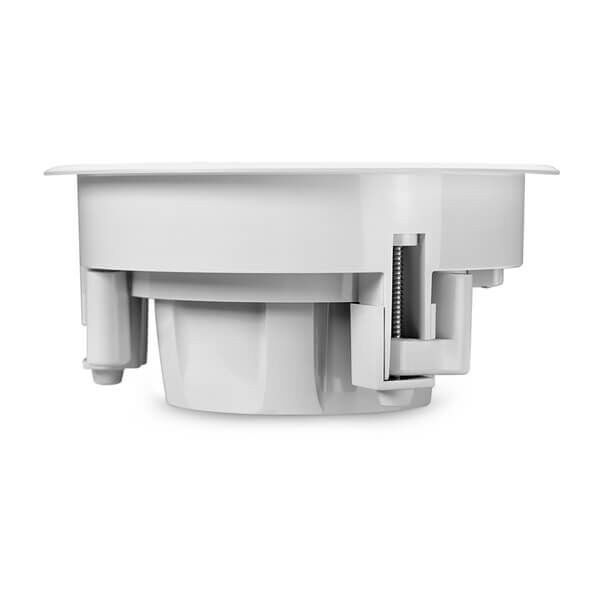

The FM Series speakers feature an intelligent mounting system. Simply place the speaker into the cutout, tighten the screws and the speaker legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.
Choose a style to match your boat.

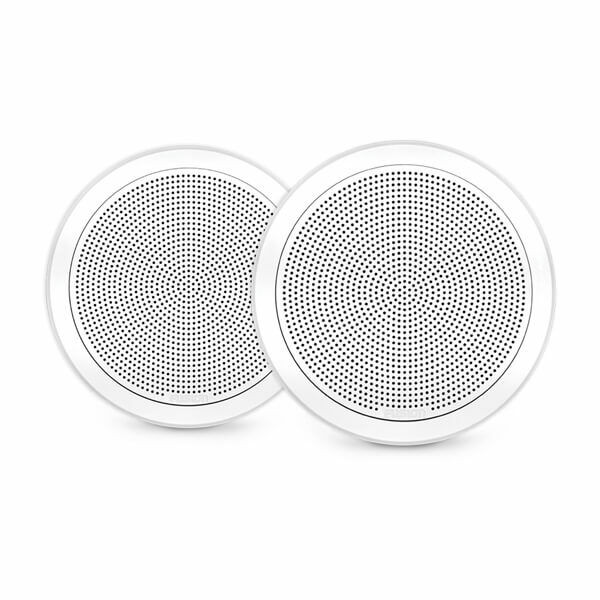

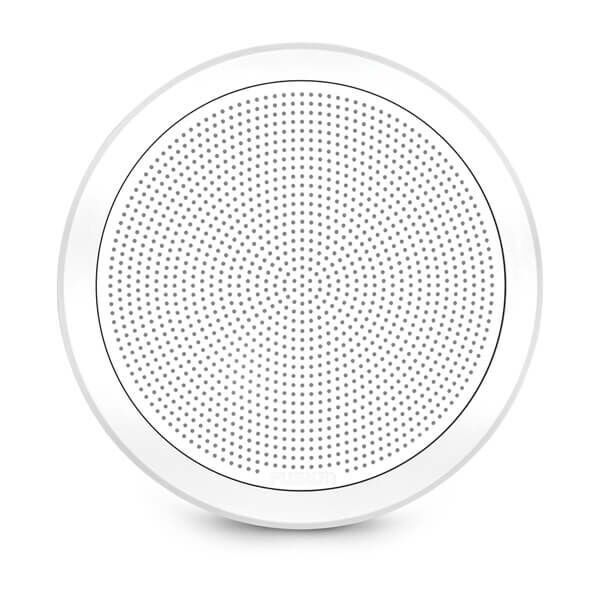

ROUND WHITE SPEAKERS
The FM Series round white speakers are available in 6.5” and 7.7” sizes with classic white grilles for an elegant, timeless finish.
ROUND BLACK SPEAKERS
The FM Series round black speakers are available in 6.5” and 7.7” sizes with classic black grilles for a seamless, timeless finish.
SQUARE WHITE SPEAKERS
The FM Series square white speakers are available in 6.5” and 7.7” sizes with classic white grilles for an elegant, modern finish.
SQUARE BLACK SPEAKERS
The FM Series square black speakers are available in 6.5” and 7.7” sizes with classic black grilles for a seamless, modern finish.
In the box:
- One pair of speakers (based on what you select)
- Documentation
Power (W):
120
Number of inputs:
1
Colour:
Fehér
Waterproof:
Igen
Speaker size:
6.5"
Entertainment electronics:
Audio
IP rating:
IP65
Weight:
2.1 kg/db
General |
|
| Physical dimensions | 7.7" Round (Diameter x Depth): 7.13" x 3.26" (181 x 82.9 mm) 7.7" Square (WxHxD): 7.13" x 7.13" x 3.26" (181 x 181 x 82.9 mm) 6.5" Round (Diameter x Depth): 6.02" x 2.74" (153 x 69.6 mm) 6.5" Square (WxHxD): 6.02" x 6.02" x 2.74" (153 x 153 x 69.6 mm) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | 7.7": FM-F77RW/FM-F77RB/FM-F77SW/FM-F77SB 6.5": FM-F65RW/FM-F65RB/FM-F65SW/FM-F65SB |
| Peak power (Watts) | 7.7": 200 W 6.5": 120 W |
| RMS power (Watts) | 7.7": 50 W 6.5": 30 W |
| Sensitivity (1 W / 1 m) | 7.7": 91 dB 6.5": 87 dB |
| Frequency response | 7.7": 80 Hz - 18 kHz 6.5": 100 Hz - 18 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 7.7": 20 - 150 W/Ch 6.5": 15 - 80 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 7.7": 1.18" 6.5": 1" |
| Cone material | 7.7": Polypropylene cone with cloth surround 6.5": Polypropylene cone with rubber surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 7.7": 114.2" (290 cm) 6.5": 96.5" (245 cm) |
| Warranty | 3 years |
Mounting Dimensions |
|
| Mounting diameter clearance | 7.7" Round: 6.50" (165 mm) 7.7" Square: 6.50" x 6.50" (165 x 165 mm) 6.5" Round: 5.43" (138 mm) 6.5" Square: 5.43" x 5.43" (138 x 138 mm) |
| Mounting depth clearance | 7.7": 3.27" (83 mm) 6.5": 2.76" (70 mm) |
Optimum Enclosure Recommendations |
|
| Size | 7.7": 0.28 cubic ft (8 L) 6.5": 0.14 cubic ft (4 L) |
