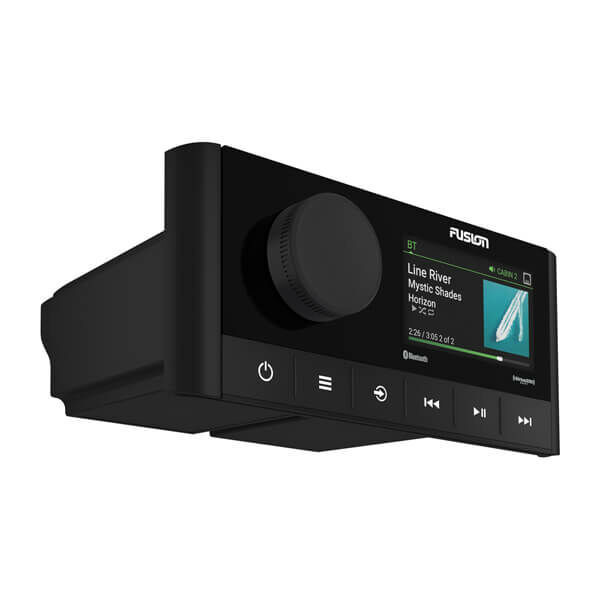

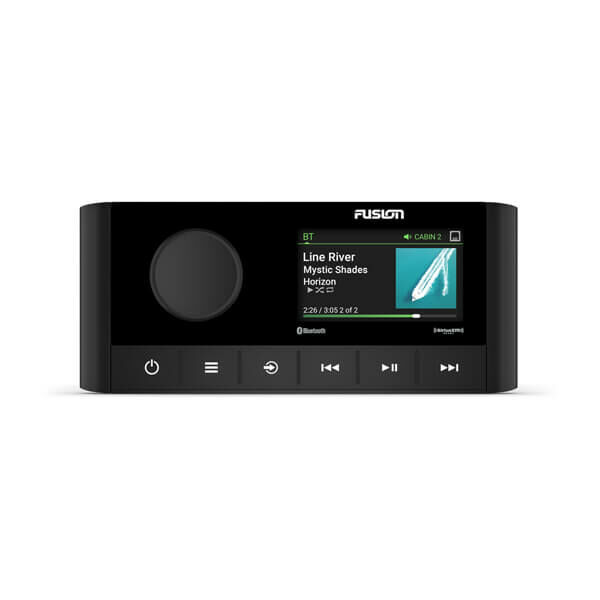

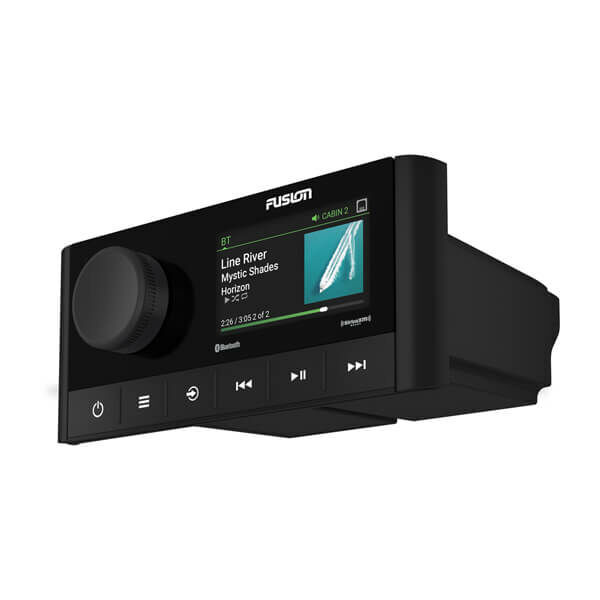

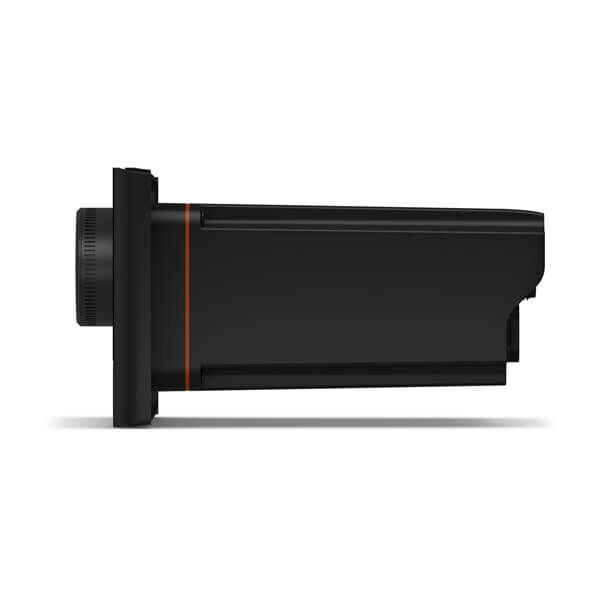

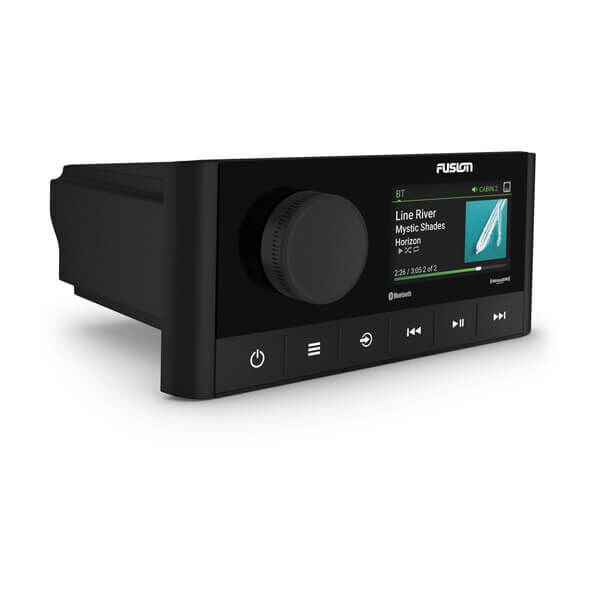

Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Price: 191 431 Ft
without VAT: 150 733 Ft+VAT (40 698 Ft)
  1. Head unit
  1. Entertainment Electronics
  2. Fusion
  3. Head unit

Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)

Article No.:
GMN-010-02250-00
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Garmin Fusion® MS-RA210 Marine Stereo, (Tengeri zenelejátszó)
Price: 191 431 Ft
without VAT: 150 733 Ft+VAT (40 698 Ft)
Manufacturer:
GARMINFUSION
Manufacturer Article number:
010-02250-00
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
db
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in Digital Signal Processing (DSP) technology, modern design aesthetics and advanced source options.

Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User manual
Details

Garmin Fusion® MS-RA210 Marine Stereo

The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in Digital Signal Processing (DSP) technology, modern design aesthetics and advanced source options.



   Custom audio profiles for each zone on your boat deliver superior quality audio.

   Enjoy the color album art and metadata that display information of the current track playing.

   Built-in Class-D amplifier delivers higher efficiency and greater output.

   Multi-Zone™ Technology gives you control of two separate audio zones.

   Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.





alt text

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

SPEED VS. VOLUME

With your stereo connected to an NMEA 2000® network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.



EASY-TO-INSTALL DSP PROFILES

Setting up your DSP profiles is made simple with the free Fusion-Link™ app1. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.



Enjoy more audio source options than ever before.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including BLUETOOTH® technology, DAB+ radio, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE

Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.



1 Requires app on your compatible smartphone

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.



In the box:

  • Fusion MS-RA210 marine stereo
  • Mounting gasket
  • Four 6-gauge, self-tapping screws
  • Two screw covers
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • 2 meter (6 ft) NMEA 2000® drop cable
  • 6 ft (2 meter) NMEA 2000 drop cable
  • Documentation
Info
Input voltage (DCV):
12
Current (A):
15
Power (W):
200
Network Protocol:
NMEA2000
Wireless Protocol:
Bluetooth/ANT
Wired Protocol:
USB
Audio, video protocol:
Audio
Number of outputs:
6
Number of inputs:
2
Colour:
Fekete
Waterproof:
Nem
Entertainment electronics:
Audio
Zone:
2
Website:
https://www.garmin.com/en-US/p/667552/pn/010-02250...
Weight:
1.26 kg/db
Technical specification

General

Dimension 6.18" x 2.68" x 4.99" (156 x 68 x 126.6 mm)
Display 2.7" optically bonded color LCD
Weight

0.77 lbs (350 g)

Water rating IPX6 and IPX7 (front panel only, when properly installed)
Operating temperature 32° to 122° F (0° to 50° C)
Current (max) 15 A

Networking

NMEA 2000® LEN 1 (50 mA)
BLUETOOTH® wireless range up to 30 ft (10 meters)
ANT® wireless range Up to 10 ft (3 meters)
Wireless frequencies/protocols BLUETOOTH®: 2.4 GHz @ +12 dBm nominal
ANT®: 2.4 GHz @ +7 dBm nominal

Audio

Amplifier Class-D (4 ohm)

Stereo Features

Peak power 200 watts
Rated power output (4 ohm) 26 watts RMS x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing (DSP) yes (with custom DSP profile setup using Fusion-Link™ app)
Fusion-Link™ control yes (MFD, smart device and Garmin watch)
Multi-Zone™ technology 2 zones
BLUETOOTH® wireless technology yes
ANT® wireless technology yes
SiriusXM-ready yes
DAB+ ready yes
Supports NRX wired remote yes
Multi-language interface

Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish

Software updates USB
Warranty 1 year

Sources

Supported sources

AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, MTP



SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)



DAB+ ready (available in Europe and Australia only)

Connections

Auxiliary inputs (RCA) 1
NMEA 2000® ports 1
USB 2.0 ports 1
SiriusXM ports 1
AM/FM ports (Motorola antenna connector) 1
Speaker connections 4 (2 zone amplified)
RCA pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out 2 (L + R per zone, requires external amplification)
Subwoofer out 2 (1 mono output per zone, requires external amplification)

Electrical Features

Power Input 10.8 - 16 VDC
Compass-safe distance 5.9" (150 mm)
