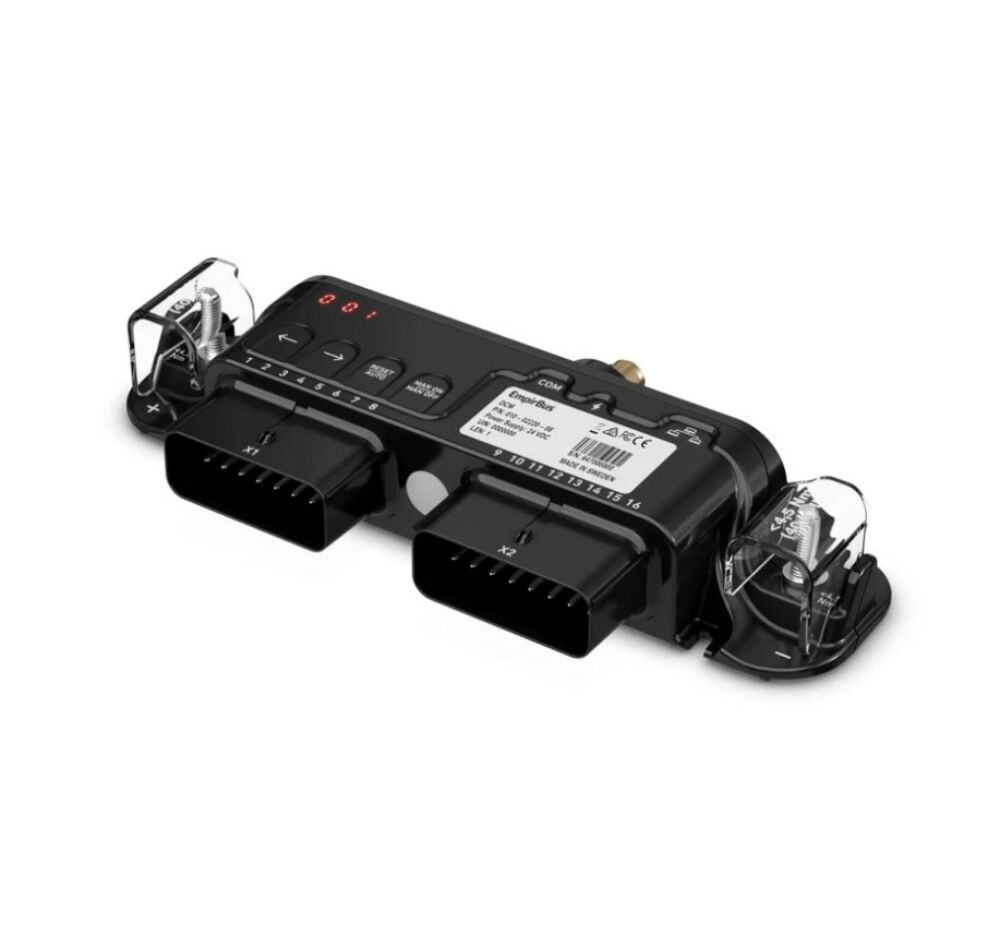

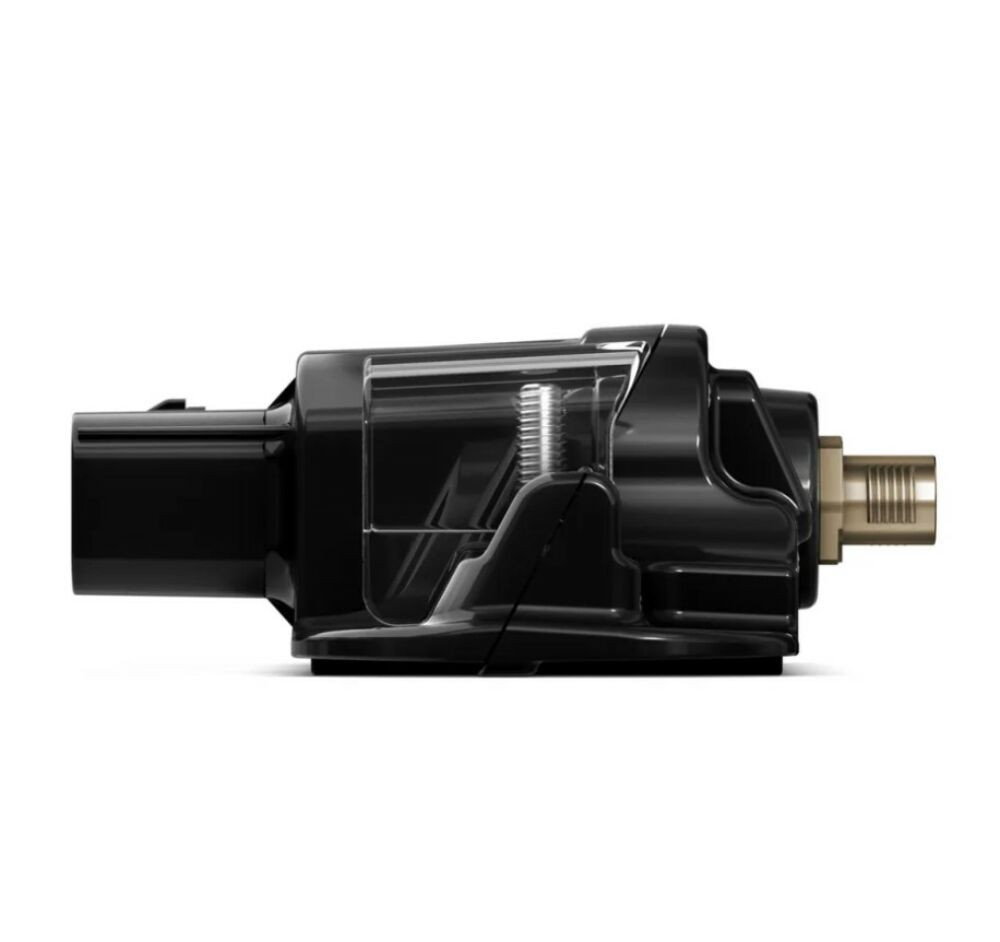

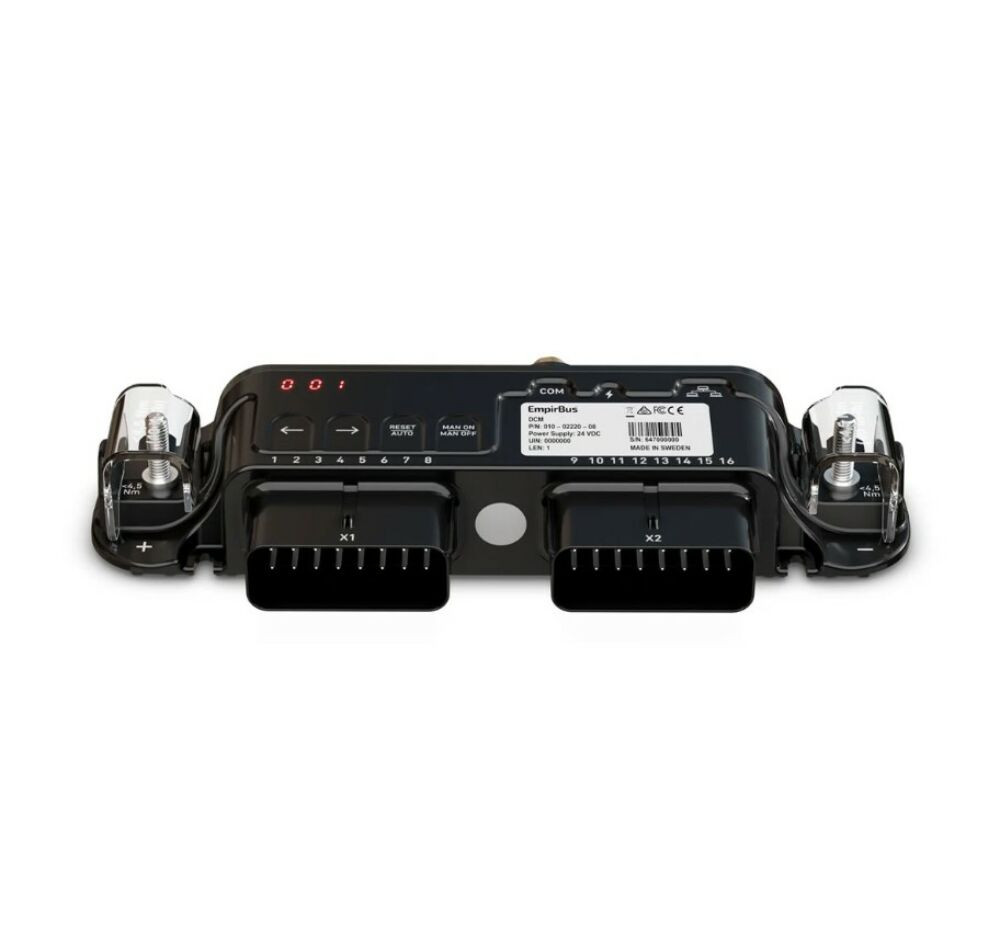

Garmin EmpirBus™ NXT DCM

An EmpirBus digital switching system comprises one or more compact digital DCMs. The DCM supports multiple circuits that are customized to meet the exact needs of the equipment being controlled. Each DCM connects to the existing NMEA 2000^® network backbone, enabling it to communicate with the other DCMs and Garmin MFDs via a web display unit on the Garmin Marine Network.

With multiple input capabilities and ranges, the NXT DCM device is an extremely versatile and cost-effective means to provide full control of your vessel. It has a small footprint and is easy to install and service.

All output channels are electronically protected and feature undercurrent protection as well as soft stop/start. The channels are capable of being electronically dimmed and of driving complex loads such as LED lighting or windscreen wipers directly.

Info

Input voltage (DCV):

9/16

Network Protocol:

NMEA2000

Number of outputs:

20

Number of inputs:

17

Waterproof:

Nem

Digital Switching System category:

Digital Switch

Communications protocol:

CAN-bus, NMEA 2000

Website:

https://www.garmin.com/en-US/p/660145/pn/010-02220...

Weight:

400 g/db

Technical specification

General
Dimensions(WxHxD) (unit only)	9.1" x 4.2" x 1.5" (230 x 106 x 38 mm)
Weight (unit only)	14.1 oz (400 g)
Ambient temperature	-20° C to +55° C
Enclosure water rating	IP65
Communication	CAN-bus NMEA 2000® network, LEN-0
Output
High side	13 ch 10A, 7 ch 5A
Digital Input
Ground contact switch input	15
Bilge pump monitor	2
Analog Input
Volt	3 @ 0-16 V +/-1%
Resistance	2 @ 0-1500 ohm +/- 5%
Power Supply
Maximum current	50A
Power off current consumption	60mA
Supply voltage (12V)	9-16VDC
Connector
NMEA 2000®	Micro 5-pin M12 male
Channels	Molex MX150 L 16 circuits
Power terminal	M6 bolt
