Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Price: 378 345 Ft
without VAT: 297 910 Ft+VAT (80 436 Ft)
  1. Garmin OnDeck™ Hub
  1. Remote monitoring
  2. Garmin
  3. Garmin OnDeck™ Hub

Garmin OnDeck™ Hub

Article No.:
GMN-010-02134-00
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Garmin OnDeck™ Hub
Video

Price: 378 345 Ft
without VAT: 297 910 Ft+VAT (80 436 Ft)
Manufacturer:
GARMIN
Manufacturer Article number:
010-02134-00
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
db
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Track, monitor and control any number of switches you need with the OnDeck system, a fully integrated remote connectivity solution.
Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User manual
Details

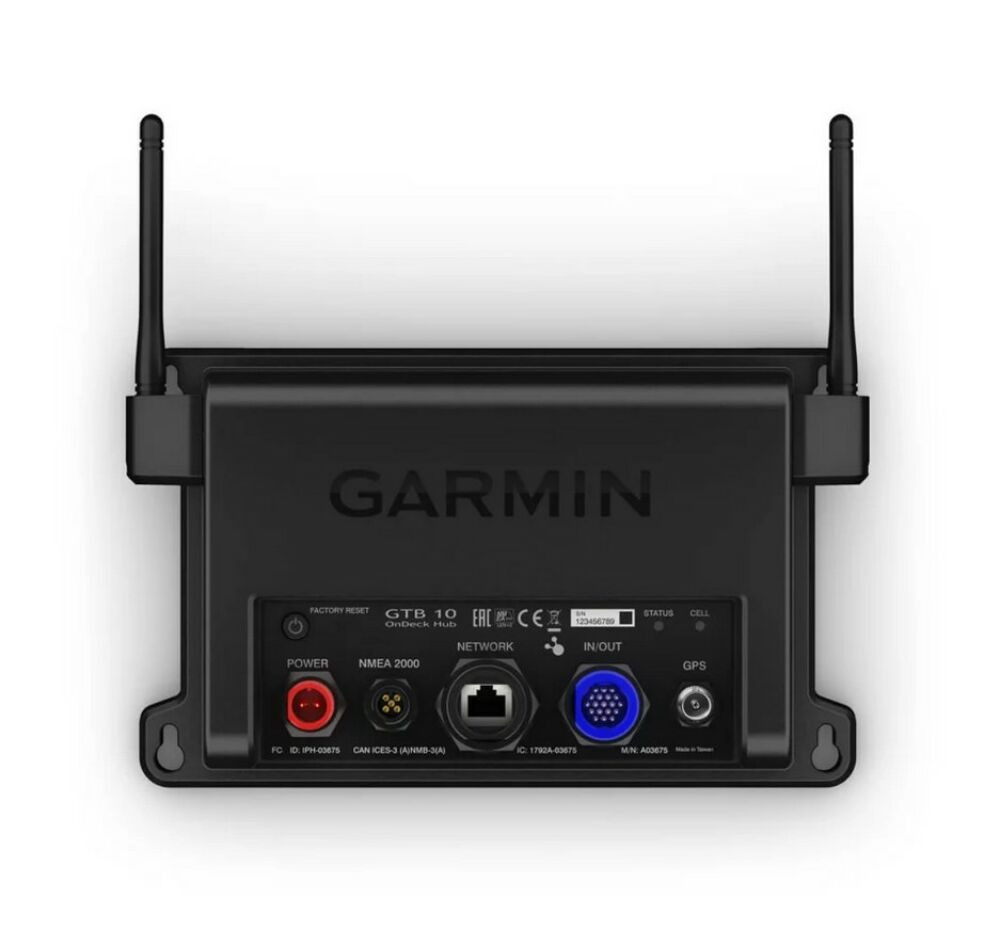

Garmin OnDeck™ Hub

Track, monitor and control any number of switches you need with the OnDeck system, a fully integrated remote connectivity solution1.

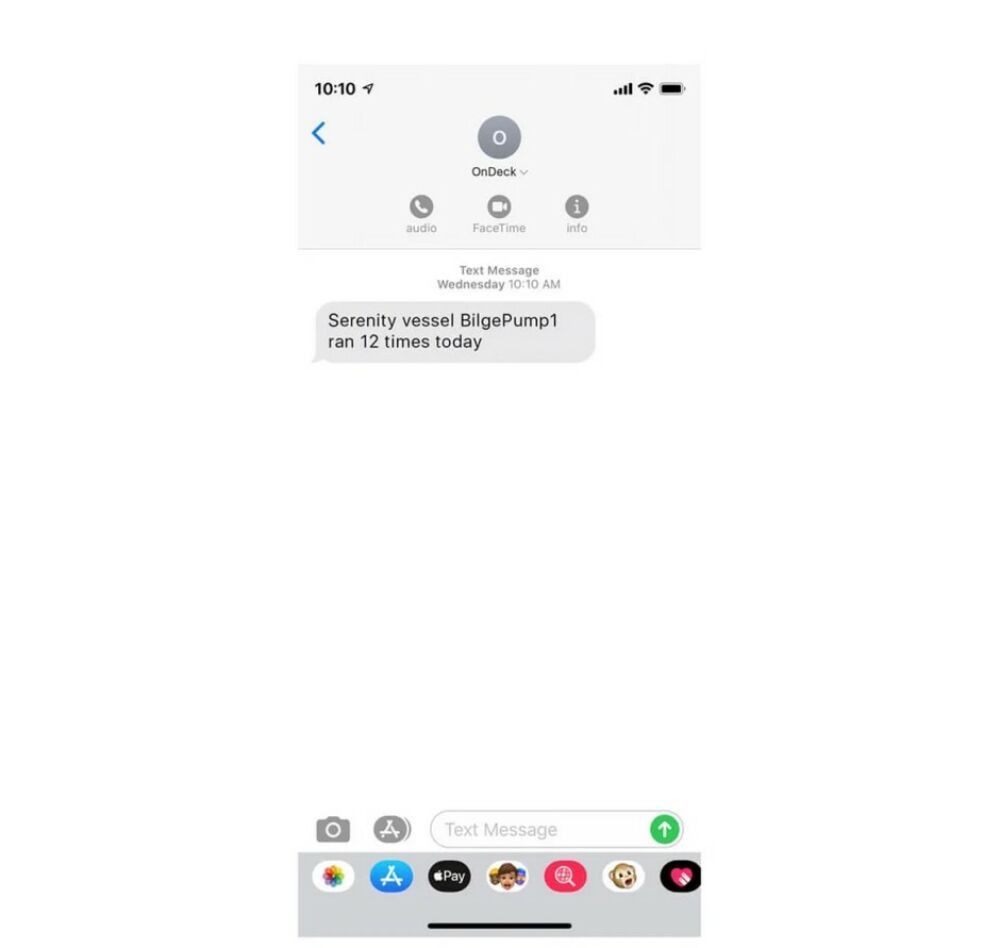

    Door open? Bilge running? Peace of mind comes in the form of text alerts and updates.

     New features, same app. ActiveCaptain® keeps you connected to your boat1.

     The always-on OnDeck connection has the potential to keep you in contact from just about anywhere.

      To protect your passion, you must have a plan. An active subscription is required.



TRACK

Be the first to know if a security sensor has been triggered, or if your boat has been moved. The internal GPS sensor updates every 15 or 30 minutes — depending on power status — and will send text alerts1 if your boat leaves the geofenced area.

MONITOR

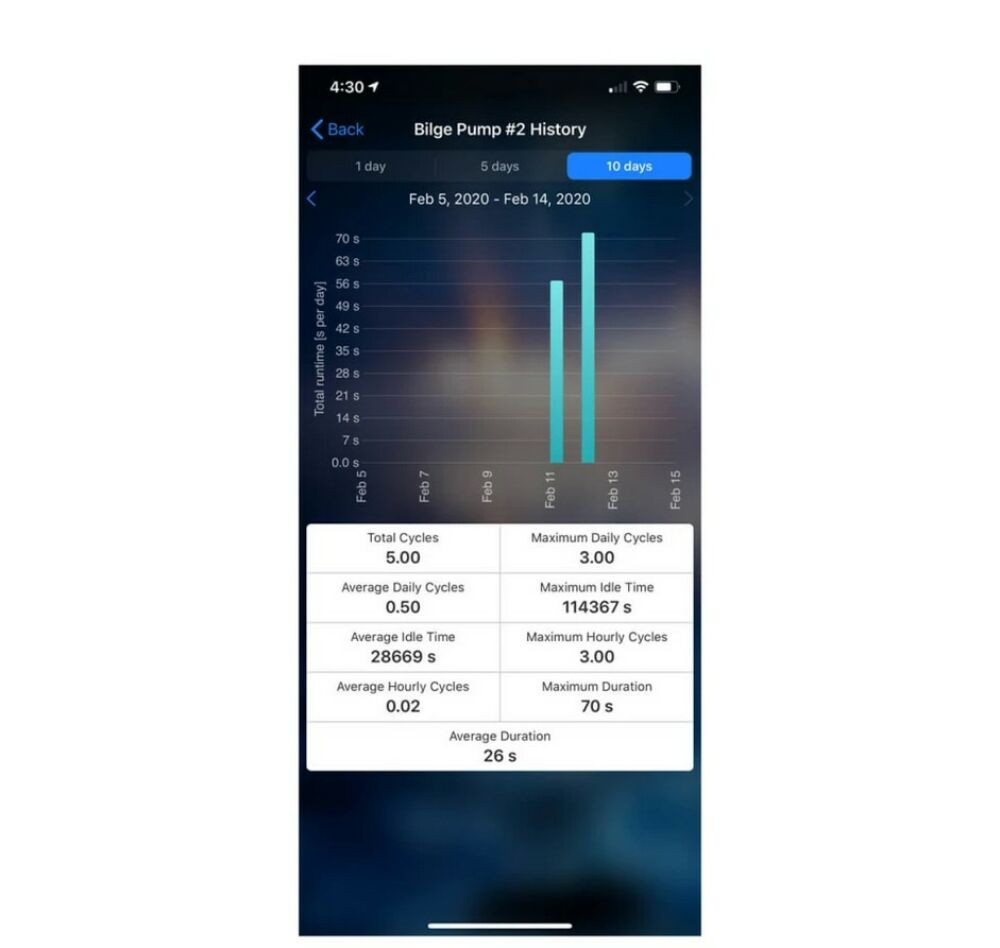

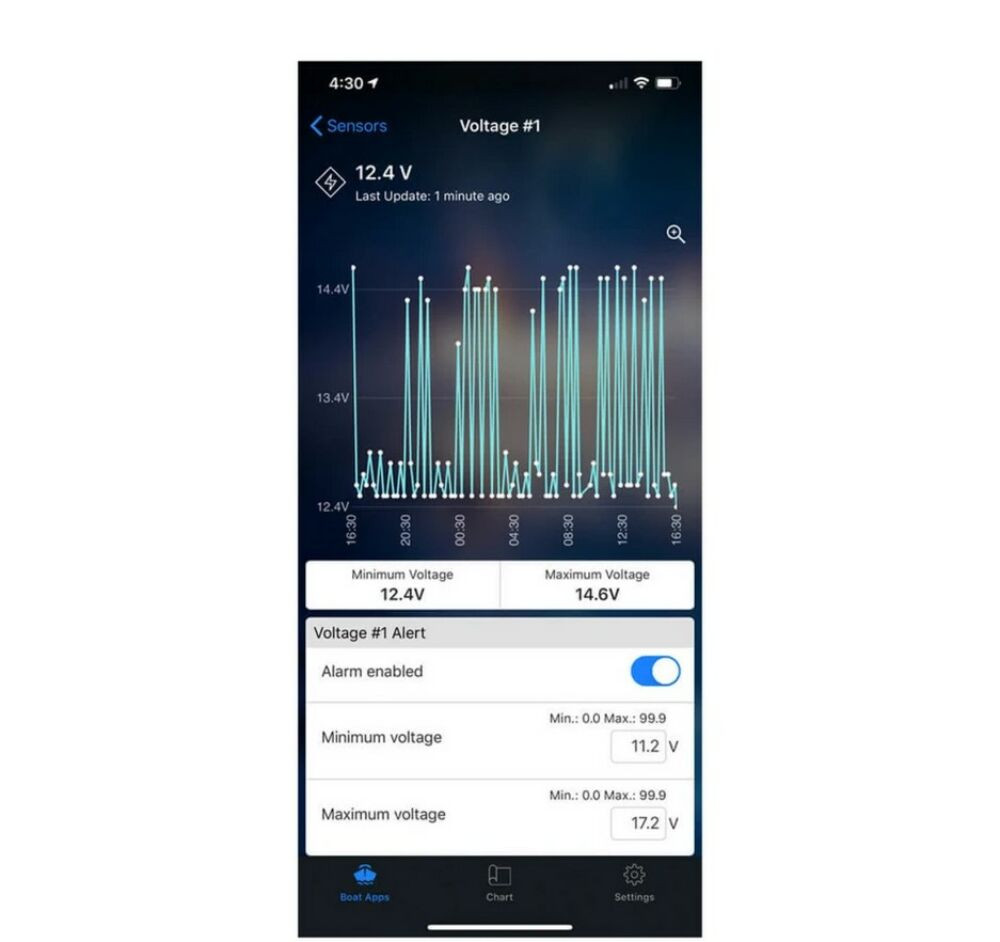

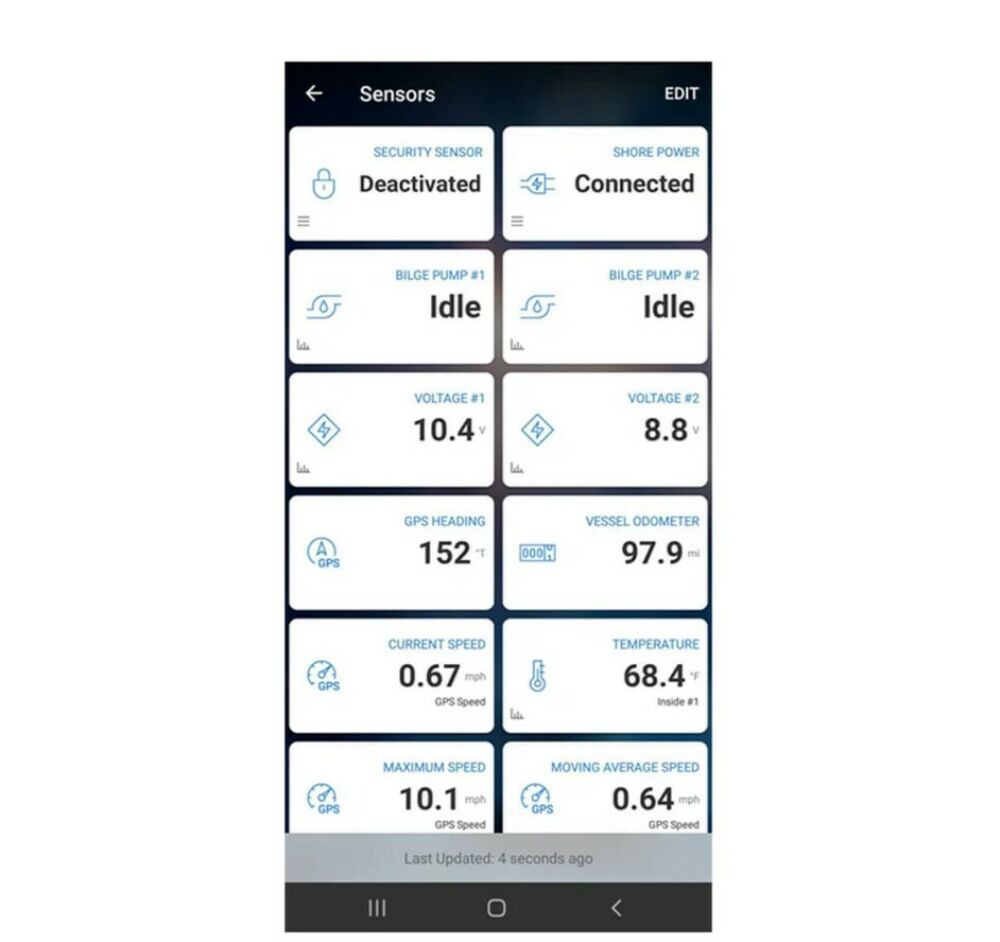

Get updates1 on your boat’s battery status, bilge activity, shore power, temperature changes and more. Set up alarm notifications in the ActiveCaptain app.

CONTROL

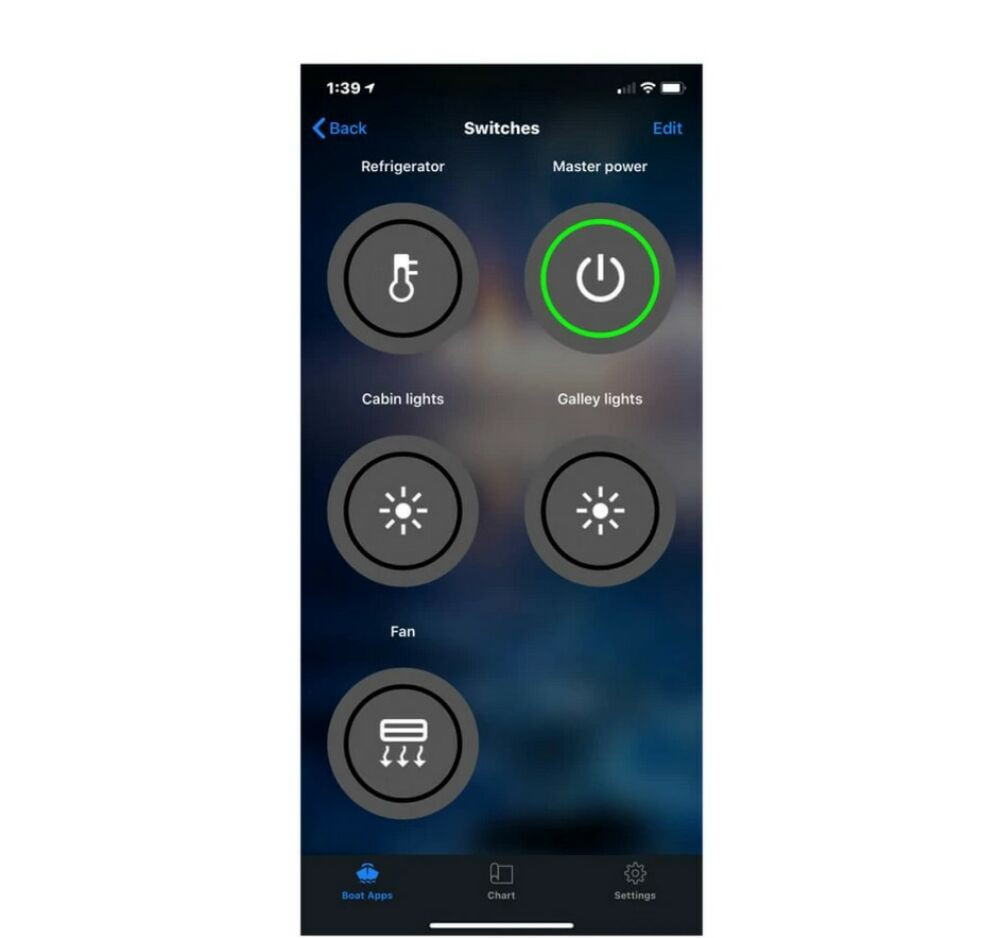

Take command of your boat. Remotely control up to five relay switches directly from the OnDeck Hub and the ActiveCaptain app for critical onboard systems, including battery chargers, ice makers and more. You can also control as many switches as you need with NMEA 2000 momentary or latching switch support via EmpirBus digital switching or other third-party interfaces.



ACTIVECAPTAIN APP

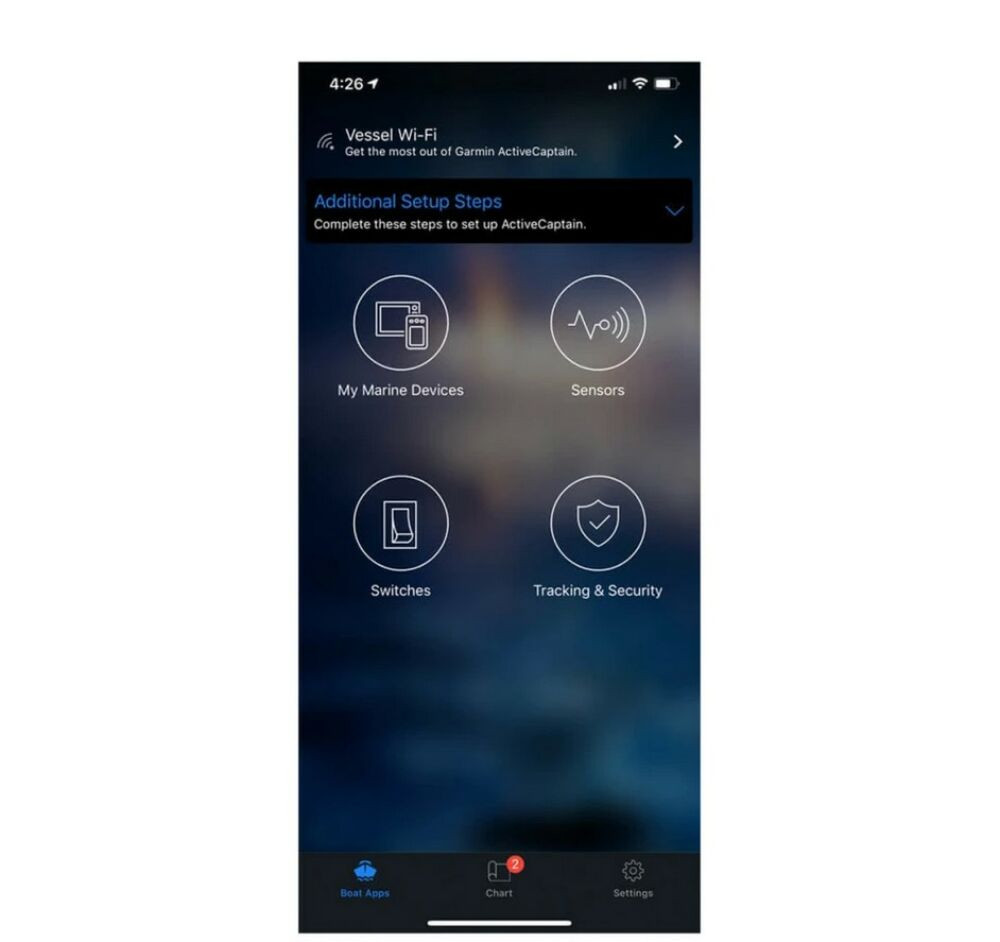

Download the ActiveCaptain app to your compatible smartphone to manage your vessel. It’s where you can set up alarm notifications, take control of your boat and so much more1.

STORE DATA

Securely collect vessel data with the OnDeck Hub, and store it in the cloud for up to 30 days.

ALWAYS-ON CONNECTION

The hub uses 3G/4G coverage.

BACKUP BATTERY

An internal backup battery allows access to the OnDeck Hub for up to 48 hours after the boat battery is depleted or the power is disconnected.

SUBSCRIPTION

To stay in touch with your vessel, an active subscription plan is required. Choose an annual plan, or pay month-to-month.

FULL INTEGRATION

The OnDeck system is a seamless addition to your current marine electronics (MFD via Garmin Marine Network, engines, NMEA 2000® network sensors).



1 An active subscription plan is required. Both OnDeck Hub and user’s compatible smartphone or tablet must have connectivity via Wi-Fi® or 3G/4G (or above) network.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.



In the box:

  • OnDeck Hub
  • OnDeck™ security sensor
  • OnDeck™ temperature sensor
  • OnDeck™ shore power sensor
  • OnDeck™ relay switch 12 Vdc
  • Power cable
  • In/out data cable (19-pin), sensor/relay output
  • Garmin Marine Network cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
Info
Input voltage (DCV):
10-32
Network Protocol:
NMEA2000
Wireless Protocol:
Wi-fi/GSM
Wired Protocol:
Garmin-net/J1939/NMEA0183
Audio, video protocol:
Audio
Battery life:
48 óra
Website:
https://www.garmin.com/en-US/p/634370/pn/010-02134...
Weight:
640 g/db
Technical specification
GENERAL
Physical dimensions without antennas 9.1" x 1.9" x 5.6" (23.1 x 4.9 x 14.2 cm)
Physical dimensions with antennas pointing up 9.1" x 5.2" x 5.6" (23.1 x 13.2 x 14.2 cm)
Physical dimensions with antennas parellel to mounting 9.1" x 1.9" x 8.5" (23.1 x 4.9 x 21.5 cm)
Weight 1.4 lbs (0.64 kg)
Power consumption 20 W max at 10 Vdc
Input voltage range From 10 to 32 Vdc
Battery life Up to 48 hours
Monitoring frequency 15 minutes
CONNECTIVITY
NMEA 2000® compatible yes
ActiveCaptain compatible yes
Cellular connectivity yes (3G/4G)
Wi-Fi® yes
Garmin Marine Network yes
SENSORS
Bilge pump yes (2)
Security yes (30)
Battery voltage yes (2)
Temperature yes
Shore power yes
GPS location yes
Distance log yes
NMEA 2000 SENSORS
Fluid level yes
Temperature yes
Water depth yes
Position yes
Course over ground yes
Speed over ground yes
Vessel speed yes
Wind data yes
Fuel flow rate yes
Engine hours yes
Engine warning indicators yes
DC Voltage yes
SWITCH CONTROLS
Relay switch yes (5)
ALARMS
Temperature yes
Geofence yes
Offline yes
Voltage yes
Shore power yes
Security sensor yes
Depth yes
Bilge pump yes
