Garmin GPSMAP 8412xsv, Worldwide (Chartplotter)

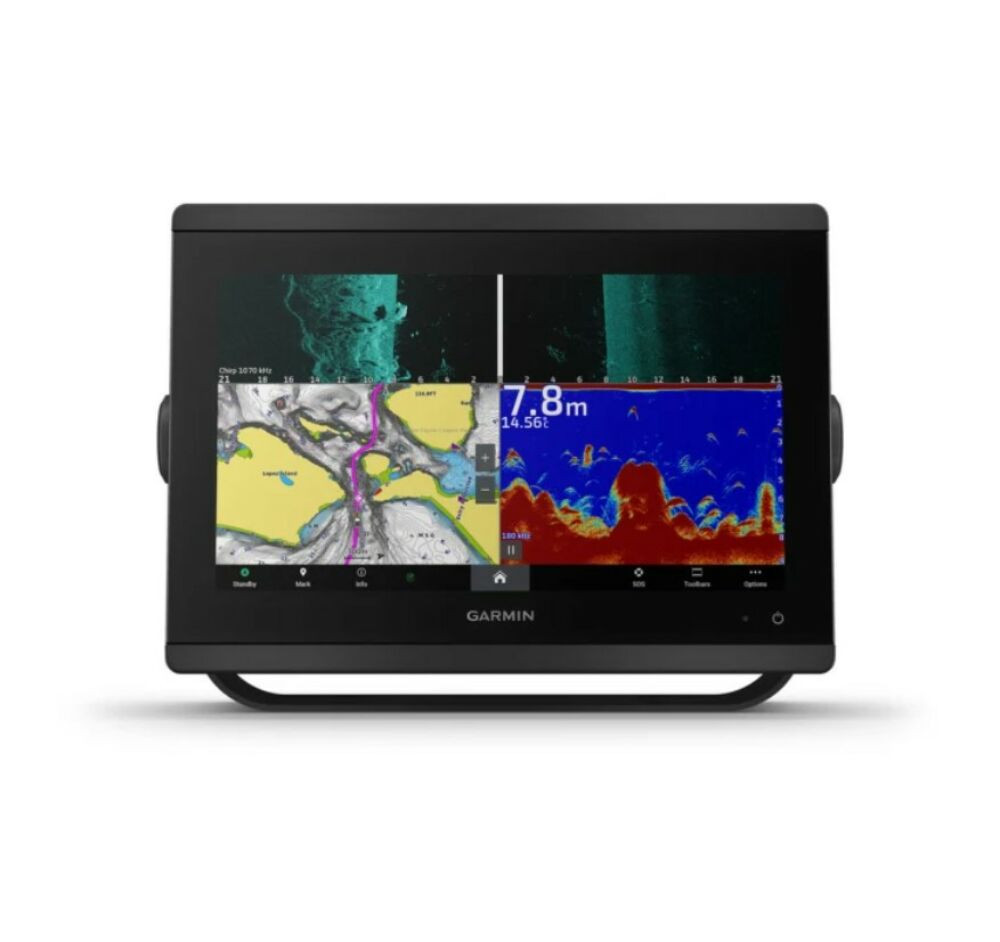

Garmin GPSMAP® 8412xsv

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

   Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.

    Navigate confidently with built-in Garmin Navionics+^™ inland and coastal mapping¹.

    Easily build your marine system using the best of network connectivity.

    See below and around your boat with built-in sonar capabilities (transducers sold separately).

    From ANT^® technology to Wi-Fi^® networking, there are countless ways to connect to your system.

    With SmartMode^™ station controls, everything is designed to give you quick, one-touch access to the information you need.

HD IPS TOUCHSCREEN

Available in sizes from 10” to 24”, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

GRID^™ 20 REMOTE CONTROL

The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.

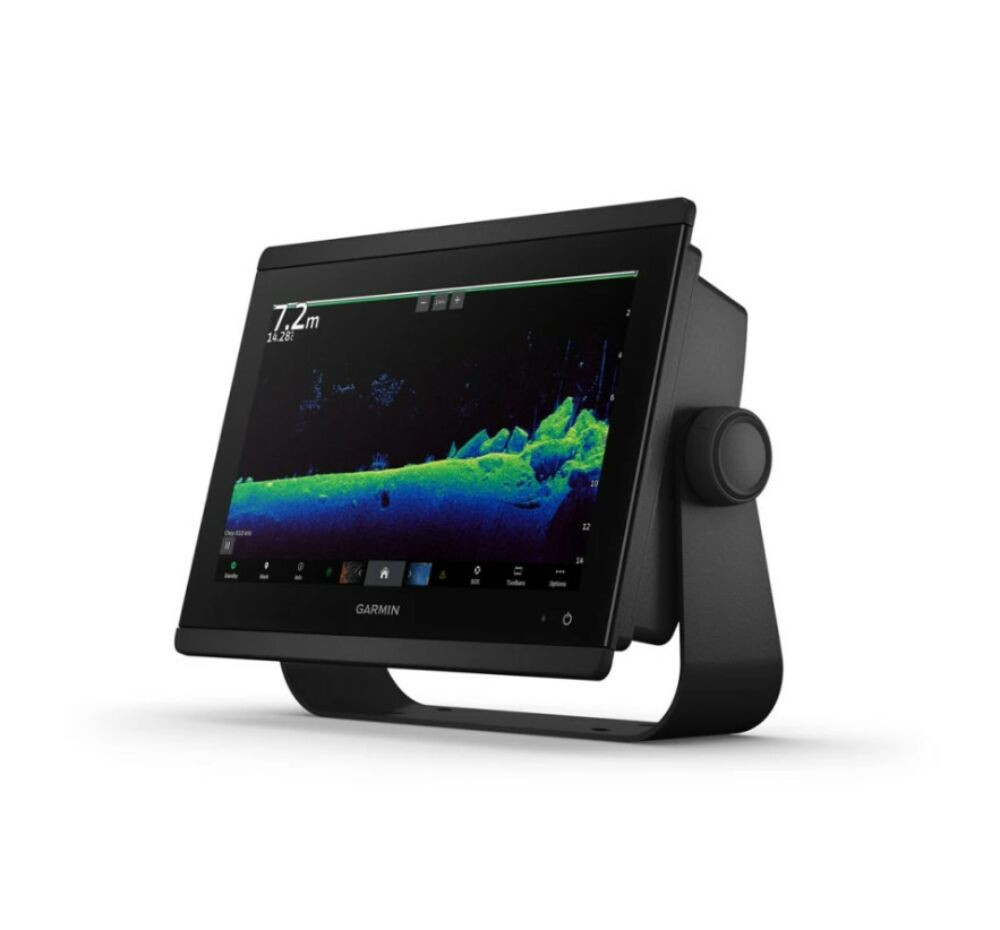

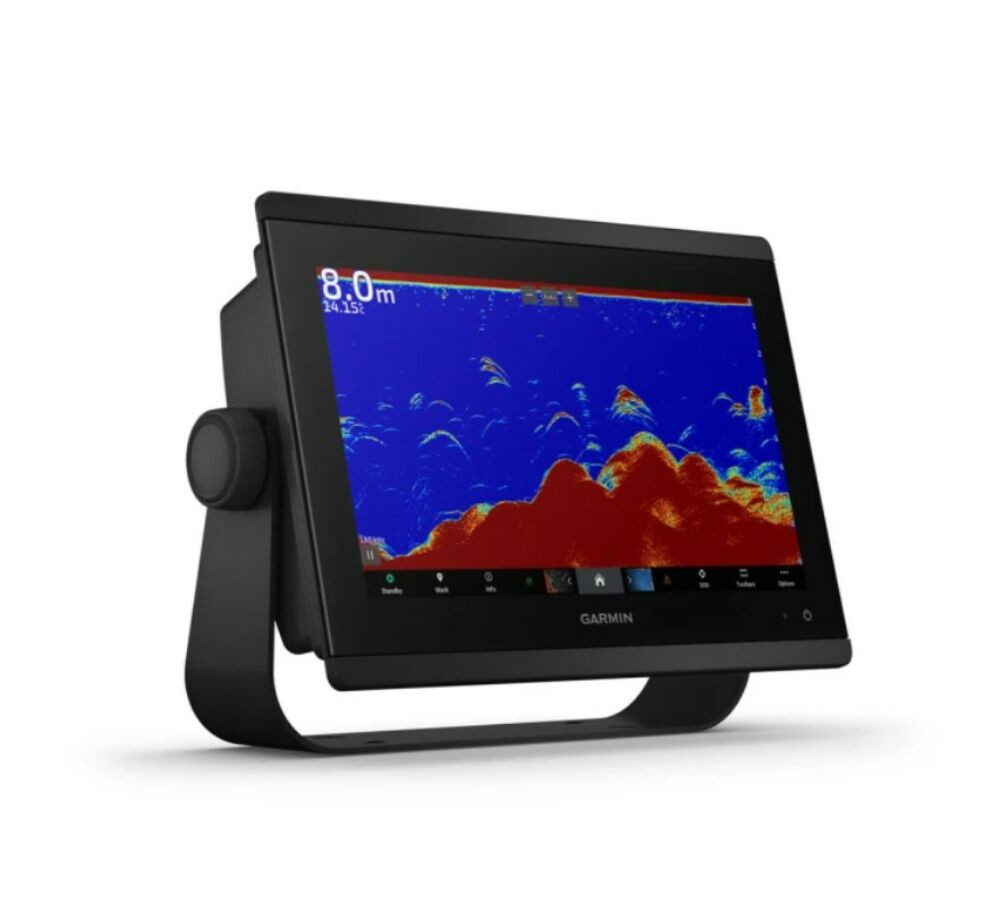

TRADITIONAL AND SCANNING SONAR SUPPORT

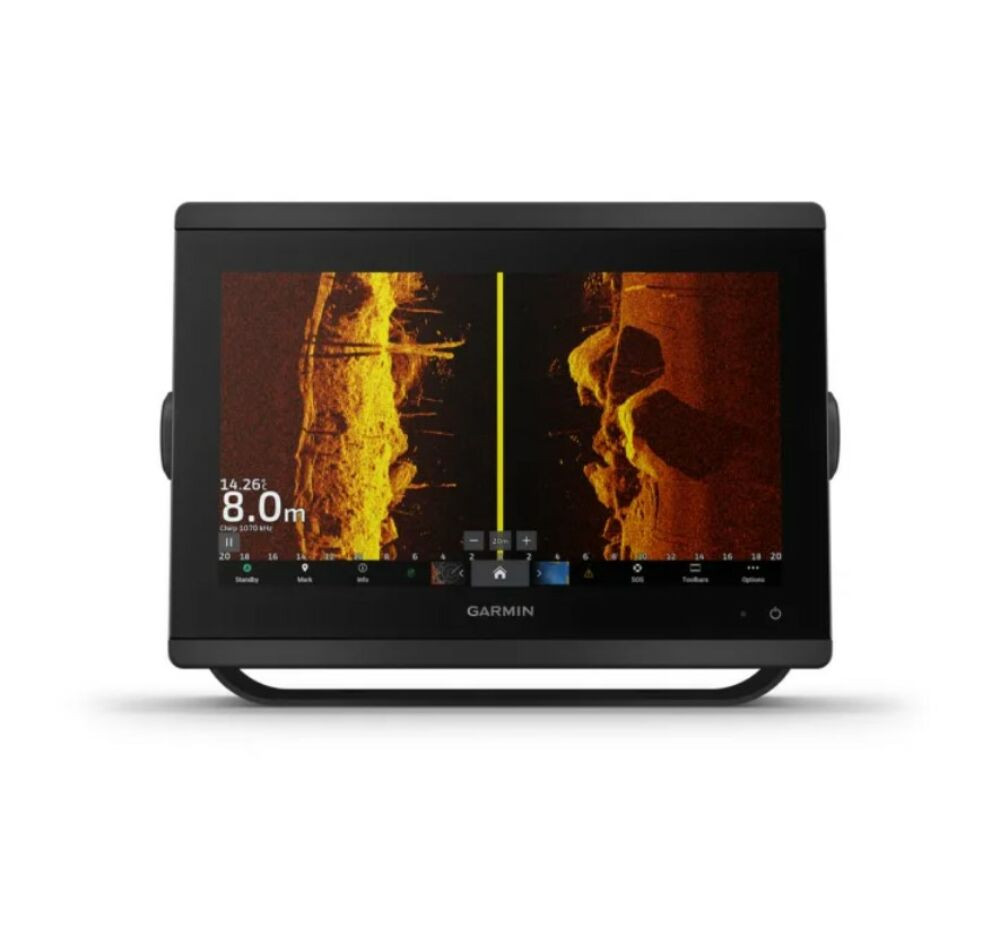

Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately).

LIVE SONAR SUPPORT

Pair your chartplotter with Garmin live sonar options (transducer sold separately) to see all around your boat in real time.

GARMIN SAILASSIST^™ SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

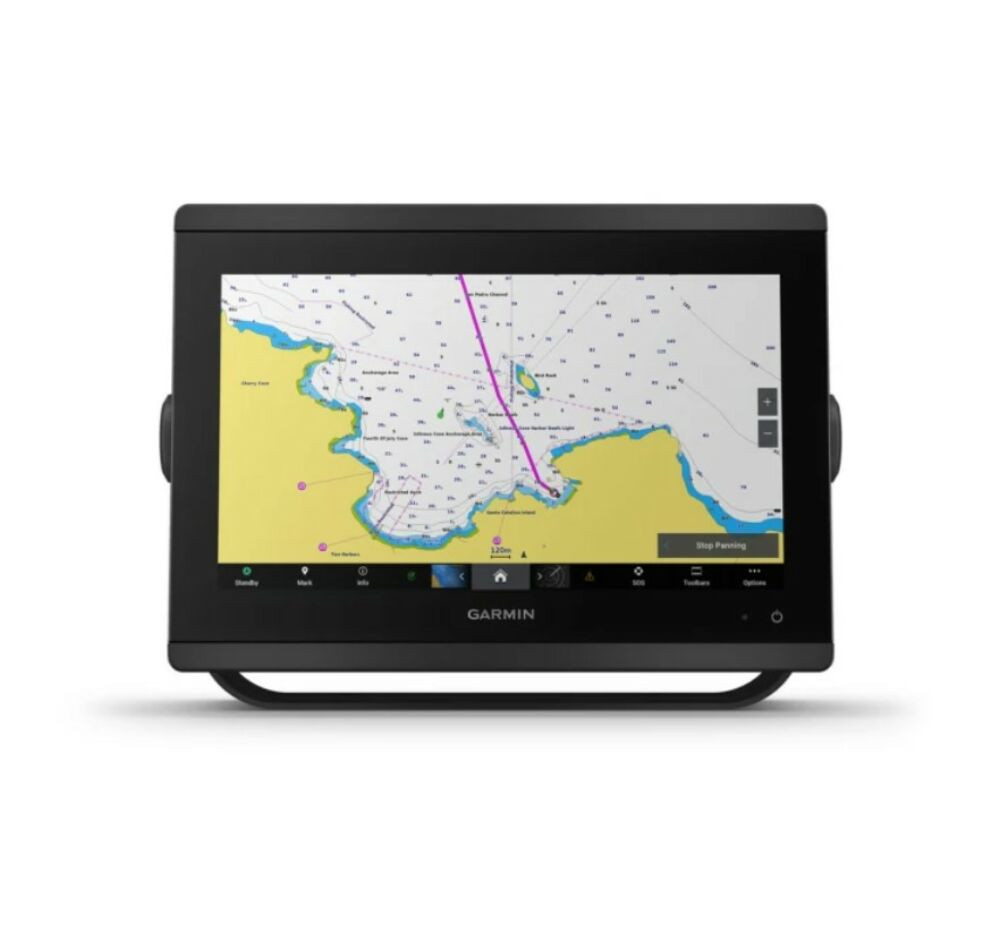

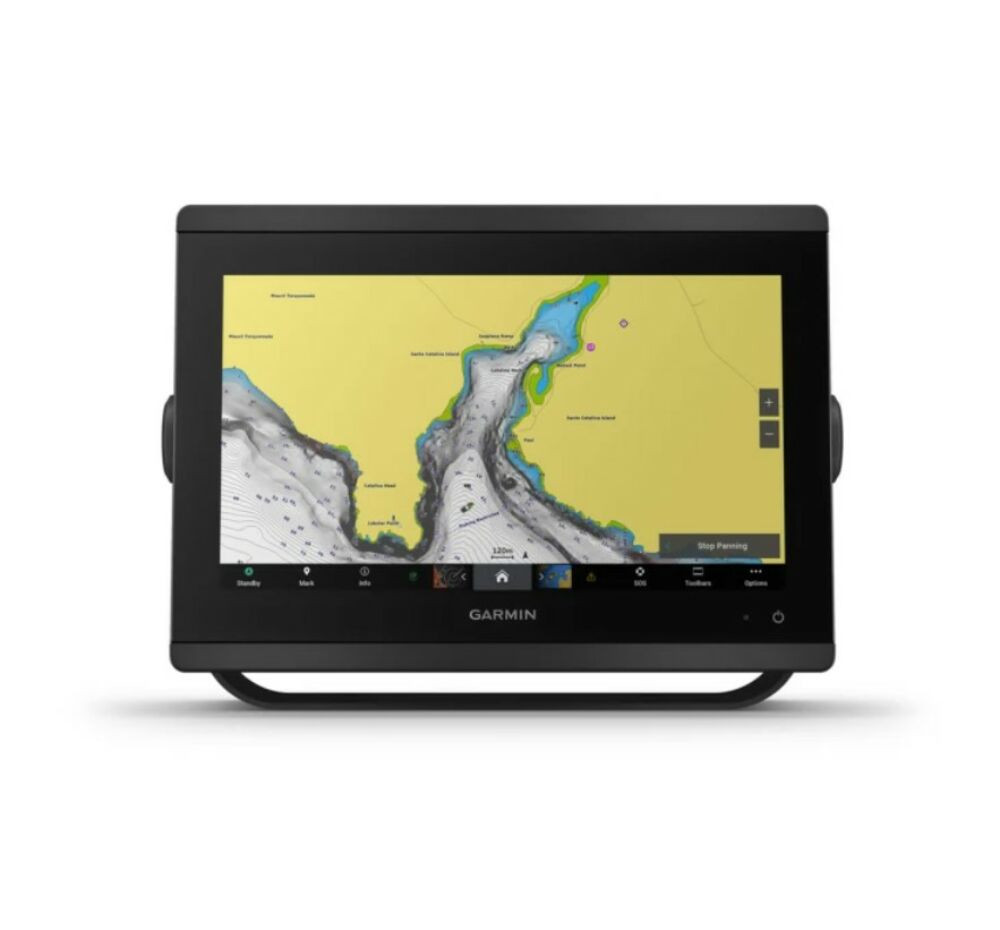

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping that includes Auto Guidance+™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.

OPTIONAL CHARTS AND MAPS

Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+^™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000^® AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN^® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the all-in-one mobile app for access to the OneChart™ feature, smart notifications3 , software updates, Helm, Garmin Quickdraw™ Community data and more.

INTEGRATED BLUETOOTH^® AND ANT TECHNOLOGIES

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

ONEHELM^™ FEATURE

This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

SEND INREACH® DEVICE MESSAGES

Pair your inReach satellite communicator⁵ to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.

1 On select models
2 Requires ActiveCaptain app on your compatible smartphone paired to a compatible GPSMAP chartplotter
3 Auto Guidance+ is for planning purposes only and does not replace safe navigation operations
4 When paired with a compatible smartphone
5 Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

In the box:

• GPSMAP 8412xsv
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector

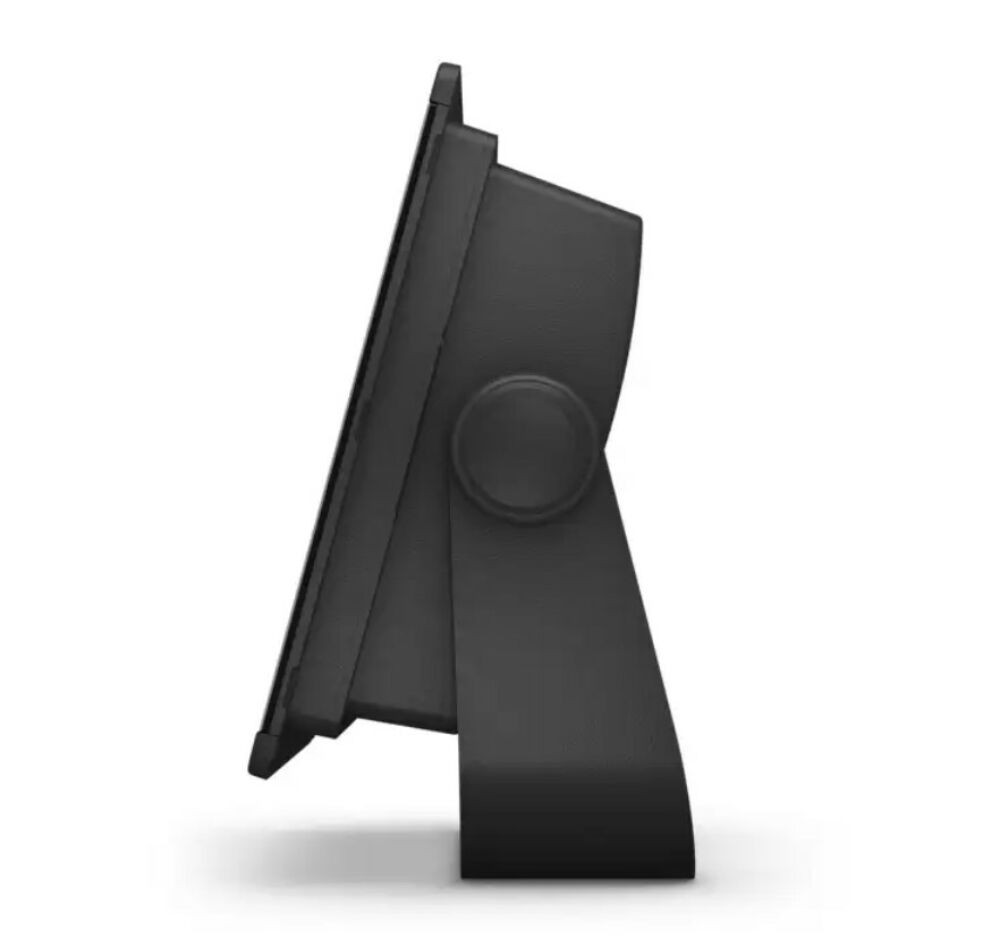

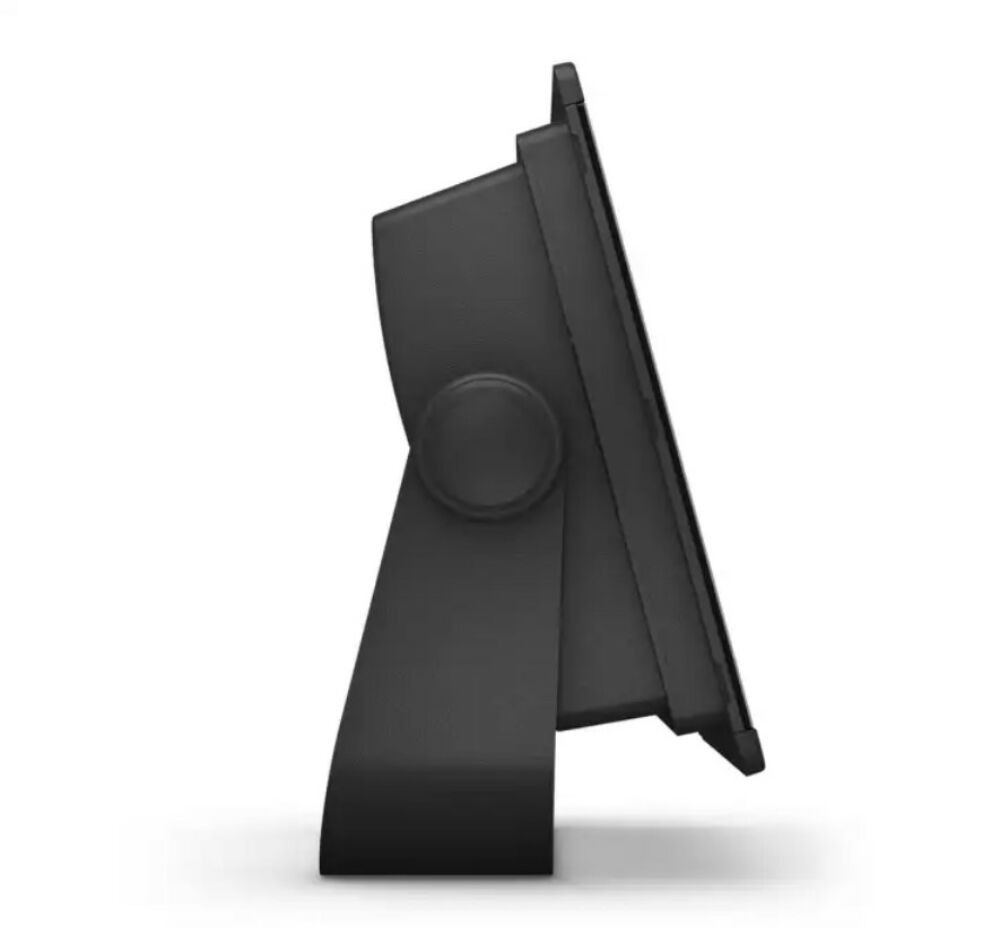

• Bail mount with knobs
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation
