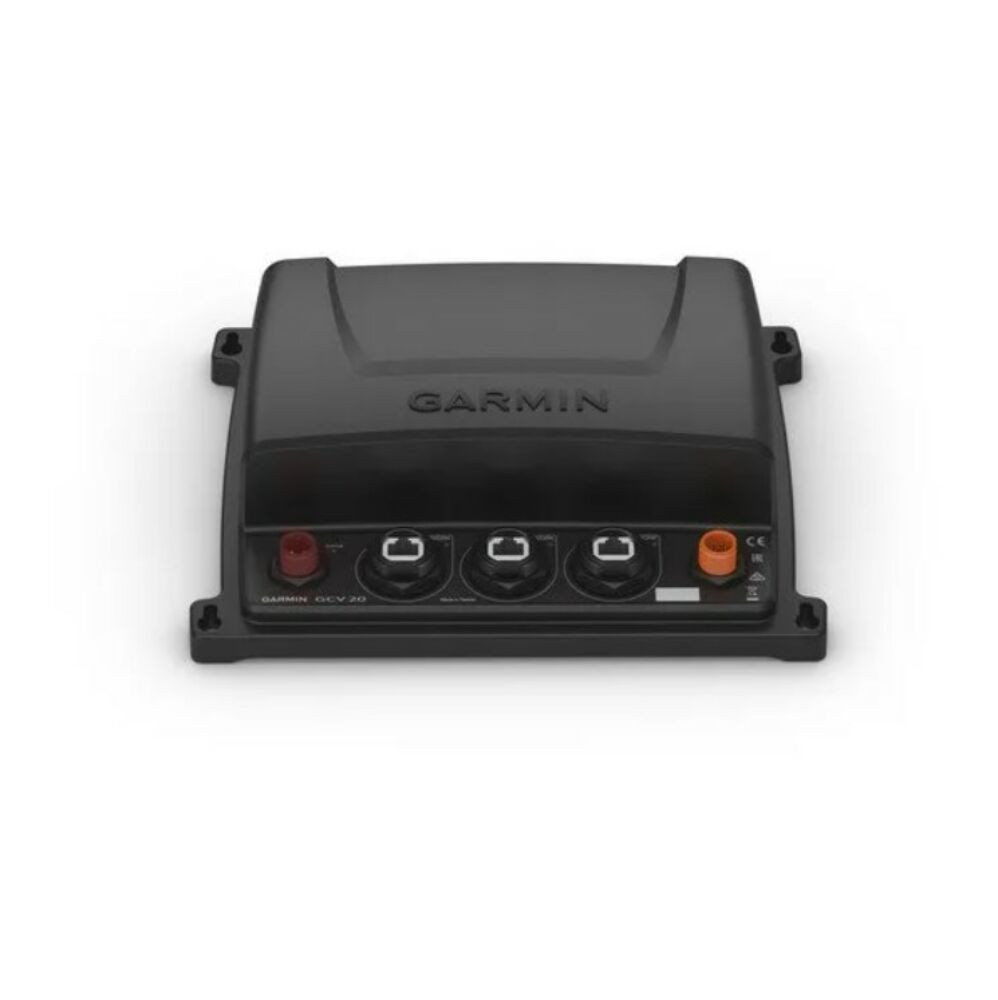

Garmin GCV™ 20 Sonar Black Box Without transducer

Name: Garmin GCV™ 20 Sonar Black Box Without transducer
Brand: GARMIN
SKU: GMN-010-02055-10

Manufacturer:

GARMIN

Manufacturer Article number:

010-02055-10

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The easy-to-install, networkable GCV^™ 20 sonar black box allows you to redefine clarity and detail.

Details

Garmin GCV™ 20 Sonar Black Box Without transducer

The easy-to-install, networkable GCV^™ 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition 800 kHz ClearVü and Ultra High-Definition 1200 kHz SideVü scanning sonars to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix^™ all-seeing sonar. It includes a max power output of 500 watts.

Ultra High-Definition ClearVü Scanning

This sonar system provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning

See stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

In the box:

GCV 20 Sonar Black Box
Right-angle power cable
Right-angle ethernet cable
Mounting hardware
Documentation

Data

Input voltage (DCV):

10-35

Wired Protocol:

Garmin-net

Waterproof:

Igen

Navigation category:

Szonárjeladó

Number of pins:

12 pin (narancssárga)

Water resistance rating:

ipx7

Website:

https://www.garmin.com/en-US/p/626121/pn/010-02055...

Weight:

845 g/db

Technical specification

General
DIMENSION	251 mm x 192 mm x 66 mm
WEIGHT	845 g
WATER RATING	IPX7
TEMPERATURE RANGE	From -15°C to 70°C

Sonar features & specifications
ULTRA HIGH-DEFINITION CLEARVÜ	yes
ULTRA HIGH-DEFINITION SIDEVÜ	yes
FREQUENCY	Ultra High-Definition ClearVü: 800 kHz; Ultra High-Definition SideVü 1,200 kHz
MAXIMUM DEPTH	200' Ultra High-Definition ClearVü; 125' to each side Ultra High-Definition SideVü, 250' total
