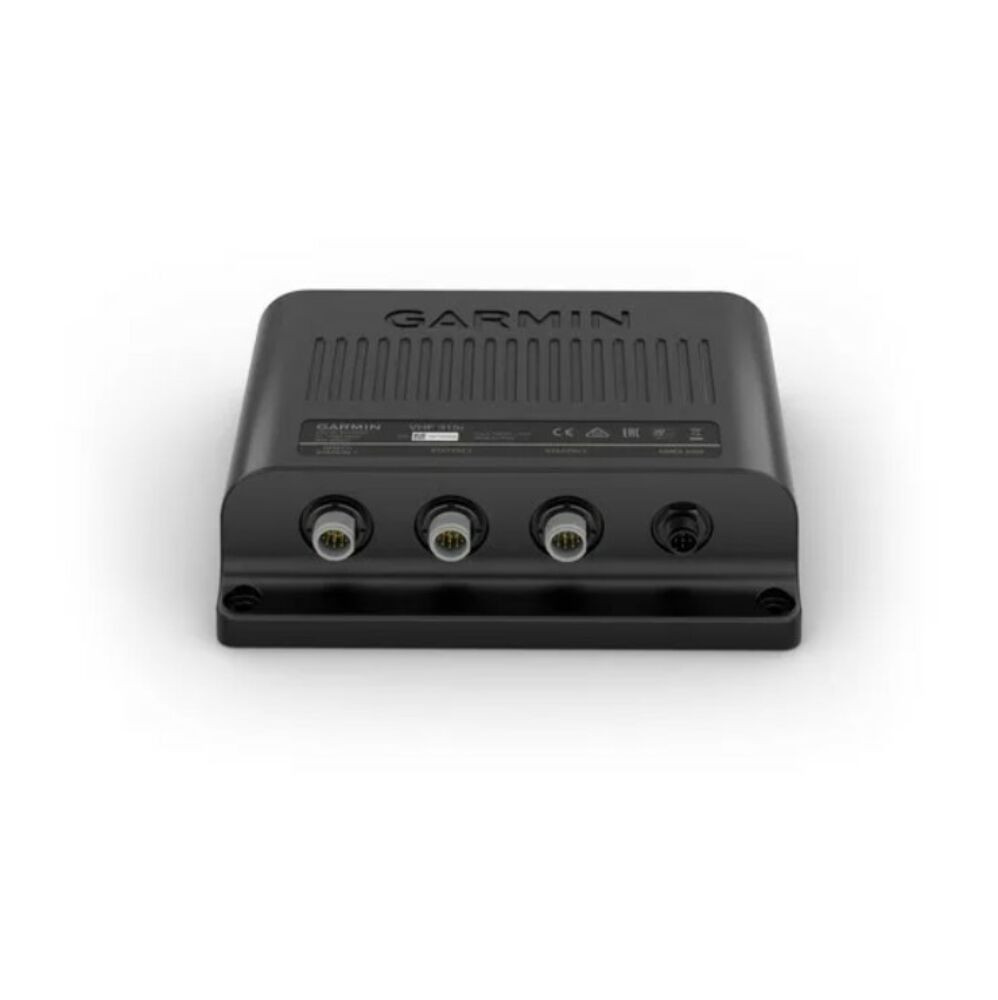

Garmin VHF 315i Marine Radio

Name: Garmin VHF 315i Marine Radio
Brand: GARMIN
SKU: GMN-010-02047-01

Manufacturer:

GARMIN

Manufacturer Article number:

010-02047-01

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The 25-watt VHF 315i marine radio with Class D DSC is a modular communication solution. It provides the security of reliable communication on the water by meeting the latest industry standards.

Details

Garmin VHF 315i Marine Radio

Reliable 25-watt VHF Class D DSC marine radio

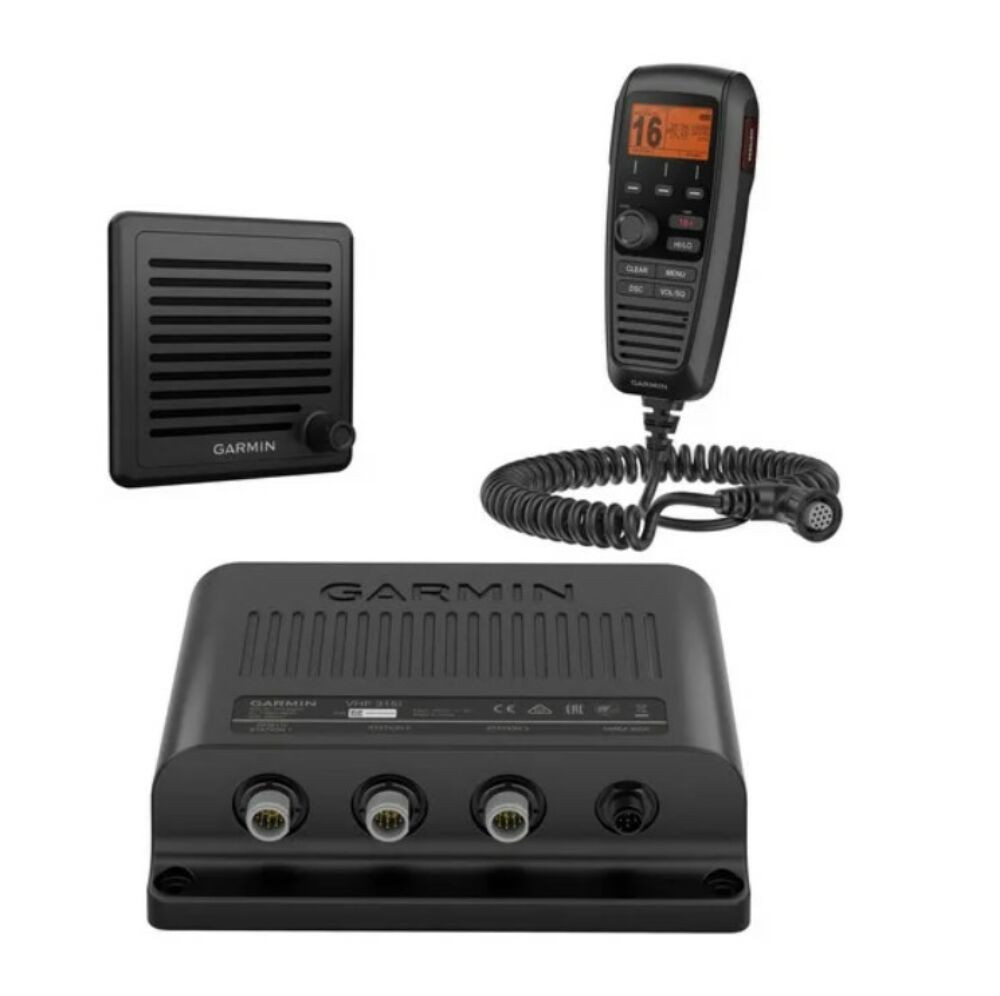

Includes GHS^™ 11i handset and new active speaker to use as intercom between up to 3 stations
Built-in GPS receiver (requires external antenna)
NMEA 2000^® connectivity for easy integration with compatible chartplotters and multifunction displays
Preprogrammed with international marine channels

The 25-watt VHF 315i marine radio with Class D DSC is a modular communication solution. It provides the security of reliable communication on the water by meeting the latest industry standards. Pre-programmed with international marine channels, it’s easy to use and integrates seamlessly into the Garmin onboard system. It has a built-in GPS receiver with connector for required external antenna. VHF 315i includes a GHS 11i handset and new active speaker to use as an intercom between up to 3 stations. It’s also equipped with a two-way 30-watt hailer system for communication with other boats or deckhands. NMEA 2000 connectivity enables easy integration with compatible chartplotters, multifunction displays and convenient software updates. Simplified handset connectors and an uncomplicated, easy-to-use interface allow you to get your radio set up quickly, so you can get back out on the water and start communicating.

In the box:

Data

Input voltage (DCV):

9/16

Network Protocol:

NMEA2000

Wired Protocol:

NMEA0183

Waterproof:

Igen

Navigation category:

VHF, AIS

Water resistance rating:

ipx7

Website:

https://www.garmin.com/en-GB/p/615464/pn/010-02047...

Weight:

1.53 kg/db

Technical specification

Dimensions: 20.5 x 18.1 x 6.0 cm
Weight: 1.53 kg
Operating temperature range: -15°C to 70°C
Water rating: IPX7
Compass-safe distance: 5 cm
Digital selective calling: Class D
Frequency bands: All international marine channels
Operating voltage: 9.6 - 16 Vdc
Current draw: Standby: 350 mA; Receive: 600 mA; Transmit high power: 6 A max; transmit wow power: 2 A max
Transmitter power (at 13.6 Vdc): High power: 23-25 W; low power: 0.7-1 W
NMEA 2000 LEN: 1
