Garmin GRID™ 20 Vertical (Portrait), (Távirányító)

Csomagajánlatok

• Details
• Info
• Technical specification
• Download User manual

Details

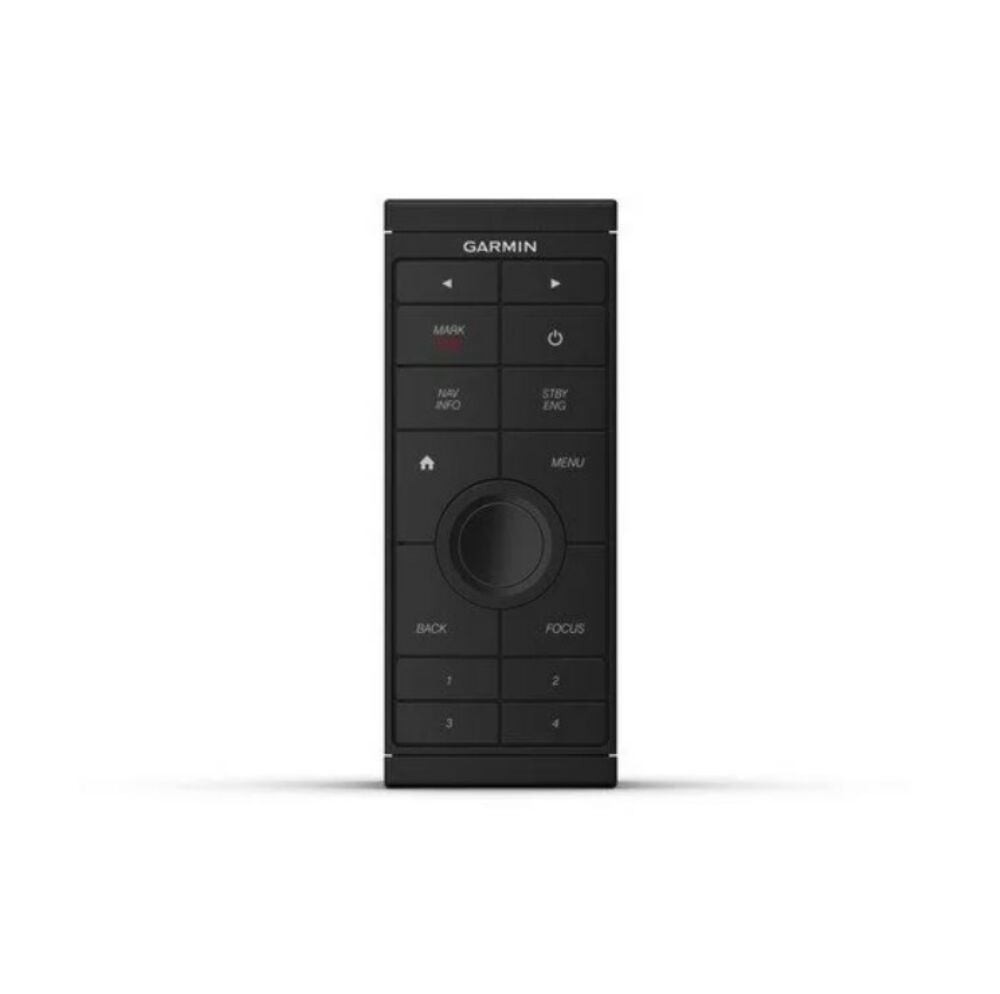

Garmin GRID™ 20 Vertical (Portrait)

• Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
• 360-degree, all-in-one joystick with a rotary knob and push-to-select button
• Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
• Four favourite keys can be designated to restore your system to a previously saved configuration
• Allows wired or wireless installation options

The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate four favourite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there's also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain's chair.

In the box:

• GRID 20
• Mounting hardware
• Power cable
• Documentation

Info

Input voltage (DCV):

9/32

Network Protocol:

NMEA2000

Waterproof:

Igen

Navigation category:

Navigációs kijelző

Remote control:

Igen

Tápkábel:

Igen

Water resistance rating:

ipx7

Website:

https://www.garmin.com/en-US/p/609347/pn/010-02011...

Weight:

179 g/db

Technical specification

• Dimensions (W x H x D): 14.1 x 5.6 x 6.8 cm
• Weight: 179 g
• Temperature range: From -15° to 70°C
• Material: Fully gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 114 mm
• Power input:
  • NMEA 2000
  • -or-
  • Wired power (with included power cable):
    • Input power: 9-32 V DC
    • Fuse: 1.0 Amp, Fast Blow
    • Maximum power usage at 9 V DC: 1.5 W
    • Typical current draw at 12 V DC: 40 mA
    • Maximum current draw at 12 V DC: 120 mA
  • -or-
    • 2 x AA battery powered (not included)

Download User manual

Download User manual
