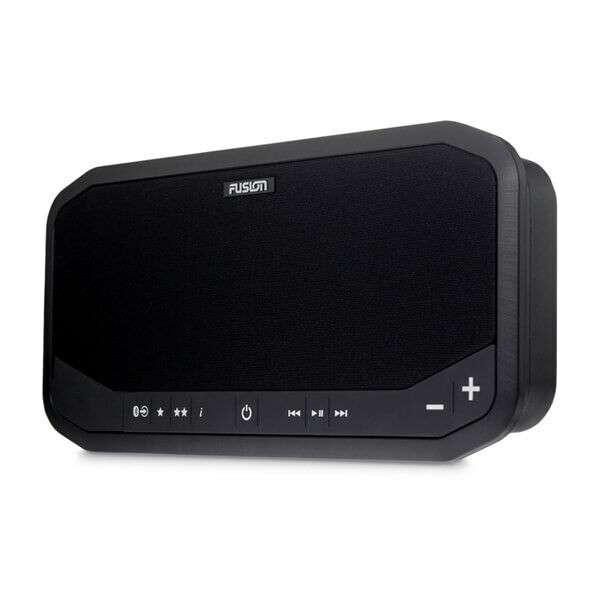

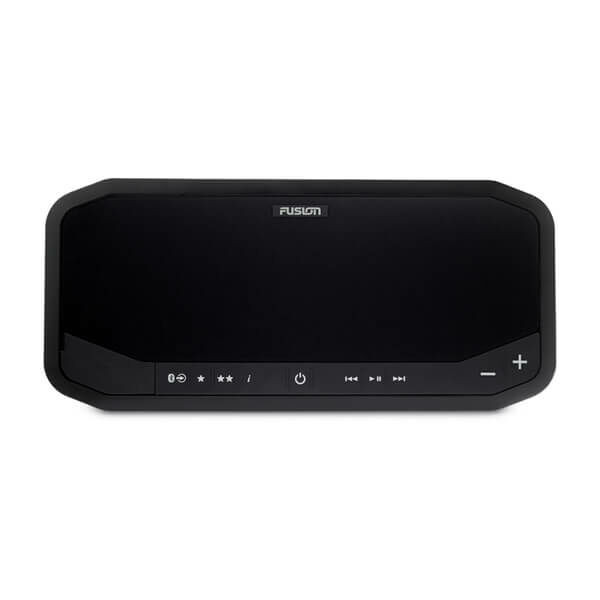

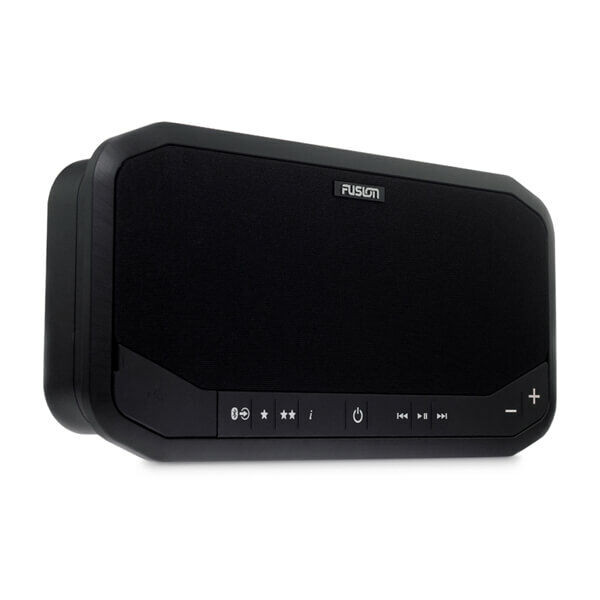

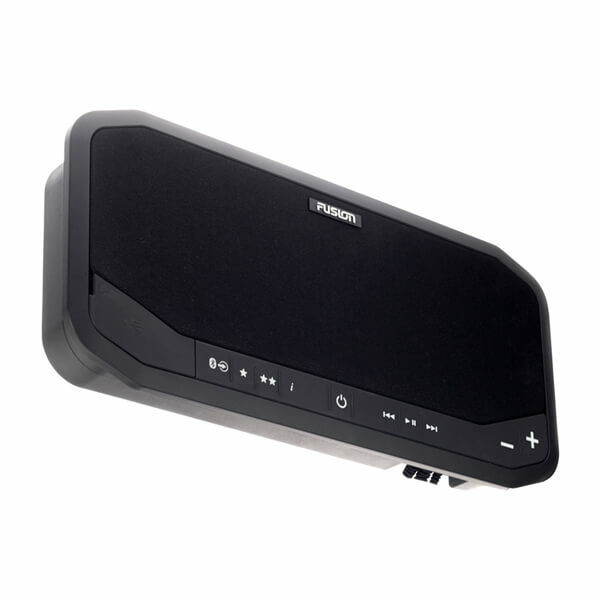

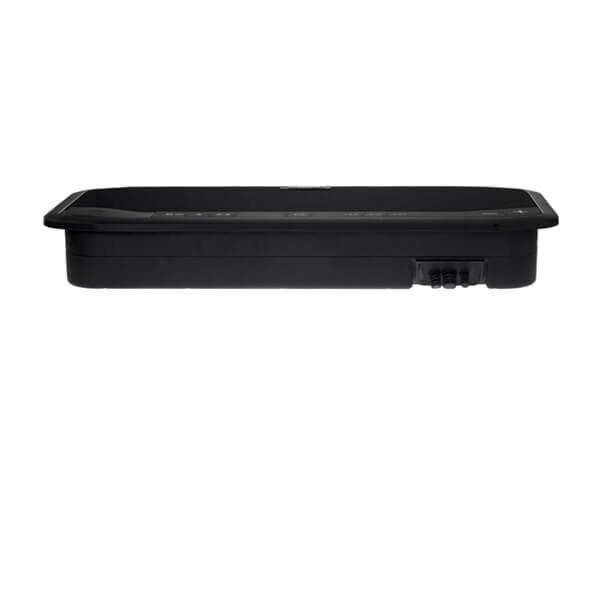

Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Price: 167 106 Ft
without VAT: 131 580 Ft+VAT (35 527 Ft)
  1. Head unit
  1. Entertainment Electronics
  2. Fusion
  3. Head unit

Garmin Fusion® Panel-Stereo Indoor, (hangszóró)

Article No.:
GMN-010-02005-00
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Garmin Fusion® Panel-Stereo Indoor, (hangszóró)
Youtube video

Price: 167 106 Ft
without VAT: 131 580 Ft+VAT (35 527 Ft)
Manufacturer:
GARMINFUSION
Manufacturer Article number:
010-02005-00
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
db
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.
Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User manual
Details

Garmin Fusion® Panel-Stereo Indoor

The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.



   Preconfigured Digital Signal Processing (DSP) technology for a superior listening experience.

Lorem ipsum dolor sit amet   Hi-Fi audio reproduction through preconfigured DSP.

   Built-in Class-D amplifier delivers higher efficiency and greater output.

   Optimally tuned, sealed enclosure with two 3-inch speakers and a passive bass radiator.

Lorem ipsum dolor sit amet   Multiple mounting options available, including flush, flat and surface mounting.

Lorem ipsum dolor sit amet   Control your music from a compatible smart device or Garmin watch.



IP65 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the Panel-Stereo has an IP65 rating for protection against dust and water ingress. The Panel-Stereo Outdoor is tested to a high level of protection against UV and comes with a high-grade plastic grille.



QUICK AND SIMPLE TO INSTALL

The Panel-Stereo operates on 12-volt DC power, an earth connection, AM/FM antenna and a single cutout at most is required at installation – it is a true plug-and-play, all-in-one audio entertainment solution.



FUSION DIGITAL SIGNAL PROCESSING

A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels.

PERFECTLY TUNED ENCLOSURE

The Panel-Stereo is brilliantly designed – combining built-in amplification, stereo source selection, two 3-inch speakers and a large surface passive bass radiator to deliver premium, optimized audio on board from a single unit.

Convenient and versatile.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the different source options available, including BLUETOOTH® technology, AM/FM radio, AUX and USB connections.

SURFACE MOUNTING SPACER

You can install the Panel-Stereo with a conventional flush mount or premium flat finish. Alternatively use the accessory mounting spacer to surface mount the Panel-Stereo, with no mounting cut-out required.



In the box:

  • Fusion Panel-Stereo
  • Stereo trim
  • Six 6-gauge, self-tapping stainless steel screws
  • Power wiring harness
  • Documentation
Info
Input voltage (DCV):
12
Current (A):
10
Power (W):
140
Wireless Protocol:
Bluetooth/ANT
Wired Protocol:
USB
Audio, video protocol:
Audio
Number of outputs:
2
Number of inputs:
2
Colour:
Fekete
Environment:
Belső
Waterproof:
Igen
Entertainment electronics:
Audio
Zone:
1
Website:
https://www.garmin.com/en-US/p/607757/pn/010-02005...
Weight:
2.38 kg/db
Technical specification

General

DIMENSION 13.54" x 6.1" x 1.97" (344 x 155 x 50 mm)
WEIGHT

2.54 lbs (1.15 kg)

WATER RATING IP65 (when properly installed)
OPERATING TEMPERATURE 32° to 122° F (0° to 50° C)
CURRENT (MAX) 10 A

Networking

BLUETOOTH® WIRELESS RANGE up to 30 ft (10 meters)
ANT® WIRELESS RANGE Up to 10 ft (3 meters)
WIRELESS FREQUENCIES/PROTOCOLS BLUETOOTH®: 2.4 GHz @ +9 dBm nominal
ANT®: 2.4 GHz @ +9 dBm nominal

Audio

AMPLIFIER Class-D

Stereo Features

PEAK POWER 140 watts
RATED POWER OUTPUT (2 OHM) 43 watts RMS x 2 @ 14.4 V input < 1% THD
BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) yes (preconfigured)
FUSION-LINK™ CONTROL yes (smart device and Garmin watch)
BLUETOOTH® WIRELESS TECHNOLOGY yes
ANT® WIRELESS TECHNOLOGY yes
MULTI-LANGUAGE INTERFACE

Chinese (Mandarin), Dutch, English, French, German, Italian, Japanese, Spanish

SOFTWARE UPDATES USB
WARRANTY 1 year

Sources

SUPPORTED SOURCES

AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x2, AOA

Connections

AUXILIARY INPUTS (RCA) 2
USB 2.0 PORTS 1
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) 1
LINE OUT 1 RCA Output (AUX)

Electrical Features

POWER INPUT 10.8 - 16 VDC
COMPASS-SAFE DISTANCE 7.6" (229 mm)

Download User manual


Download User manual
