Garmin Fusion® MS-BB100 Black Boksz

Csomagajánlatok

• Details
• Info
• Technical specification
• Download User manual

Details

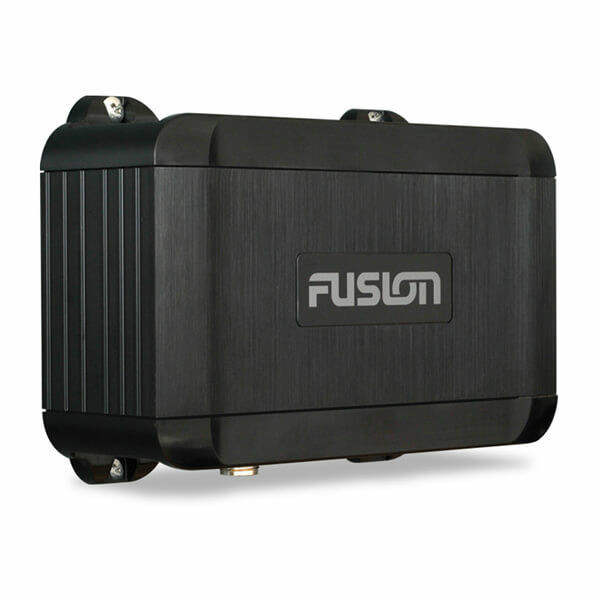

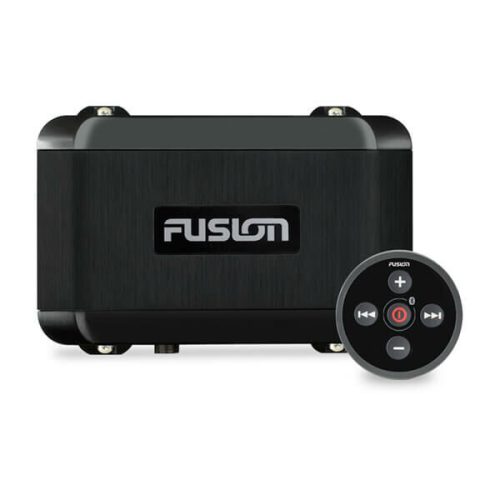

Garmin Fusion® MS-BB100 Black Box

There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.



   Compact form factor allows for easy installation on your boat.

   Control the BB100 using the included IPX7 wired remote control.

   Built-in Class-AB amplifier delivers efficiency with reduced distortion.

   Multi-Zone^™ technology gives you control of two separate audio zones.

   Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

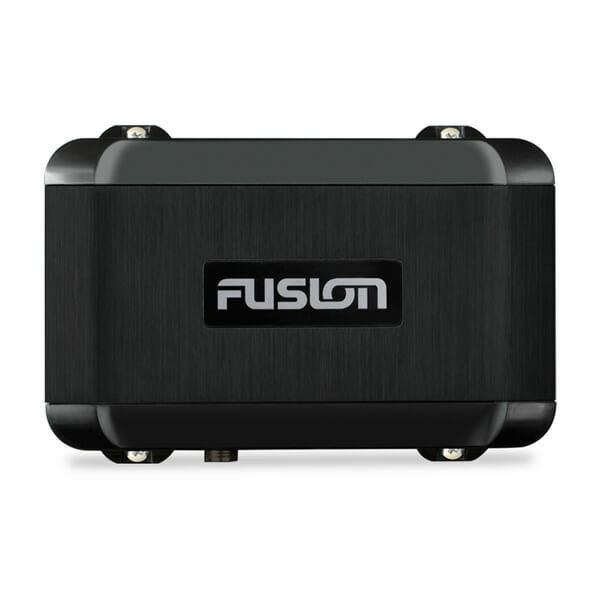

BLACK BOX DESIGN

Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.

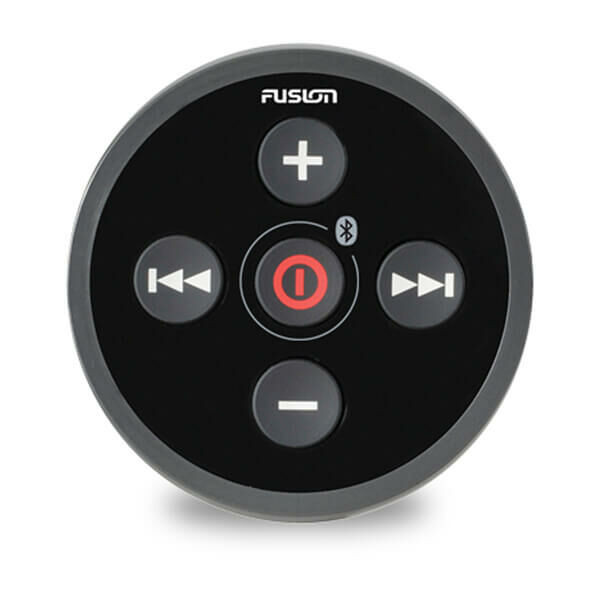

IPX7 WIRED REMOTE CONTROL

An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.

Enjoy a variety of source options.

MULTIPLE SOURCE OPTIONS

Take advantage of the many source options available, including BLUETOOTH^® technology, AM/FM radio, AUX and USB connections.



The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.



In the box:

• MS-BB100 media black box
• IPX7 wired remote control
• One remote control mounting nut (M56)
• One remote control mounting gasket
• Four 8-gauge, mounting screws
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harness
• 6 ft (2 meter) NMEA 2000^® drop cable
• Documentation

Info

Input voltage (DCV):

12

Current (A):

15

Power (W):

200

Network Protocol:

NMEA2000

Wireless Protocol:

Bluetooth/ANT

Wired Protocol:

USB

Audio, video protocol:

Audio

Number of outputs:

5

Number of inputs:

2

Colour:

Fekete

Waterproof:

Nem

Entertainment electronics:

Audio

Zone:

2

Website:

https://www.garmin.com/en-US/p/520066/pn/010-01517...

Weight:

1.39 kg/db

Technical specification

General
DIMENSION	Black Box: 6.1" x 3.7" x 2.63" (155 x 94 x 60 mm) Remote: 2.56" x 2.56" x 2.13" (65 x 65 x 54 mm)
WEIGHT	1.23 lbs (560 g)
WATER RATING	Black Box: IPX3 (when properly installed) Wired Remote: IPX7 (front panel only, when properly installed)
OPERATING TEMPERATURE	32° to 122° F (0° to 50° C)
CURRENT (MAX)	15 A

Networking
NMEA 2000® LEN	1 (50 mA)
BLUETOOTH® WIRELESS RANGE	up to 30 ft (10 meters)
ANT® WIRELESS RANGE	Up to 10 ft (3 meters)
WIRELESS FREQUENCIES/PROTOCOLS	BLUETOOTH®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal

Audio
AMPLIFIER	Class-AB (4 ohm)

Stereo Features
PEAK POWER	200 watts
RATED POWER OUTPUT (4 OHM)	26 watts RMS x 4 @ 14.4 V input < 10% THD
FUSION-LINK™ CONTROL	yes (MFD, smart device and Garmin watch)
MULTI-ZONE™ TECHNOLOGY	2 zones
BLUETOOTH® WIRELESS TECHNOLOGY	yes
ANT® WIRELESS TECHNOLOGY	yes
DAB+ READY	yes
SUPPORTS NRX WIRED REMOTE	yes
SOFTWARE UPDATES	USB
WARRANTY	1 year

Sources
SUPPORTED SOURCES	AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, AOA   DAB+ ready (available in Europe and Australia only)

Connections
AUXILIARY INPUTS (RCA)	1
NMEA 2000® PORTS	1
USB 2.0 PORTS	1
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR)	1
SPEAKER CONNECTIONS	4 (2 zone amplified)
RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER)	2 zones (requires external amplification)
LINE OUT	2 (L + R per zone, requires external amplification)
SUBWOOFER OUT	Zone 1 (mono output, requires external amplification)

Electrical Features
POWER INPUT	10.8 - 16 VDC
COMPASS-SAFE DISTANCE	5.9" (150 mm)
