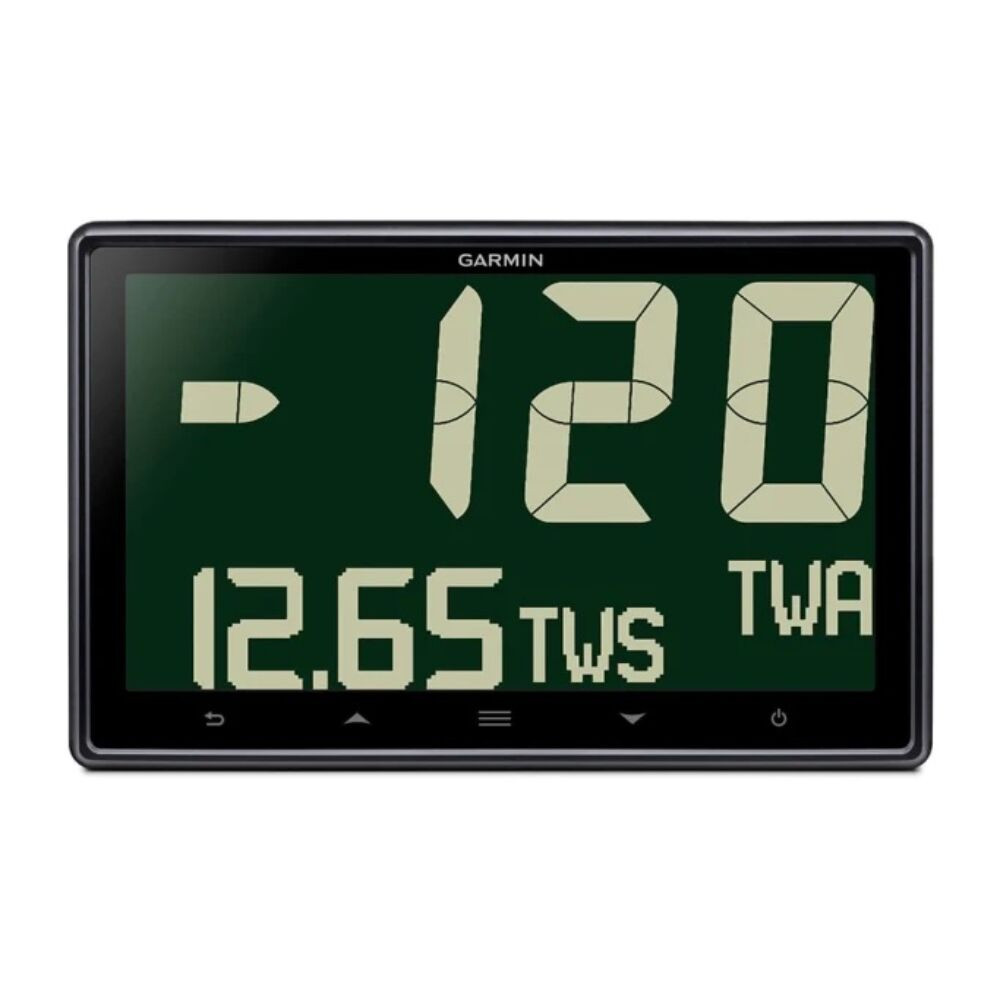

Garmin GNX™ 120 7-inch Large Format Marine Instrument

• High-precision glass-bonded backlit LCD display avoids fogging
• Bold 2-inch (51 mm) digits are the largest digits in class
• Provides the data necessary to make confident decisions
• Displays more than 50 marine and boat parameters for wind, sea and vessel conditions
• Integrated sailing eco-system allows seamless sharing of sailing data between Garmin devices



Designed for serious sailors who demand quality, precision and total integration, this high-precision glass-bonded 7-inch large format instrument creates a beautiful “glass mast” display with superior readability day and night. It allows seamless sharing of sailing data between Garmin devices and is controlled from a compatible GNX keypad. It is easy to set up, calibrate and use.

Superior Readability

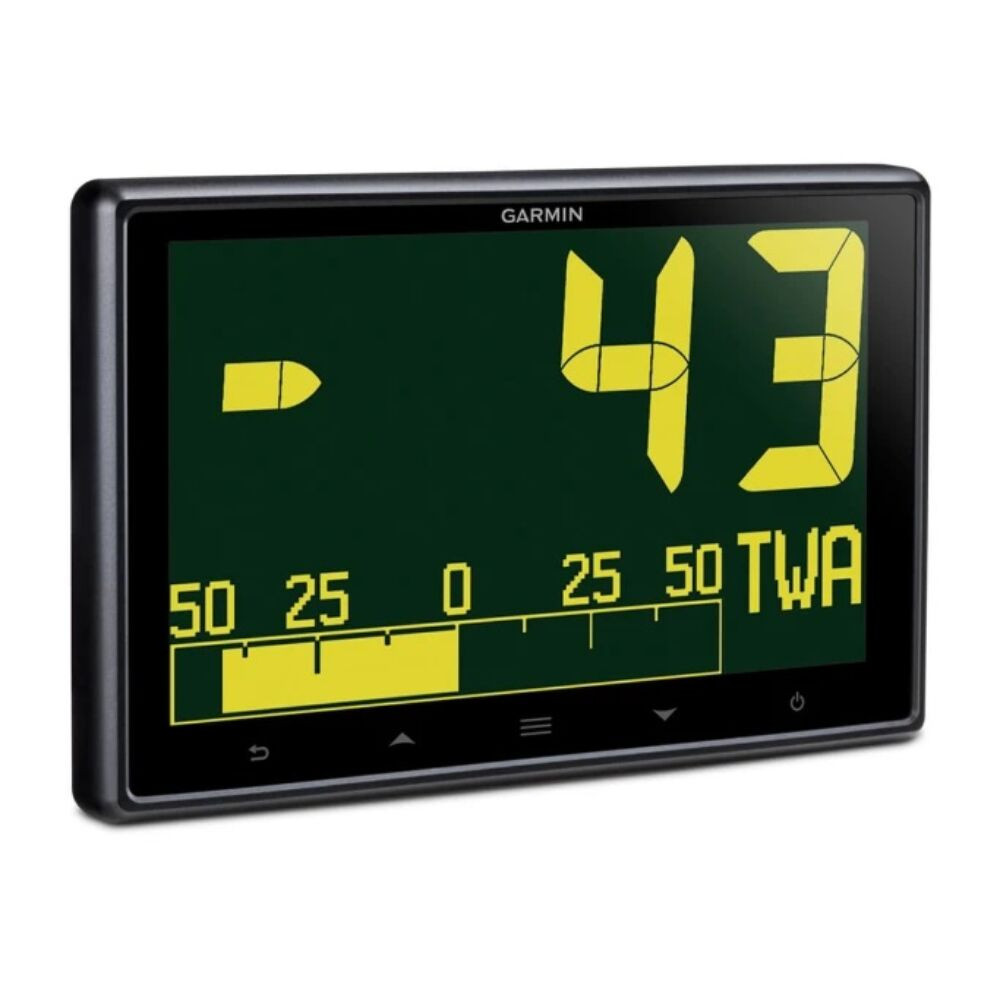

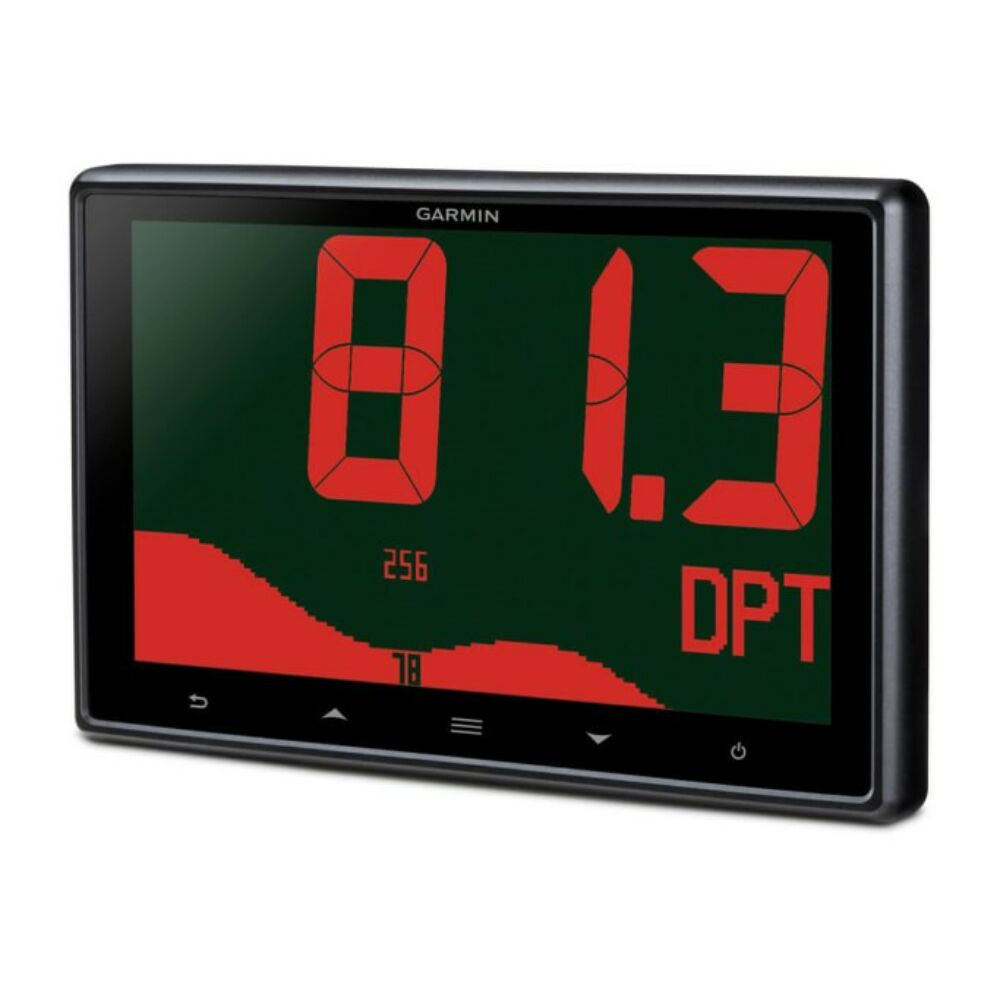

Enjoy superior readability in all conditions, day and night. Options for white or colour 2-inch (51 mm) digits — the largest in class — allow you to adjust for most preferred visibility setting for any lighting condition. The GNX 120 provides a flush mount glass mast look, and its glass-bonded high-contrast monochrome LCD display avoids fogging. Low power consumption of 0.36 W daylight with no backlight and 0.4 W nighttime with mid-level backlight preserves your batteries.

Customise Your Profile

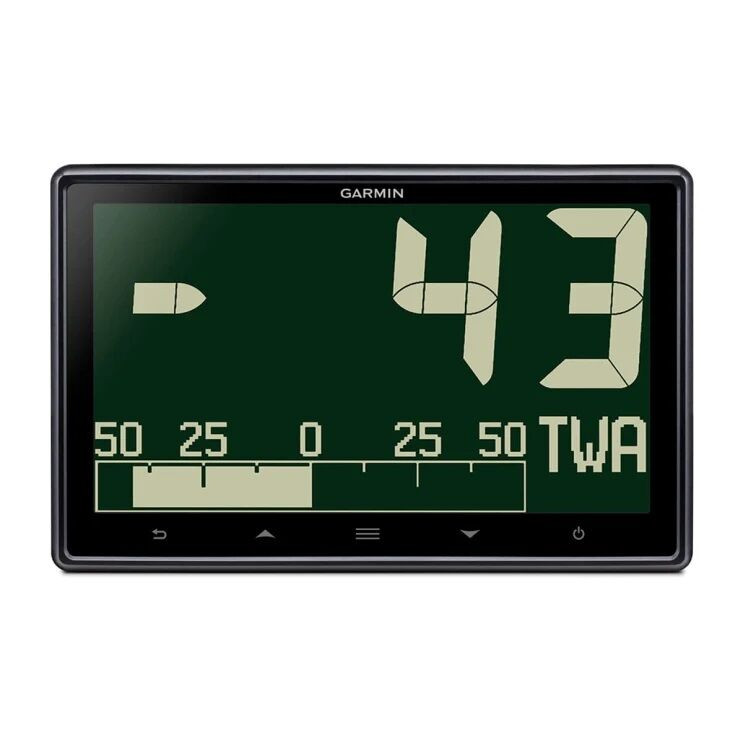

Fully customisable user profiles allow you to configure the screen layout to your preferred setting. Five display configurations are available: single, dual and triple function, plus Gauge and Graph modes, to display data for more than 50 important marine parameters for wind, sea and vessel conditions.



In the box:

• GNX 120
• Trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• NMEA 2000® T-connector
• NMEA 2000 drop cable
• Documentation

Data

Display size (inch):

7

Network Protocol:

NMEA2000

Wired Protocol:

NMEA0183

Touch screen:

Igen

Waterproof:

Igen

Navigation category:

Navigációs műszer

Displayable data:

Multikijelző

NMEA 2000 network components:

T-csatlakozó

Display type :

Inverted LCD

Water resistance rating:

ipx7

Website:

https://www.garmin.com/en-US/p/501394/pn/010-01395...

Weight:

380 g/db

Technical specification

General
Dimension	181 x 115 x 17 mm (7.12'' x 4.53'' x .67'')
Display Size	150 x 83 mm (6'' x 3.27'')
Display Type	Inverted LCD, monochrome
Weight	380 g (13.4 oz)
Water rating	IPX7
Mounting Options	Flush
Power Consumption	0.36 W (day); 0.4 W (night)
Glass bonded display	yes
Temperature range	from -15° to 70°C

Instrument Features
Auto-on	yes
User Profiles	yes

Note for NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)
