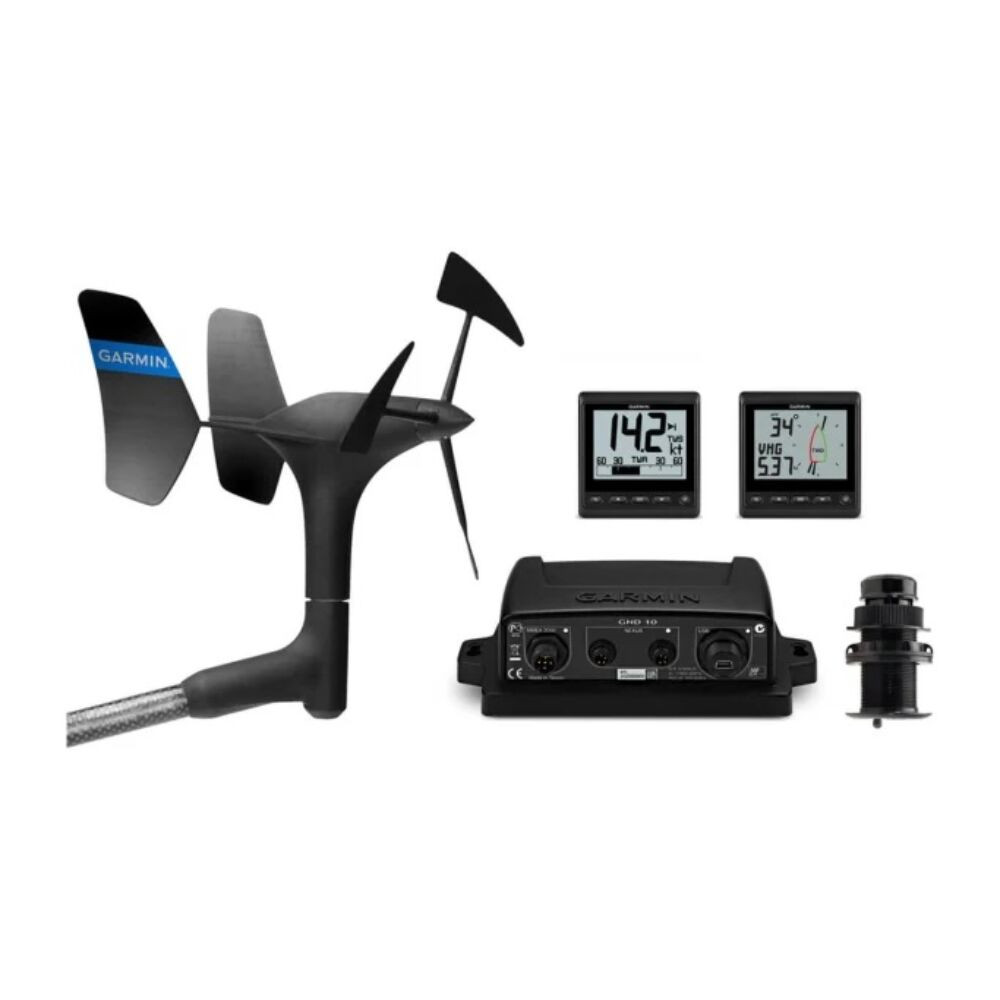

Garmin GNX Wired Sail Pack 52 (DST810)

Garmin GNX Wired Sail Pack 52 (DST810)

• Includes GNX Wind, gWind™ Wired, GNX™ 20 and Airmar^® DST810 transducer
• GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
• gWind Wired transducer features 3-bladed propeller and twin-fin design
• DST810 thru-hull smart transducer provides water depth, water speed and water temperature data — plus attitude sensing for heel/trim and pitch/roll inputs
• Wireless connectivity to devices with Bluetooth^® technology enables DST810 calibration directly through Airmar’s Cast app
• Easy plug-and-play installation between Nexus^®, Garmin chartplotters, NMEA 2000^® and USB

Know the wind and water

With a GNX Wind Wired Sail Pack, you will have all the equipment you need to know what’s going on with the wind and the water.

GNX Wind marine instrument

GNX Wind gives you the wind data necessary to make confident decisions. Features high-visibility, glass-bonded backlit monochrome LCD display with customisable backlight colours. It also interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW night-time (mid-level backlight) is perfect for sailboats. Fully customisable user profiles allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix^® 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.

gWind wired transducer

gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

GNX 20 marine instrument

The easy-to-read GNX 20 marine instrument display with black digits on a white or colour background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and night-time readability with high-contrast digits scalable up to 36 mm.

Airmar DST810 thru-hull smart transducer

DST810 combines precise depth, speed and temperature data with attitude sensing for heel/trim and pitch/roll inputs — which it provides to the NMEA 2000^® network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10 x 44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.

¹ Requires additional heading sensor.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

In the box:

• gWind™ transducer
• GNX™ 20 marine instrument
• GNX™ Wind marine instrument
• GND 10 black box bridge
• Airmar DST810 thru-hull smart transducer
• 3 NMEA 2000® drop cable (2 meters)
• NMEA 2000® power cable
• 5 NMEA 2000 T-connectors
• NMEA 2000 terminators
• Mast cable with female connector (25 meters)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation
