Garmin gWind Race Complete, (Szélmérő, verseny)
Garmin gWind Race Complete, (Szélmérő, verseny)
Price: 545 933 Ft
without VAT: 429 868 Ft+VAT (116 064 Ft)
  1. Wind Sensor
  1. Navigation
  2. Garmin
  3. Wind Sensor

Garmin gWind Race Complete, (Szélmérő, verseny)

Article No.:
GMN-010-01228-00
Garmin gWind Race Complete, (Szélmérő, verseny)
Garmin gWind Race Complete, (Szélmérő, verseny)
Garmin gWind Race Complete, (Szélmérő, verseny)
Garmin gWind Race Complete, (Szélmérő, verseny)
Price: 545 933 Ft
without VAT: 429 868 Ft+VAT (116 064 Ft)
Manufacturer:
GARMIN
Manufacturer Article number:
010-01228-00
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
db
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Designed for racing sailboats, the gWind Race features a 1 meter straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient.
Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User manual
Details

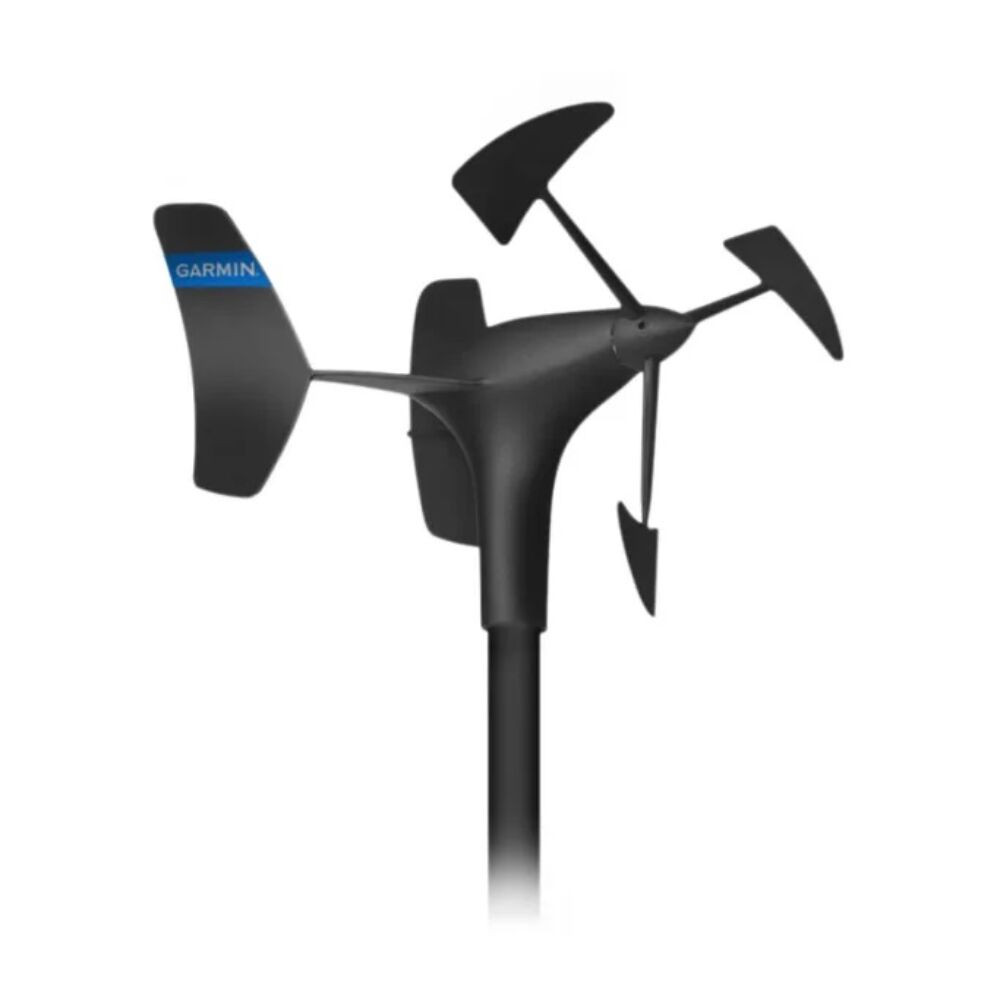

Garmin gWind Race Complete

  • Designed for racing sailboats

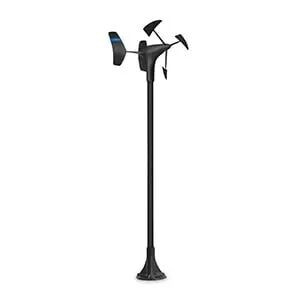

  • 1 meter straight pole raises the wind transducer above the mast to remove turbulence errors from the sail wash
  • Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air twin-fin design gives a more stable True Wind Angle (TWA)
  • Optic reading technique provides superior performance at low wind speeds and excellent linearity
  • GND™ 10 black box bridges NMEA 2000® data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa

Designed for racing sailboats, the gWind Race features a 1 meter straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient.

Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. And it's all connected using our lightest cable. The included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data. Easy plug-and-play installation between Nexus, Garmin chartplotters and NMEA 2000.



In the box:

  • gWind Race transducer
  • GND™ 10
  • USB Mini-B cable
  • NMEA 2000® drop cable (2 m)
  • NMEA 2000 T-connector
  • Mast cable with female connector (25 m)
  • Nexus network cable (5 m; straight connector)
  • Nexus female field installable connector
  • Mast bracket
  • Mounting hardware
  • Documentation
Info
Input voltage (DCV):
9/16
Network Protocol:
NMEA2000
Wired Protocol:
Nexus/USB
Waterproof:
Igen
Navigation category:
Jeladó
Cable lengths (m):
25
Displayable data:
Szél
Water resistance rating:
ipx6
Website:
https://www.garmin.com/en-US/p/144125/pn/010-01228...
Weight:
320 g/db
Technical specification
  • Unit Dimension, H=1,18m
  • Weight: 320g
  • Cable Length: 25m
  • Waterproof: Yes (IPX7)
  • Temp Range:From -15°C to 70°C (5°F to 158°F)
  • Voltage Range: 9-16V
  • Power Usage: 0.33W
  • Compass Safe Distance: N/A
  • Accuracy Angle: Better than ±1.5°
  • Speed: Better than ±3%
  • NMEA 2000® Load Equivalency Number (LEN): N/A
  • Wireless Connectivity: No
Download User manual


Download User manual
