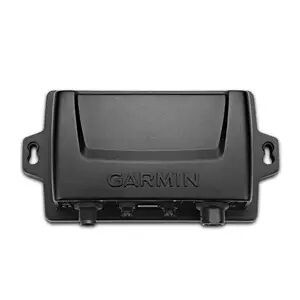

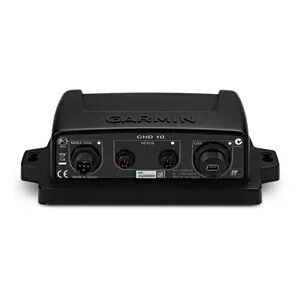

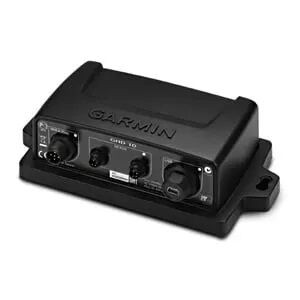

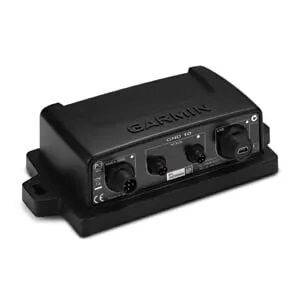

Garmin GND™ 10 Black Box Bridge

• Converts data between the Nexus network and NMEA 2000®
• Provides compatibility between Nexus and Garmin products
• Simple plug-and-play installation between Nexus, NMEA 2000 and USB
• No user setup or system configuration required
• Allows PC applications, such as NexusRace™, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks

The GND 10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWind™, gWind™ Wireless and gWind™ Race transducers. Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.

GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks. It also enables GND 10 software updates over NMEA 2000. Existing NexusRace PC application can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol.



In the box:

• GND™ 10 Black Box Bridge
• USB Mini-B cable
• NMEA 2000® drop cable (2 m)
• NMEA 2000 T-connector
• Nexus network cable (5 m; straight connector)
• Mounting hardware
• Documentation

Info

Input voltage (DCV):

9/16

Network Protocol:

NMEA2000

Wired Protocol:

Nexus/USB

Waterproof:

Igen

Navigation category:

Kiegészítő

Transmitter interface:

Igen

IP rating:

IPX7

Website:

https://www.garmin.com/en-US/p/144123/pn/010-01226...

Weight:

196 g/db

Technical specification

• Unit Dimensions: WxHxD: 170 x 90 x 50 mm
• Weight: 196 g
• Waterproof: Yes (IPX7)
• Temp Range: From 5°F to 158°F (-15°C to 70°C)
• Voltage Range: 9-16 V
• Power Usage: 0.52 W
• Compass Safe Distance: 0.1 m
• Accuracy Angle: N/A
• Speed: N/A
• NMEA 2000® Load Equivalency Number (LEN): 4
• Wireless Connectivity: no

	Nexus to NMEA 2000	NMEA 2000 to Nexus
Apparent Wind Angle
Apparent Wind Speed
Boat Speed Through Water
Course over ground
Course to Waypoint
Cross Track Error
Depth
Distance to Waypoint
Latitude
Longitude
Magnetic Heading
Magnetic Variation
Speed over ground
True Heading
True Wind Angle		*
True Wind Speed		*
UTC Date
UTC Time
Water Temperature
Barometric Pressure

* Only if Boat Speed Through Water is available.
