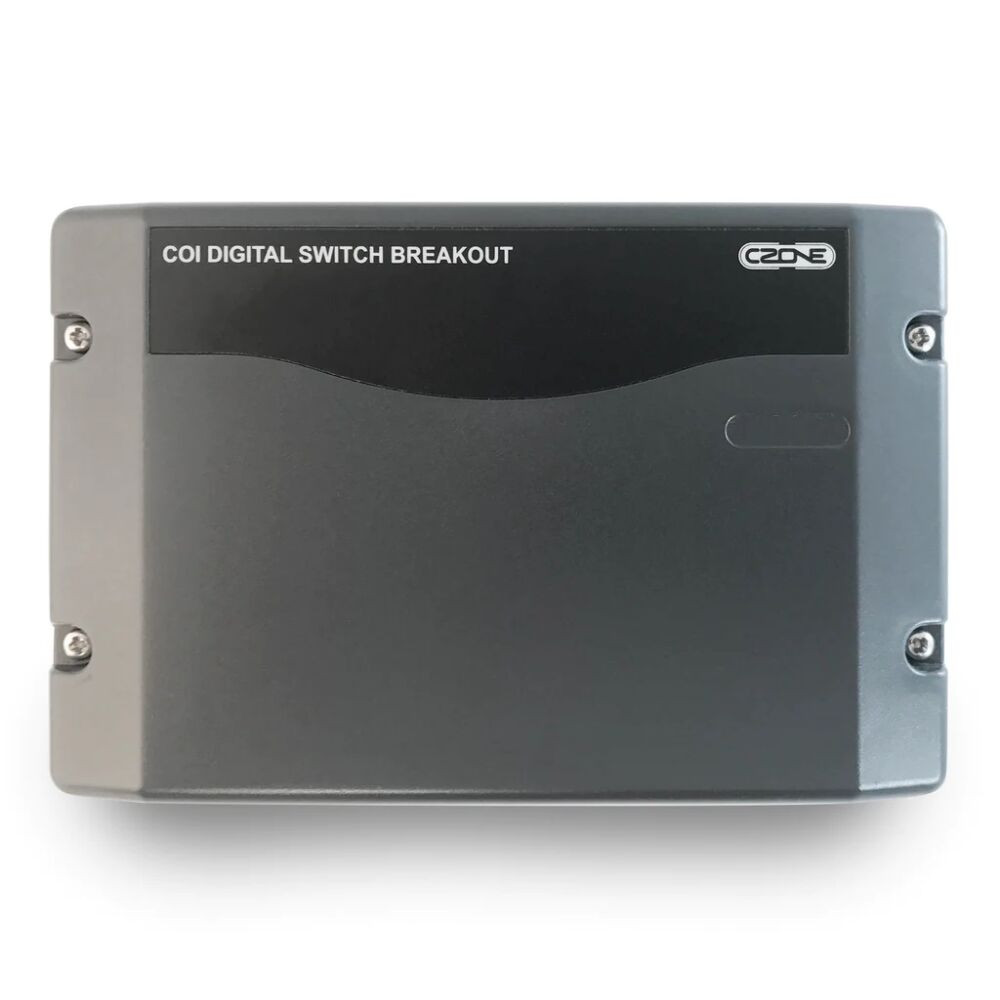

CZone Combined Output Interface (COI) Digital Switch Breakout 6 Way

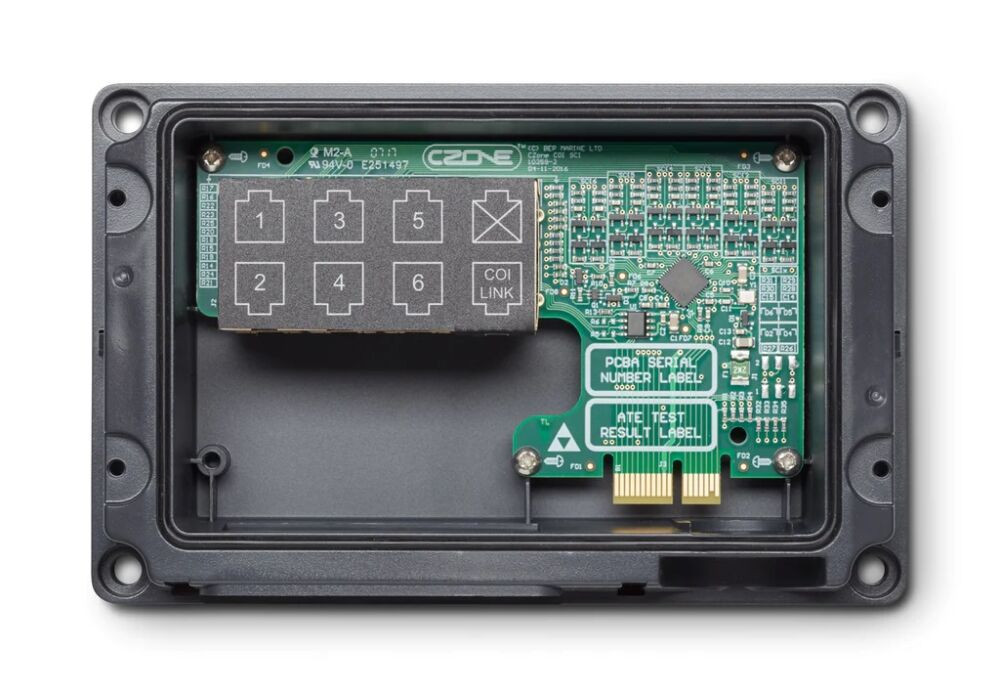

The COI Digital Switch Breakout (DSB) is the interface between the Combination Output Interface (COI) and up to six CZone digital switches (push button or Rocker). The digital switches include dimmable LED backlighting, systems on, fault codes and a plug and play harness simplifying installation.

Features

• Connect up to 6 digital switches to the COI.
• Support for single or double throw switches (up to 12 programmable switch points).
• Uses existing SCI switch cables with options for Rocker or push button plugs at various lengths.
• Digital switches include dimmable backlighting for ‘systems on’ and fault codes.
• IPx5 water ingress protection.
• Including 2 mtr DSB to COI cable.

Info

Input voltage (DCV):

12/24

Current (A):

25

Network Protocol:

NMEA2000

Wired Protocol:

Ethernet

Number of outputs:

16

Number of inputs:

8

Digital Switching System category:

DC Interfész

Water resistance rating:

ipx5

Website:

https://www.mastervolt.com/products/dc-interfaces/...

Weight:

476.3 g/db

Technical specification

Out of Package Height (metric)	115 mm
Out of Package Width (metric)	153 mm
Out of Package Depth (metric)	225 mm
Each in Package Height (in) *	4.5
Each in Package Width (in) *	6
Each in Package Length/Depth (in) *	8.2
Each in Package Weight (oz) *	16.8
