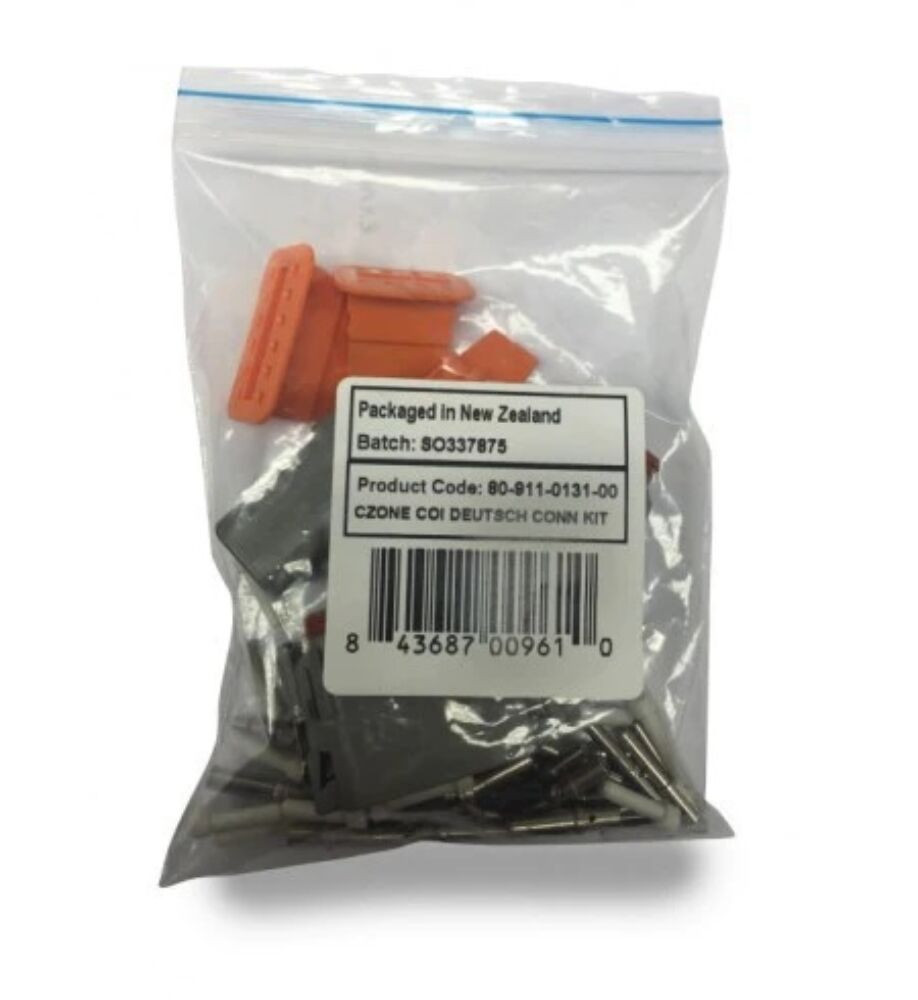

CZone Combined Output Interface (COI) Deutsch Connector Kit

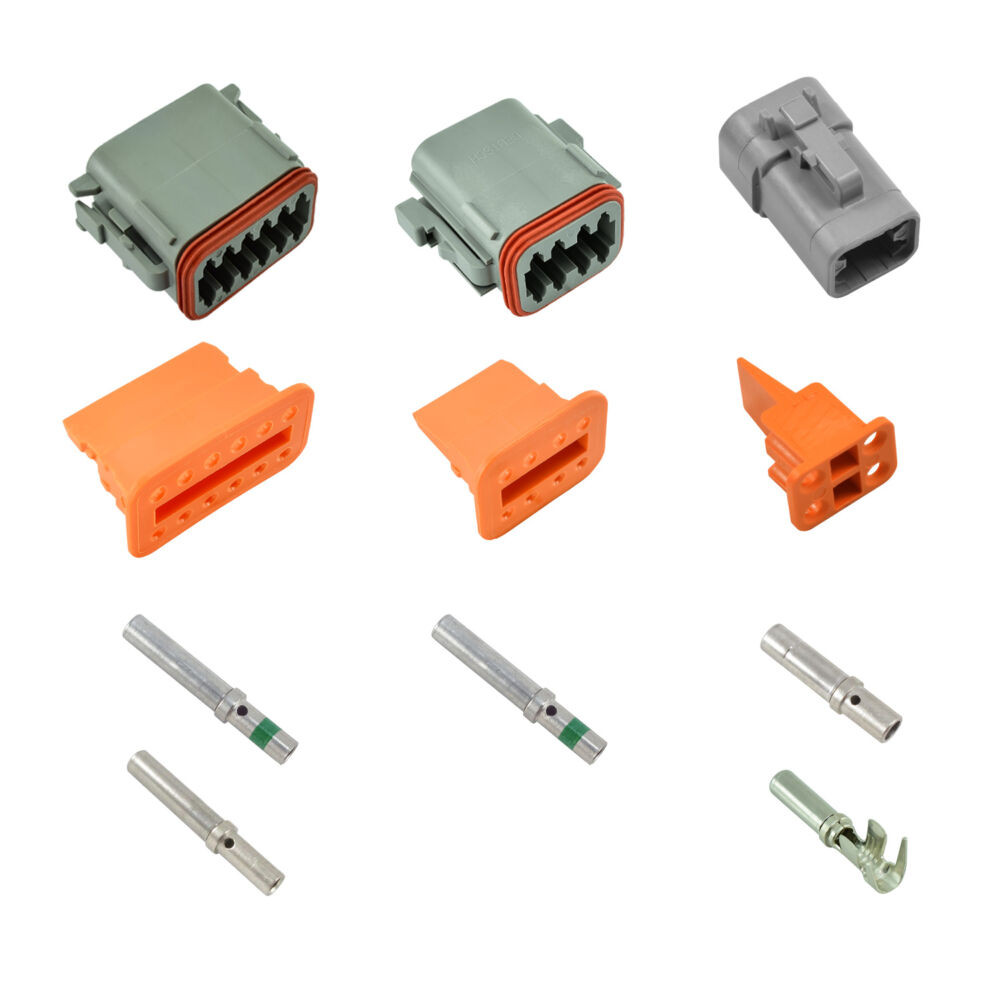

Deutsch Connector Kit contains Deutch Connectors, Locking Wedges and Contact Pins necessary to connect bare wires to Control1/Combination Output Interface High Outputs (DTP 4-Way), Low Outputs (DT 12-Way) and monitoring Inputs (DT 8-Way).

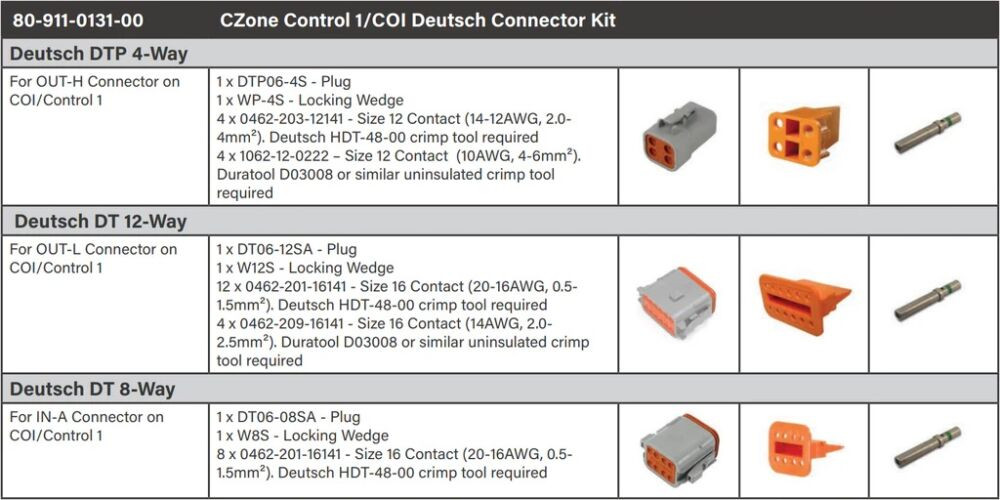

• 1 x DTP06-4S - Plug
• 1 x DT06-12SA - Plug
• 1 x DT06-08SA - Plug
• 1 x WP-4S - Locking Wedge
• 1 x W12S - Locking Wedge
• 1 x W8S - Locking Wedge
• 4 x 0462-203-12141 - Size 12 Contact (14-12AWG, 2.0-4mm²)
• 4 x 0462-209-16141 - Size 16 Contact (14AWG, 2.0-2.5mm²)
• 4 x 1062-12-0222 – Size 12 Contact (10AWG, 4-6mm²)
• 20 x 0462-201-16141 - Size 16 Contact (20-16AWG, 0.5-1.5mm²)





Info

Digital Switching System category:

Kiegészítő

Website:

https://www.mastervolt.com/products/dc-interfaces/...

Weight:

68.04 g/db

Technical specification

Each in Package Height (in) *	0.8
Each in Package Width (in) *	4.5
Each in Package Length/Depth (in) *	5.1
Each in Package Weight (oz) *	2.4
