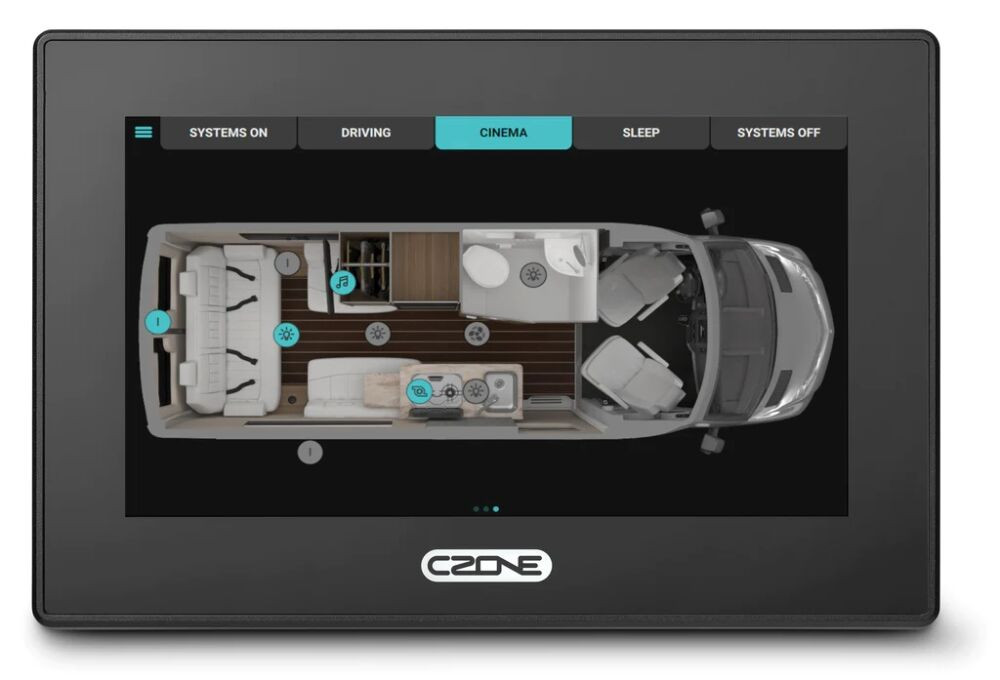

CZone Touch 7 Kit

Introducing the CZone Touch 7. With an excellence 7" IPS LCD panel it can be viewed from any angle. The Touch 7 features all new electronics with the fastest dual core processor ever in a CZone Touch display and built in Wi-Fi connectivity and Ethernet for tablet pairing. Installation is easy with front mount installation and screwless rear access, shallow 35mm mounting depths (including cable) and a wide 8-32V DC voltage range. The Touch 7 also uses the familiar and easy to use CZone 2.0 User Interface, customizable for any OEM. The Touch 7 is primarily designed for RV applications, and any marine application should be reserved for parts of the vessel that remain dry.



• Easy to use touch interface
• Glass dash styling
• 24 bit color for better color accuracy and contrast
• High resolution 1024 X 600 pixel for sharp and clear images
• 500 nit brightness dimmable for night time viewing
• Built in Wi-Fi Connectivity
• NMEA 2000 Compatible
• Kit includes mounting bracket, 1M Network drop and power connector

Info

Input voltage (DCV):

12/24

Current (A):

0.43

Display size (inch):

7

Network Protocol:

NMEA2000

Wireless Protocol:

Wi-fi

Wired Protocol:

Ethernet/USB

Warranty:

Fogyasztói garancia

Water resistance rating:

ipx0

Brightness (nit):

500

Website:

https://www.mastervolt.com/products/displays/czone...

Weight:

700 g/db

Technical specification

General specifications
Operating voltage range	8-32 V DC
Screen	7.0” LCD display (optically bonded) with IPS technology, projected capacitive touchscreen
Resolution	1024 x 600 pixels
Colour depth	24-bit RGB
Brightness (cd/m2)	500
Processor	NXP / Freescale i.MX6DL Dual-Cortex A9
Interfaces	USB 2.0, Ethernet, NMEA 2000, WiFi
Operating temperature	-20 °C to 70 °C -4 °F to 158 °F
Dimensions, hxwxd	195 x 130 x 41 mm 7.7 x 5.1 x 1.6 inch
Weight	0.7 kg 1.5 lb
Delivered with	mounting bracket, 1 mtr NMEA 2000 drop cable and power connector
Compliance	CE, FCC, RCM



Technical specifications
Power consumption	430 mA at 12 V (operating - backlight 100 %) - 130 mA at 12 V (standby – backlight off )
Temperature range (storage/non operating)	30 °C to 80 °C 86 °F to 176 °F
Protection degree	none, IPx0 (Touch 7 has been designed primarily for RV applications, any marine application should be reserved for parts of the vessel that remain dry)
DC power connector	Phoenix 1777992 MSTB 2,5 / 3-STF-5,08
