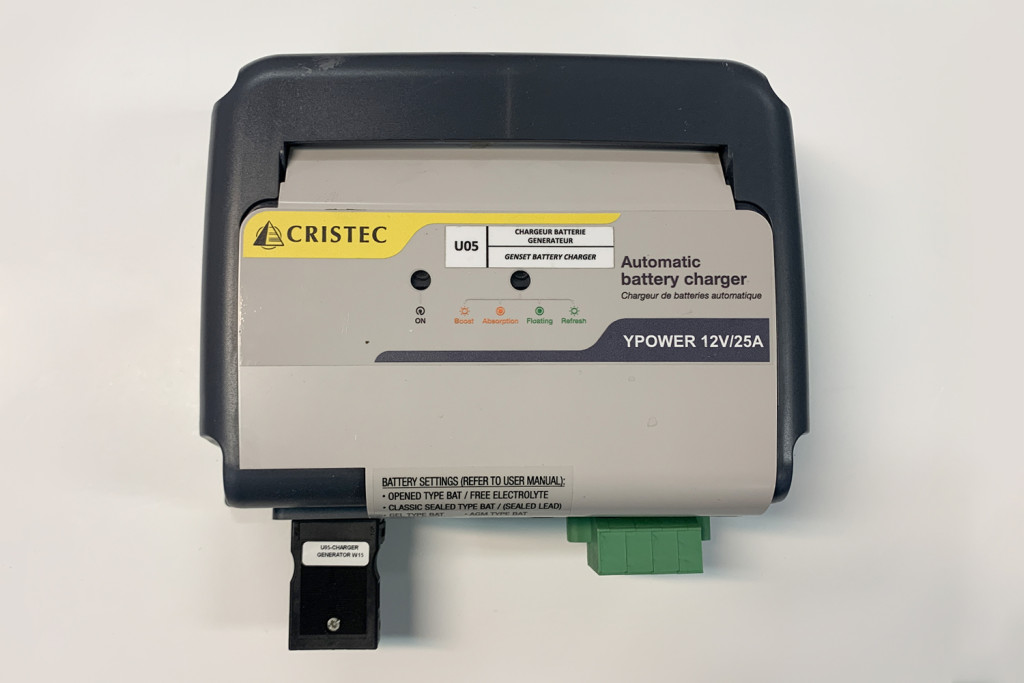

Cristec YPOWER 12V/25A 3 output

With more than 150,000 battery chargers in use around the world, CRISTEC is one of the world's most reliable manufacturers in the field of battery charging technology. With the YPOWER line, CRISTEC introduces the fifth generation of chargers to the market. Manufacturing in France ensures consistent high quality workmanship and reflects the reliability and performance of CRISTEC products.

The YPOWER chargers feature an impressive, robust construction and offer a high level of reliability and efficiency. Specially designed for rough maritime use, CRISTEC devices are used on recreational boats, yachts, commercial vessels and in industry.

CRISTEC YPOWER chargers can deliver their full power at temperatures of up to 60°C. These chargers can thus be installed in extremely hot environments, such as an engine compartment.

Features

Silent operation

CRISTEC is one of the few manufacturers to offer fanless chargers with an output of up to 40A at 12V and 20A at 24V. No fans results in silent operation and increased service life of the charger. This means you can even install units in the bunk, without disturbing your sleep.

Thermal performance

CRISTEC chargers deliver full power, even at temperatures of up to +60°C. They can thus be installed in extremely hot environments, such as an engine compartment. The CRISTEC YPOWER 12V/40A is ignition protected according to SAE J1171 and ISO8846 and ideal for the engine compartment.

Easy to install

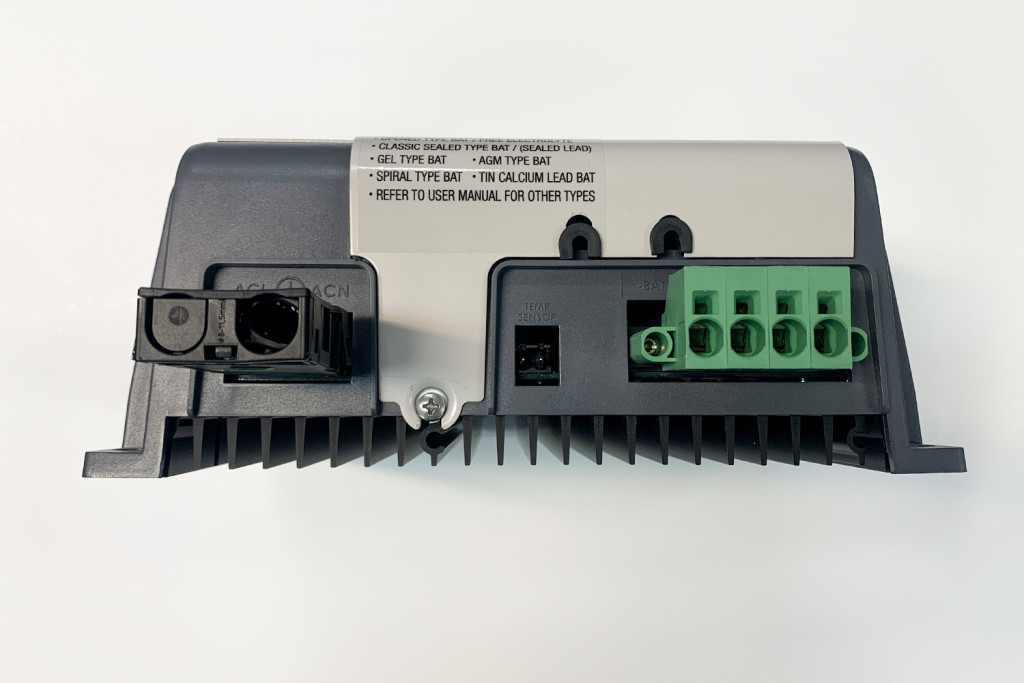

Quick & reliable electrical connection thanks to the supplied plug connectors. Delivery includes a WAGO WINSTA 770-103 connector for AC connection and a Phoenix Contact connector for DC connection. Detailed operating instructions guide you step by step through the connection process.

Highly versatile

The five-stage charging characteristic charges and maintains lead acid, GEL, AGM and lithium ion phosphate (LiFePO4) safely and efficiently with integrated BMS. Thanks to the large AC operating range of 90 V - 265 V, the charger can be used worldwide and is therefore particularly popular with round the world sailors.

Data

Article number:

CT-YPO12-25COMOE-HA

Website:

https://www.cristec.fr/english/our-products/batter...

Weight:

2.1 kg/pcs

Technical specification

Battery voltage:	12V DC
Charging current:	25 A
Mains AC voltage:	90 - 265 VAC
Power consumption:	1.7 A @ 230 VAC / 3.4 A @ 115 VAC
Output:	356 W
Recommended battery capacity:	200 - 300 Ah
Exchangeable AC fuses:	T6,3A (250 V) Schurter MST 250 Ref.: 0034.6623 (F101)
Charging outputs:	3 (one output for charging the starter battery)
Charging curves:	IU or IUoU (adjustable via DIP switch)
Supported battery types:	Lead acid, GEL, AGM, LiFePO4
Ambient temperature:	-20°C to +60°C (at 230 VAC)
Dimensions:	236 x 180 x 96 mm
Weight:	2.1 kg
Recommended mounting screws:	M5 round head (4x)
Waterproof:	IP22
