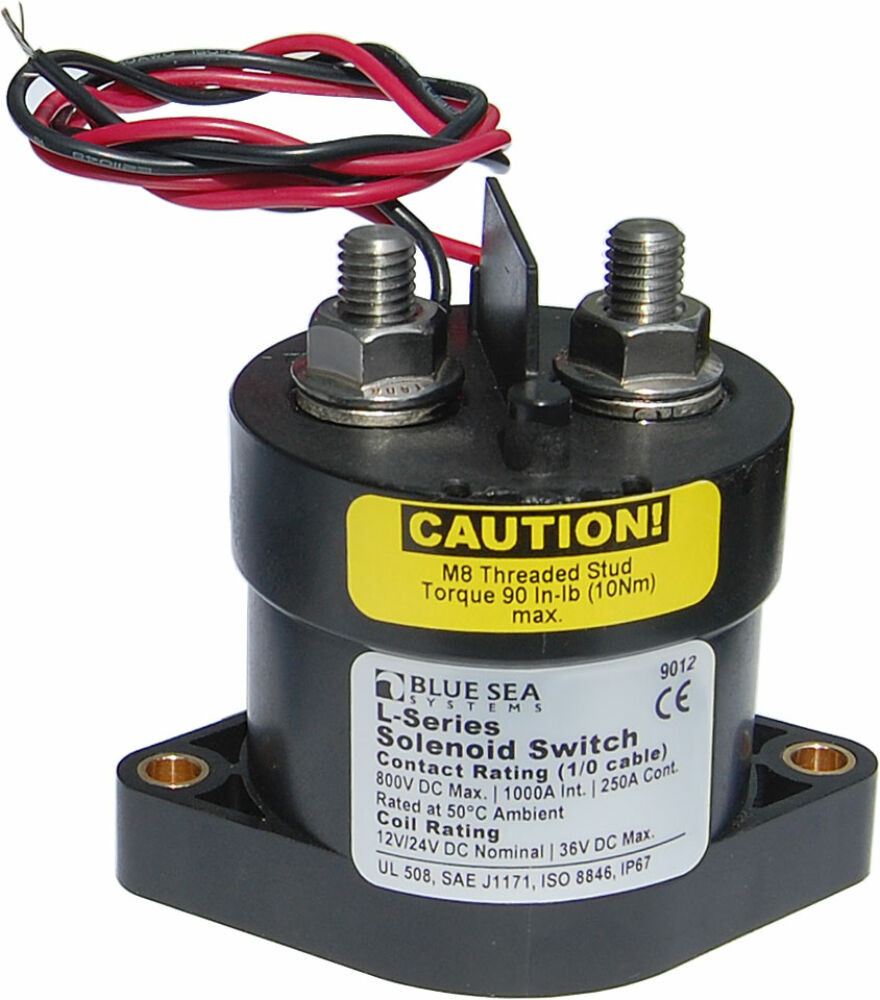

Blue Sea Systems Solenoid L 250A 12/24V, (Szolenoid)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
9012-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
- Continous duty, SPST - Normally Open
- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- 450 Amp Class
- Activated by a low amperage ON-OFF switch mounted anywhere
- Coil control circuit minimizes heating and amperage draw
- No external coil suppression required
Bundle offers
Blue Sea Systems Solenoid L 250A 12/24V
- Continous duty, SPST - Normally Open
- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- 450 Amp Class
- Activated by a low amperage ON-OFF switch mounted anywhere
- Coil control circuit minimizes heating and amperage draw
- No external coil suppression required
Input voltage (DCV):
12/24
Current (A):
250
Connectable Circuit:
DC
Energy distribution category:
Akkumulátor kapcsoló
Main switch Current (A):
250
Remote control:
Igen
Switch position:
OFF/ON
Switch mechanism:
Relé
Weight:
450 g/db
| Specifications | |
|---|---|
| Control Circuit Connection | 20 AWG Tinned Wire |
| Nominal Voltage | 12V DC 24V DC |
Coil Function
|
Normally Open |
| Amperage Operating Current continuous | 0.13A @ 12 V 0.07A @ 24 V |
| Input Voltage | 9-36V DC |
| Amperage Operating Current when changing state | 3.6A |
| Terminal Stud | Serrated Flange Nut |
| Terminal Stud Torque | 90 in-lb (10.17 Nm) |
| Continuous Rating
|
250A
300A 400A 450A
|
| Intermittent Rating
|
275A (5 min)
400A (5 min) 500A (5 min) 600A (5 min)
|
| Cranking Rating 30 sec
|
1,000A
1000A DC |
| Contact Form | SPST-NO |
| Inrush Rating: 0.25 sec (10 repeats) | 2000A |
| Mounting Screw | #10 or M5 |
| Stud Material | Stainless Steel |
| Terminal Stud Length | 0.66in (16.76 mm) |
| Terminal Stud Size | 5/16" (M8) |
| Weight | 1Lb (0.45 Kg) |
| Weight | 1.00lb (0.45 kg) |
