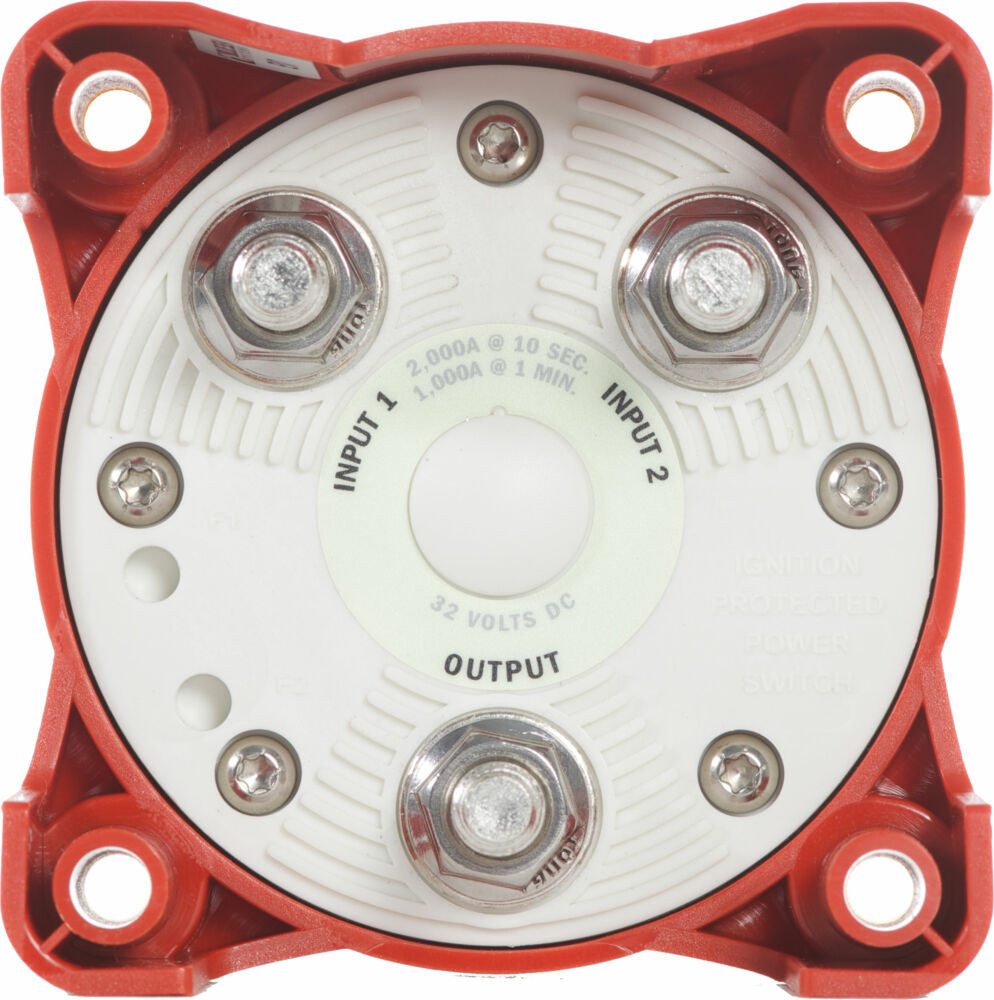

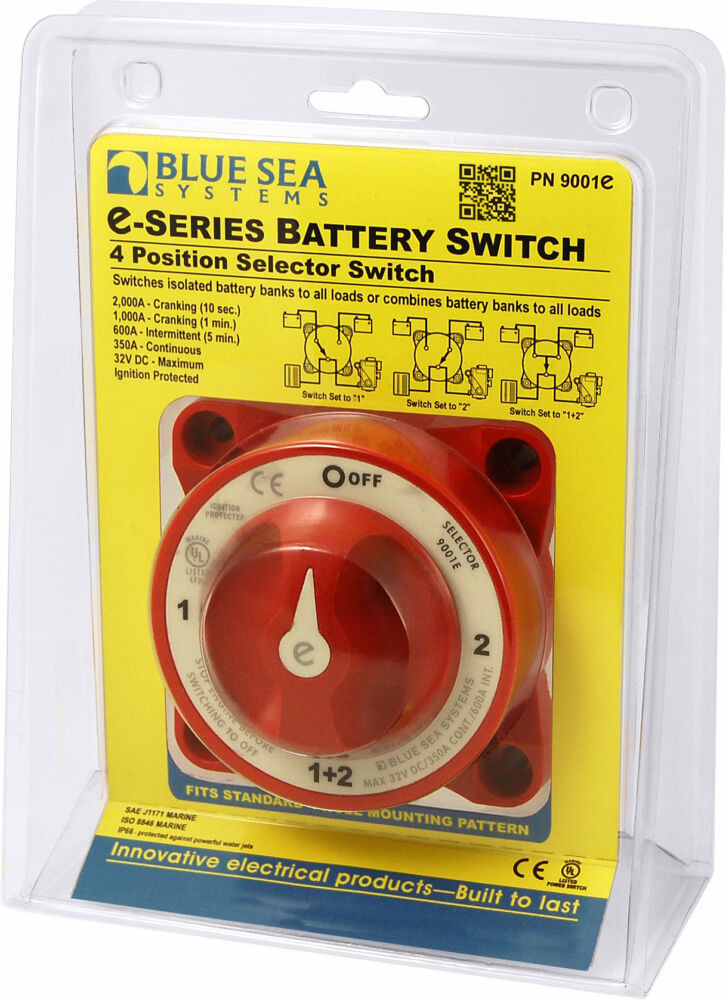

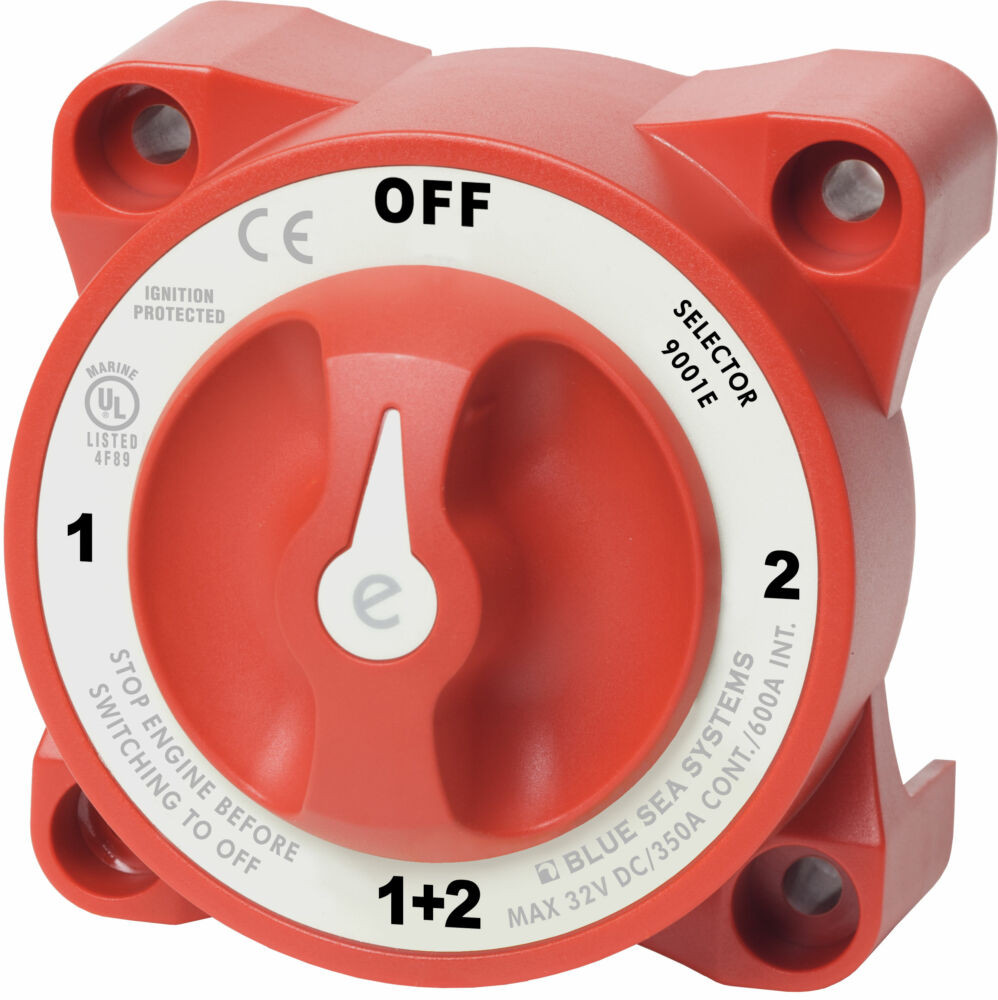

Blue Sea Systems Switch Battery e-Series Selector 4 Position Red, (Akkumulátor kapcsoló)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
9001E-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Switches isolated battery banks to all loads or combines battery banks to all loads.
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Bundle offers
Blue Sea Systems Switch Battery e-Series Selector 4 Position Red
Switches isolated battery banks to all loads or combines battery banks to all loads
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Current (A):
350
Connectable Circuit:
DC
Energy distribution category:
Akkumulátor kapcsoló
Main switch Current (A):
350
Switch position:
OFF/1/2/1+2
Switch mechanism:
Mechanikus
Max Voltage:
32V DC
Weight:
520 g/db
| Specifications | |
|---|---|
| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
Alternator Field Disconnect
|
No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating
|
350A |
| Intermittent Rating
|
600A (5 min) |
| Cranking Rating 30 sec
|
1200A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.15Lb (0.52 Kg) |
| Weight | 1.30lb (0.59 kg) |
