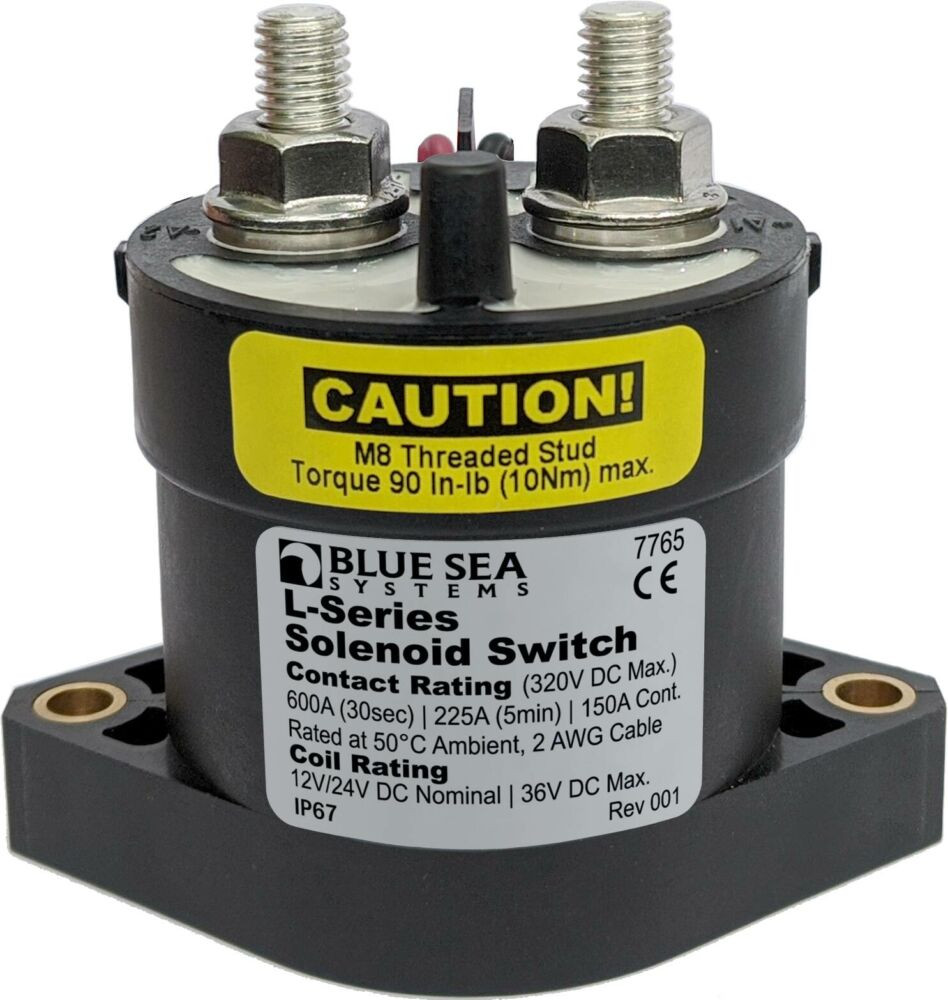

Blue Sea Systems Solenoid L 150A 12/24V, (Szolenoid)

Item number:
BSS-7765
Blue Sea Systems Solenoid L 150A 12/24V, (Szolenoid)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
7765-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Ideal for switching DC subpanels, thrusters, windlass, inverters and other medium-amp DC loads.
Bundle offers
  • Details
  • Data
  • Technical specification
Details

Blue Sea Systems Solenoid L 150A 12/24V

Ideal for switching DC subpanels, thrusters, windlass, inverters and other medium-amp DC loads.

  • Continuous duty, SPST - Normally Open
  • Hermetically sealed contacts
  • Activated by a low amperage ON-OFF switch mounted anywhere
  • Coil control circuit minimizes heating and amperage draw
  • No external coil suppression required
Data
Input voltage (DCV):
12/24
Current (A):
150
Connectable Circuit:
DC
Energy distribution category:
Akkumulátor kapcsoló
Main switch Current (A):
150
Switch position:
OFF/ON
Website:
https://www.bluesea.com/products/7765/Solenoid_L-S...
Weight:
430 g/db
Technical specification
Specifications
Control Circuit Connection 22 AWG Tinned Wire
Nominal Voltage 12V DC
24V DC
Coil Function Normally Open
Maximum Voltage 320V DC
Amperage Operating Current continuous 0.13A @ 12 V
0.07A @ 24 V
Input Voltage 9-36V DC
Amperage Operating Current when changing state 3.8A
Terminal Stud M8 (accepts 5/16" terminals)
Terminal Stud Torque 90 in-lb (10.17 Nm) max
Continuous Rating 150A
Intermittent Rating 225A (5 min)
Cranking Rating 30 sec 600A
Mounting Screw #10 or M5
Mounting Screw Torque 30 in-lb (3.39 Nm) max
15 in-lb (1.69 Nm) min
Operating Temperature Range –40°C to +85°C
Weight .95Lb (0.43 Kg)
