Blue Sea Systems Fuse Block SafetyHub 150
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
7748-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
An ignition protected fuse block with screw termination safe for use on gasoline powered boats.
Bundle offers

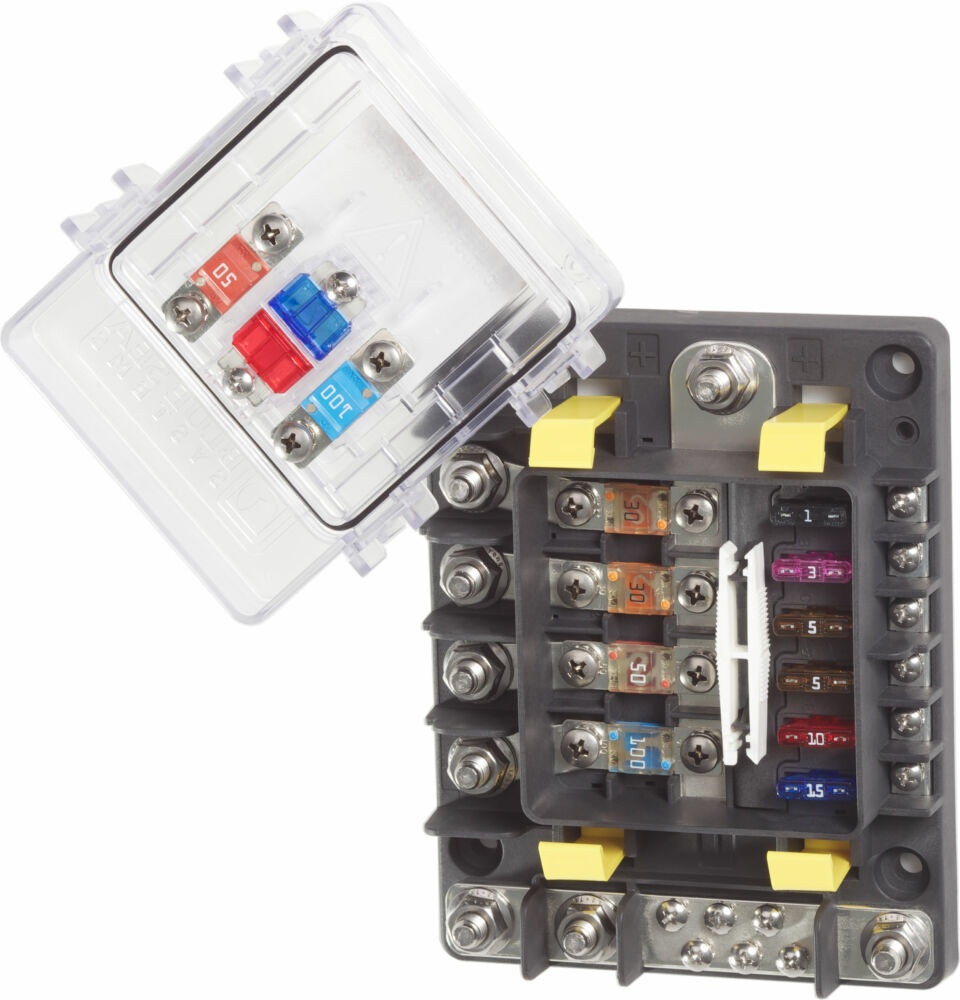

Blue Sea Systems Fuse Block SafetyHub 150
An ignition protected fuse block with screw termination safe for use on gasoline powered boats

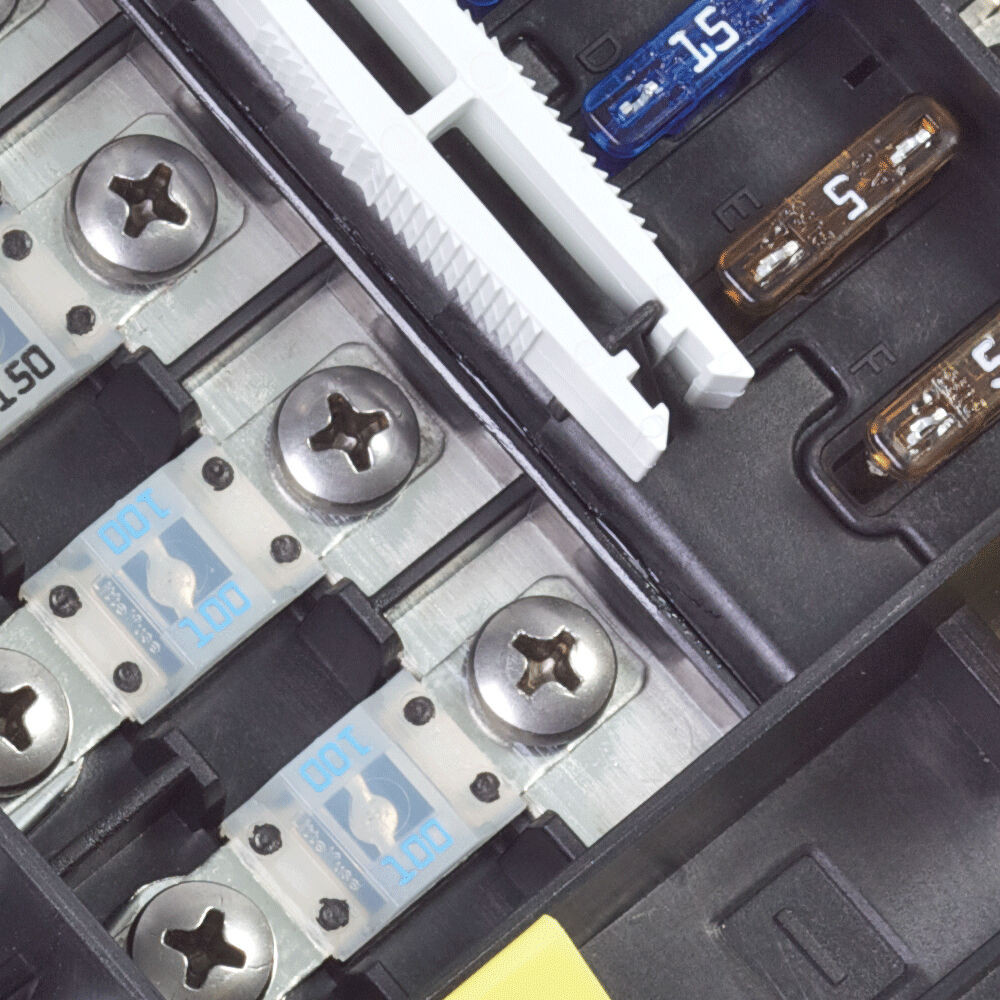

- Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
- Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights

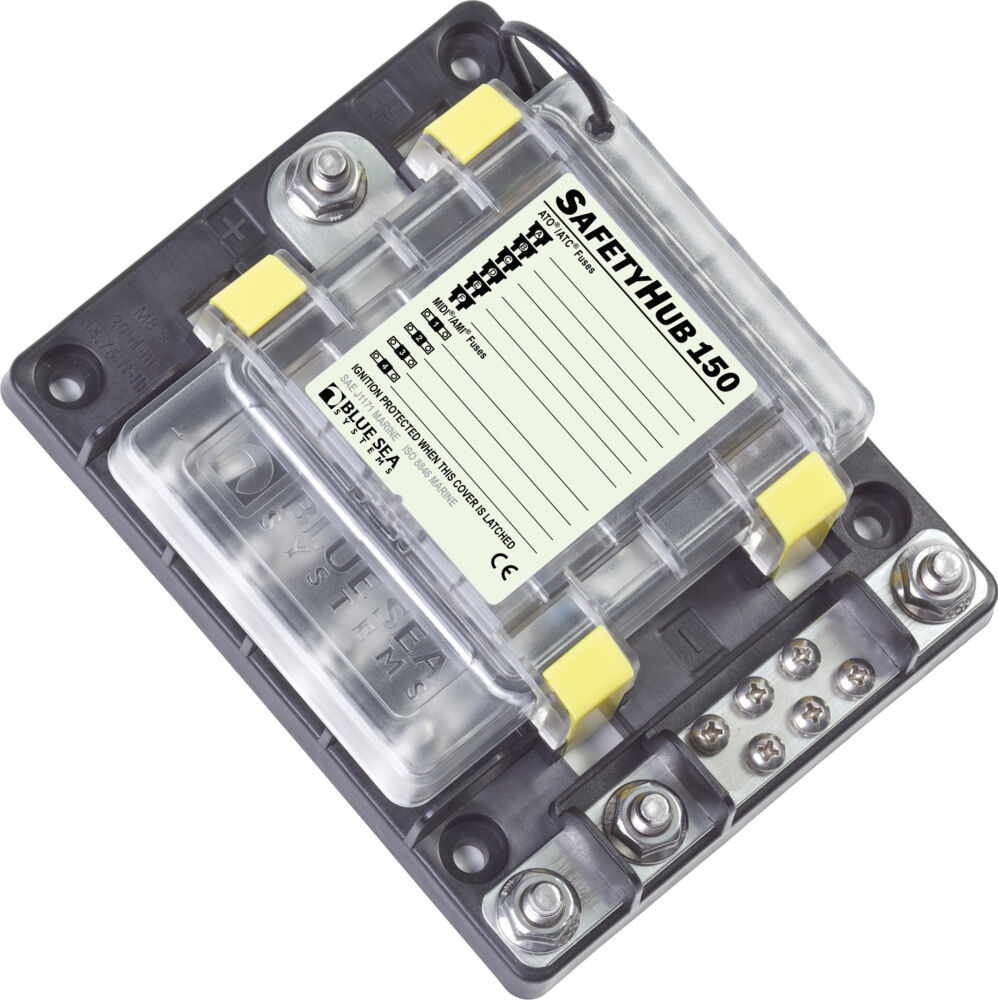

- Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements

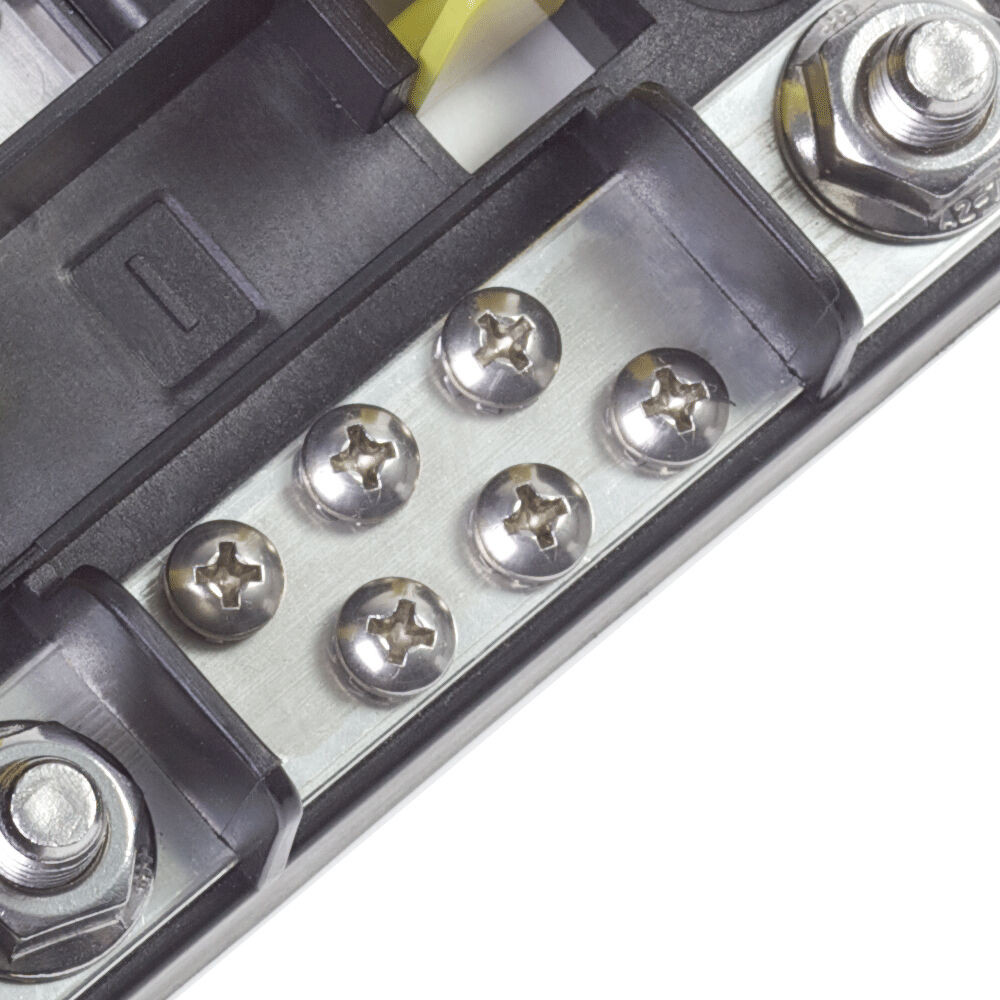

- Negative bus provides common location for negative connection
- Circuit identification label with write-on capability

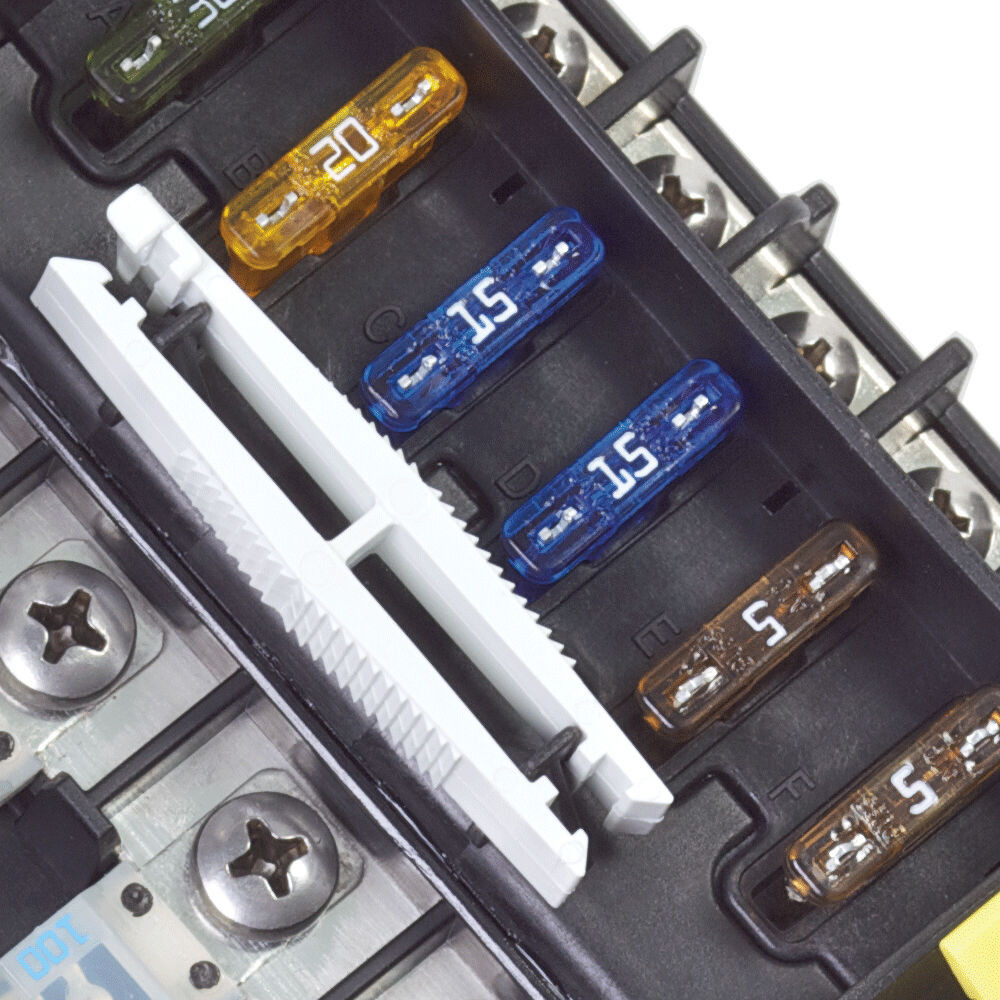

- Fuse puller easily removes ATO® or ATC® Fuses

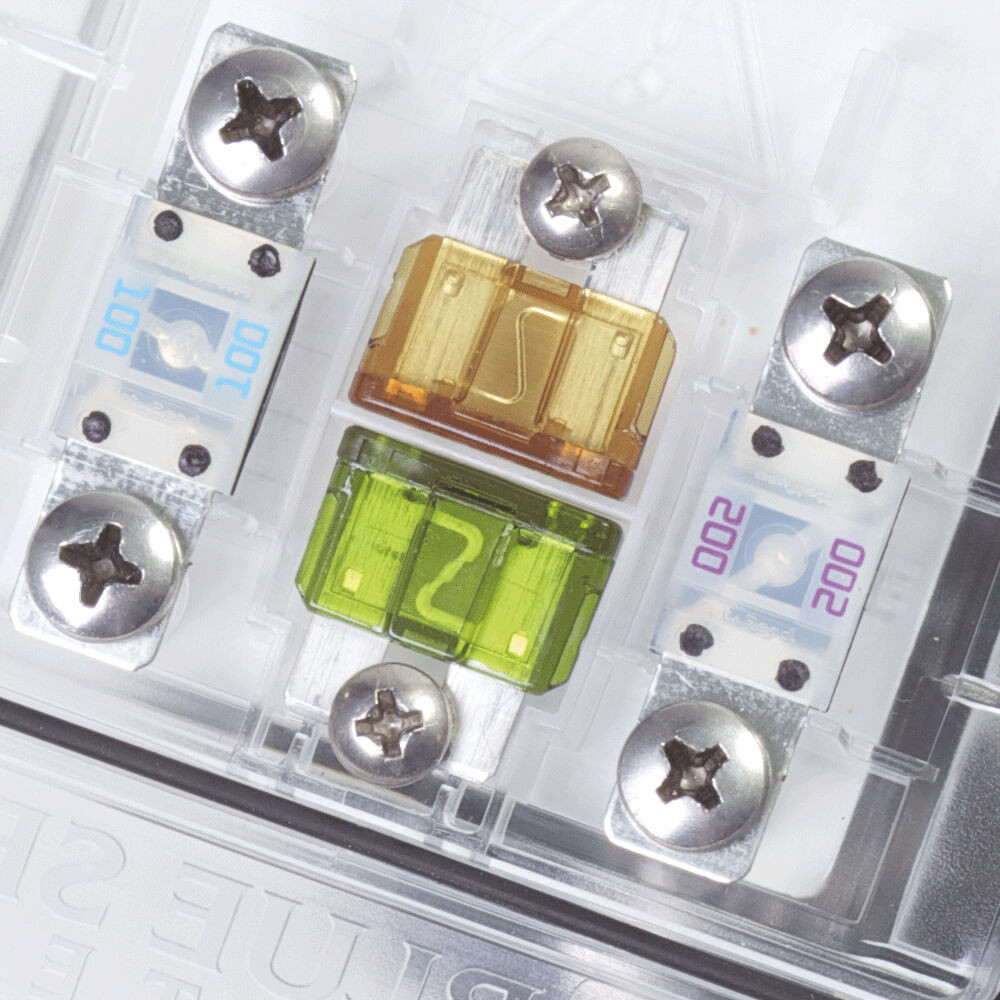

- Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
- One-piece stainless flange nuts ensure safe and secure connections
- Fuses sold separately
Input voltage (DCV):
12/24/32
Current (A):
150
Connectable Circuit:
DC
Energy distribution category:
Biztosíték és tartó
Type of fuse holder:
Kombinált
Number of fused circuits:
10
Weight:
1.59 kg/db
Selectable quantities:
1 db, 6 db, 11 db, 16 db, ...
| Specifications | |
|---|---|
| Circuits | 10 |
| Stud Size | M8 x 1.25 |
| Operating Voltage | 12V 24V 32V |
| Amperage Maximum Operating - combined | 200A
 350A 600A
|
| Recommended Ring Terminal | M8 (5/16") |
| Screw Torque, 8-32 | 18in-lb (2.03 Nm) |
| Screw Torque, M5 | 27in-lb (3.05 Nm) |
| Stud Torque | 180 in-lb (20.34 Nm) |
| Weight | 3.50lb (1.59 kg) |
