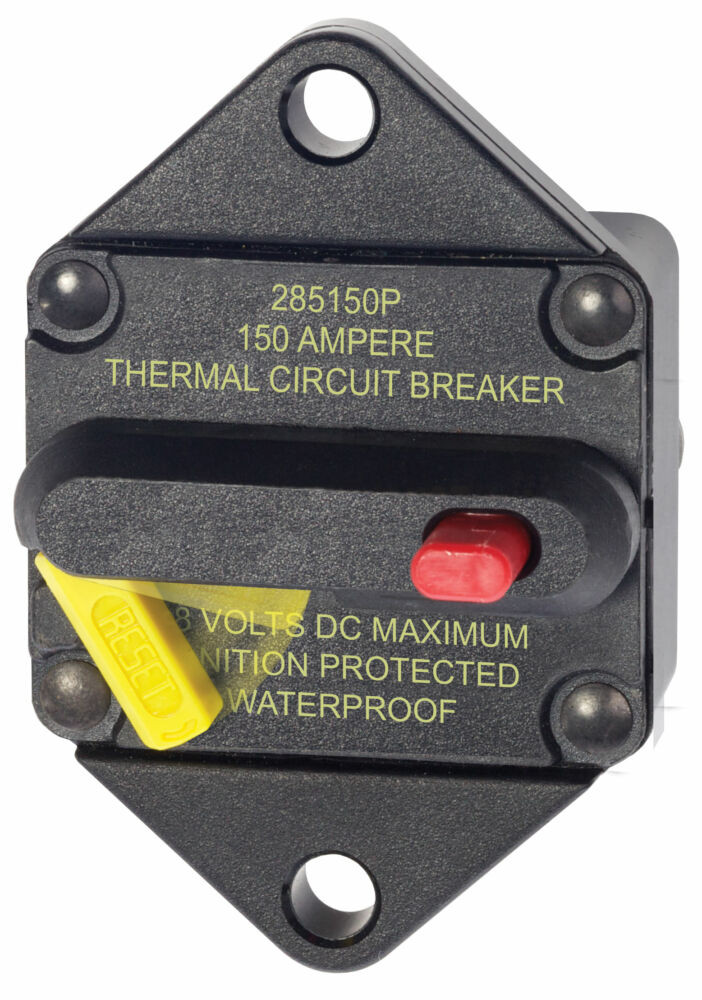

Blue Sea Systems Circuit Breaker, Bus 285 Panel 150A
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
7089-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
Bundle offers
Blue Sea Systems Circuit Breaker, Bus 285 Panel 150A
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
Current (A):
150
Connectable Circuit:
DC
Energy distribution category:
Hőkapcsoló
Max Voltage:
48V DC
Weight:
230 g/db
| Specifications | |
|---|---|
| Amperage | 150A |
| Maximum Voltage | 48V DC |
| Mounting | Panel Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud | M6 (accepts 1/4" Ring Terminal) |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
Interrupt Capacity
|
3000A @ 48V
|
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Weight | 0.50lb (0.23 kg) |
