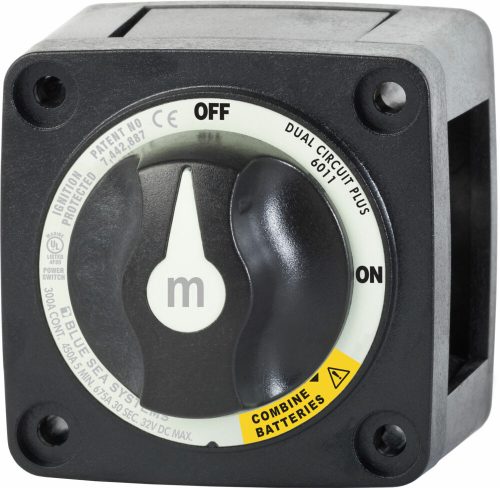

Blue Sea Systems Switch Battery m-Series Dual Circuit Plus Black

Price: 31 064 Ft
without VAT: 24 460 Ft+VAT (6 604 Ft)

Blue Sea Systems Switch Battery m-Series Dual Circuit Plus Black

Name: Blue Sea Systems Switch Battery m-Series Dual Circuit Plus Black
Brand: BLUESEASYSTEMS
SKU: BSS-6011200
Price: 31064 HUF

Price: 31 064 Ft
without VAT: 24 460 Ft+VAT (6 604 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

6011200-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Simultaneously switches two isolated battery banks or combines battery banks to all loads.

Make before break contact design allows switching between battery banks without power interruption

Blue Sea Systems Switch Battery m-Series Dual Circuit Plus Black

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Make before break contact design allows switching between battery banks without power interruption

Current (A):

300

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/1+2

Switch mechanism:

Mechanikus

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/6011200/m-Series_...

Weight:

360 g/db

Specifications
Switch Type	Dual Circuit Plus
Color	Black
Switch Positions	3
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.80Lb (0.36 Kg)
Weight	0.80lb (0.36 kg)
