Blue Sea Systems Switch Battery m-Series Selector 3 Position, (Akkumulátor kapcsoló)

Csomagajánlatok

• Details
• Info
• Technical specification
• Download User Manual

Details

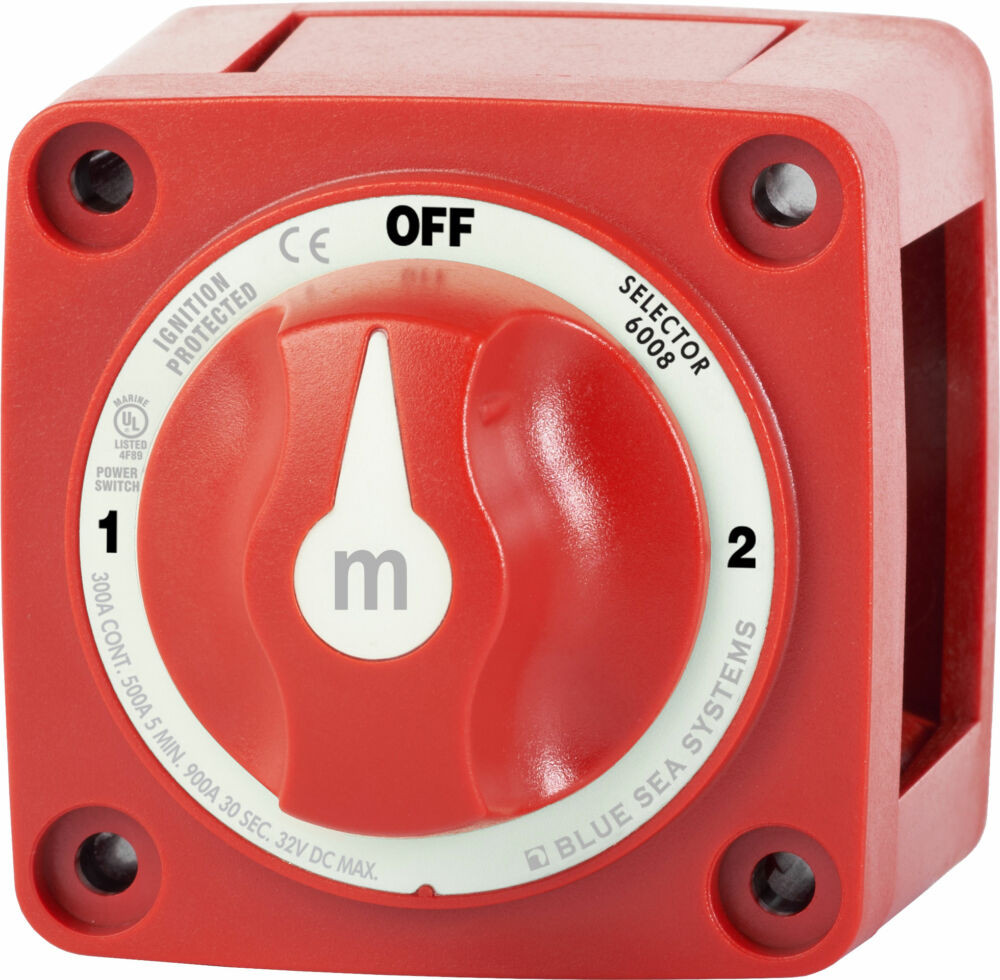

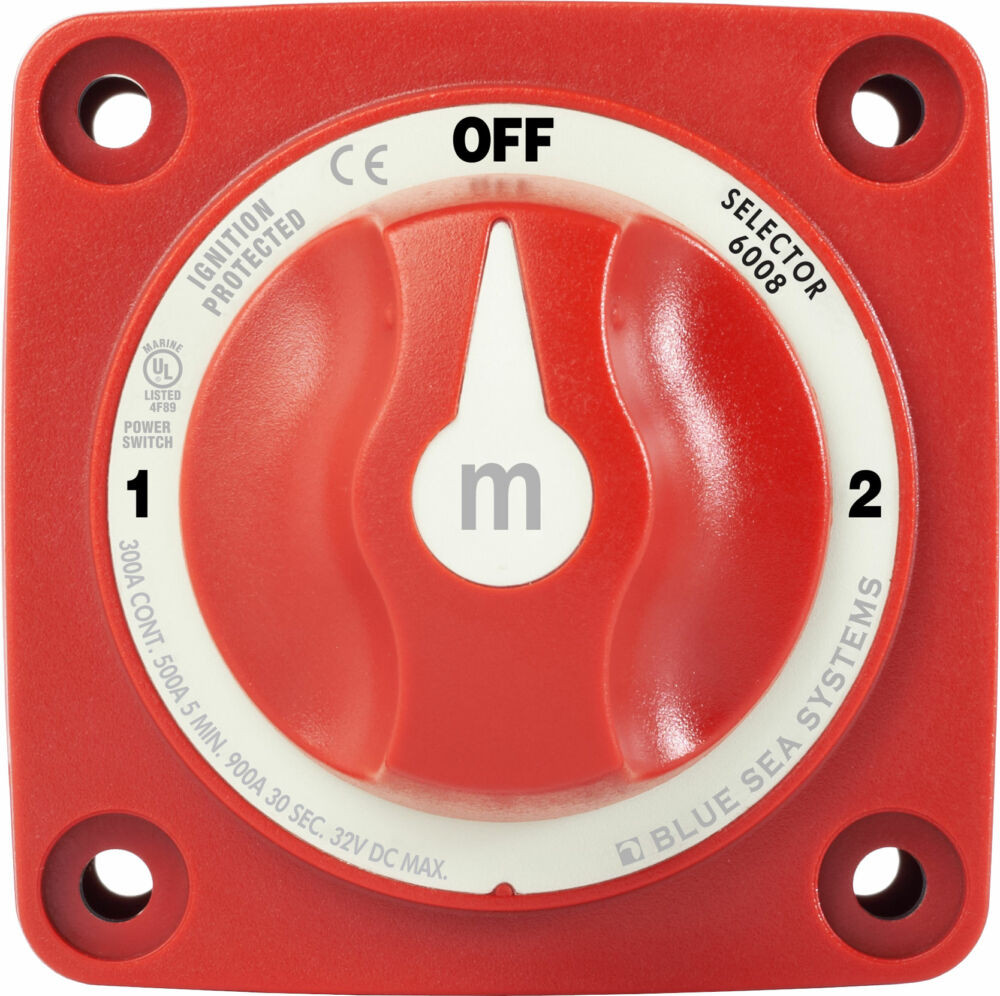

Blue Sea Systems Switch Battery m-Series Selector 3 Position

Switches a single battery to a single load group.

• Ignition protected—safe for installation aboard gasoline powered boats

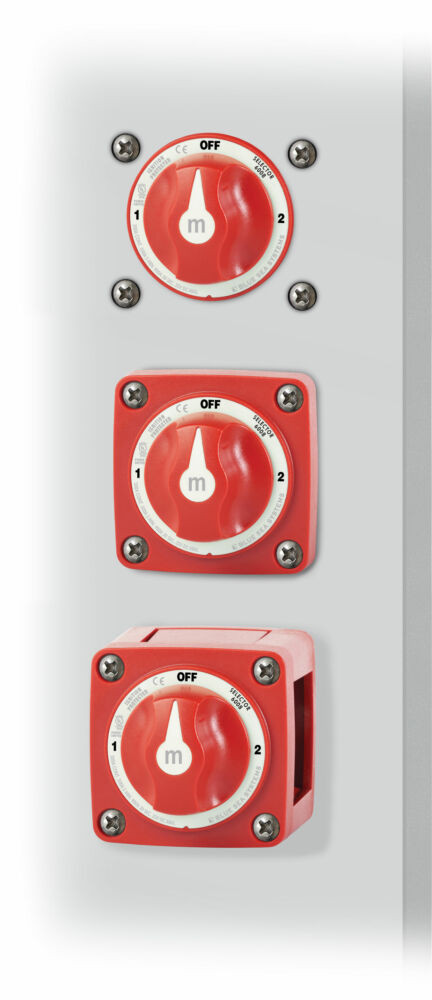

• Case design allows surface or rear panel mounting

Info

Current (A):

300

Connectable Circuit:

DC

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/1/2

Switch mechanism:

Mechanikus

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/6008/m-Series_Sel...

Weight:

350 g/db

Technical specification

Specifications
Switch Type	Selector 3 Position
Color	Red
Switch Positions	3
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 Min)
Cranking Rating 30 sec	900A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²) 4/0 AWG (130mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)

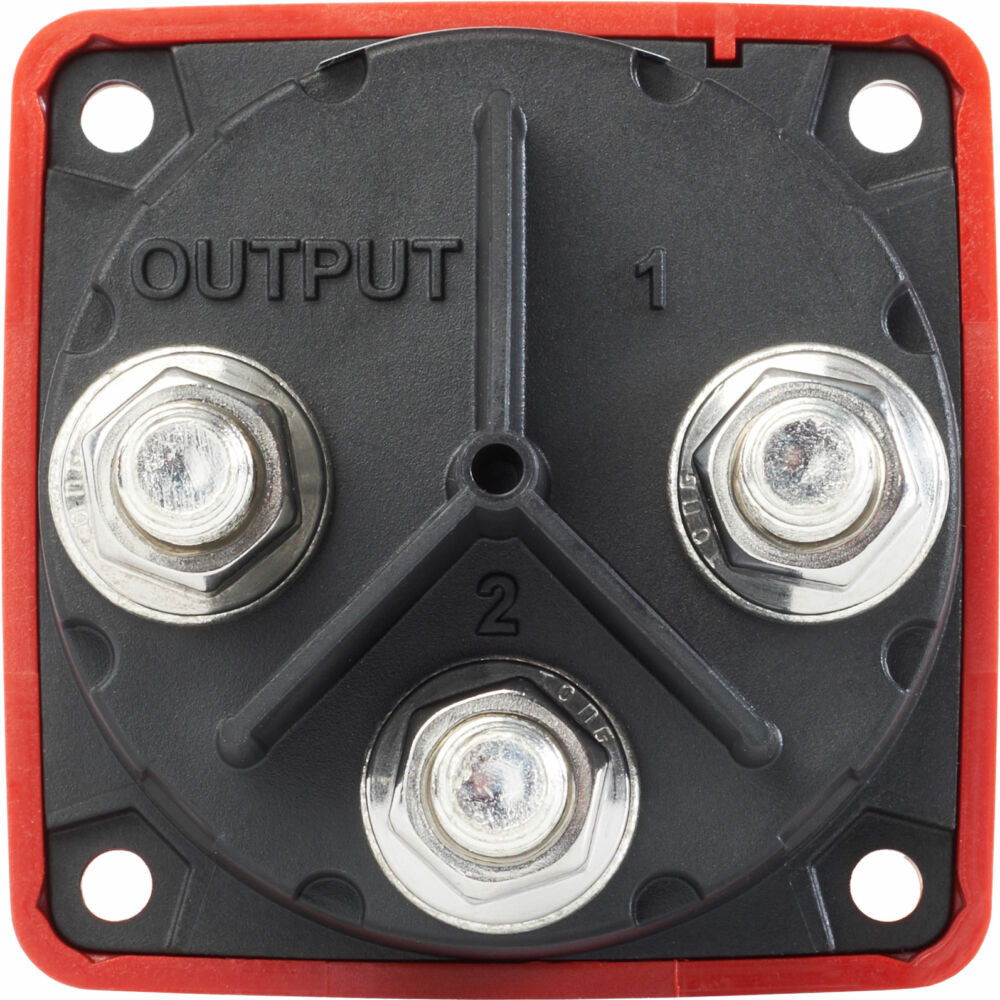

Terminal Stud Size	3/8" - 16 (M10)
Weight	0.77Lb (0.35 Kg)
