Blue Sea Systems Switch Battery m-Series ON/OFF With Knob, (Akkumulátor kapcsoló)

Price: 19 864 Ft
without VAT: 15 641 Ft+VAT (4 223 Ft)

Blue Sea Systems Switch Battery m-Series ON/OFF With Knob, (Akkumulátor kapcsoló)

Name: Blue Sea Systems Switch Battery m-Series ON/OFF With Knob, (Akkumulátor kapcsoló)
Brand: BLUESEASYSTEMS
SKU: BSS-6006
Price: 19864 HUF
Availability: InStock

In stock

Price: 19 864 Ft
without VAT: 15 641 Ft+VAT (4 223 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

6006-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats

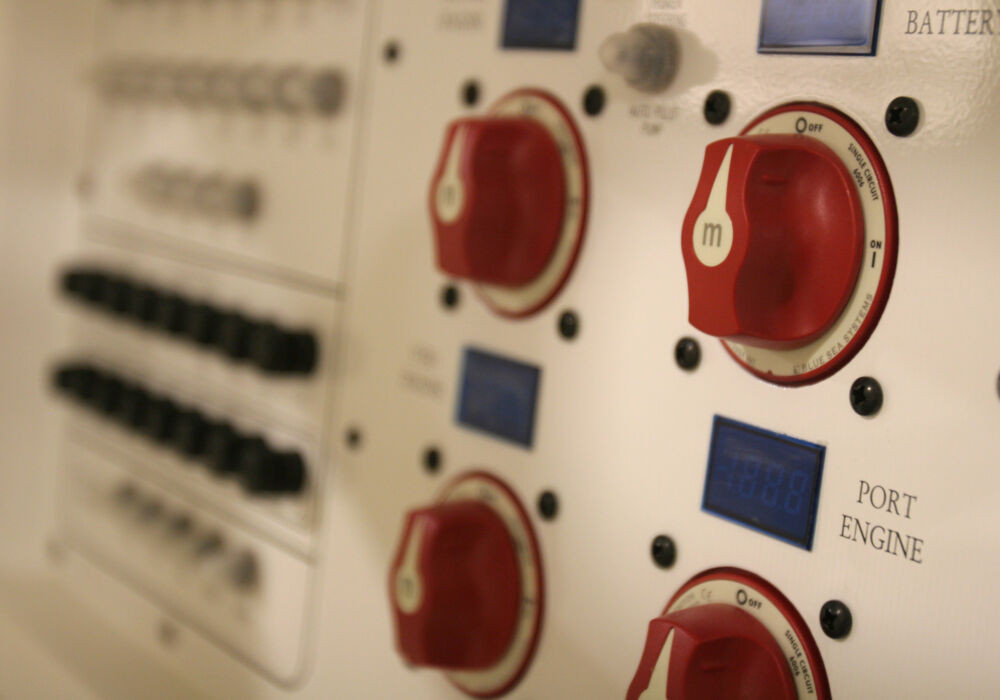

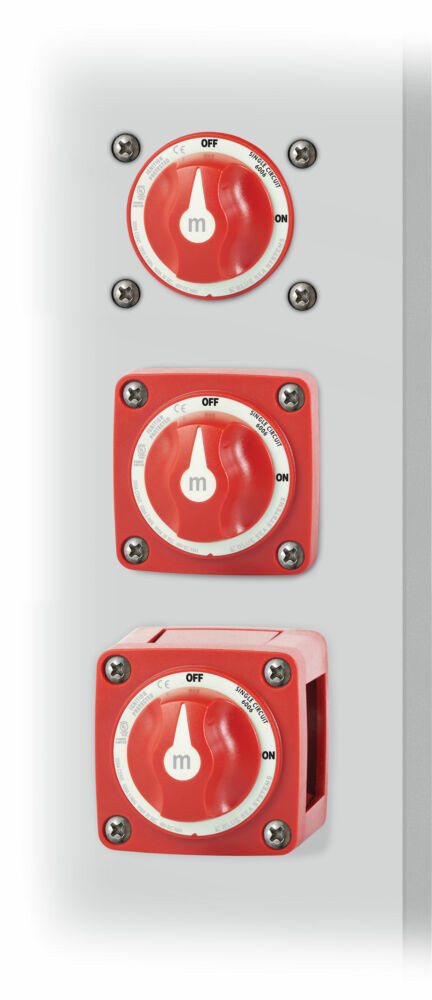

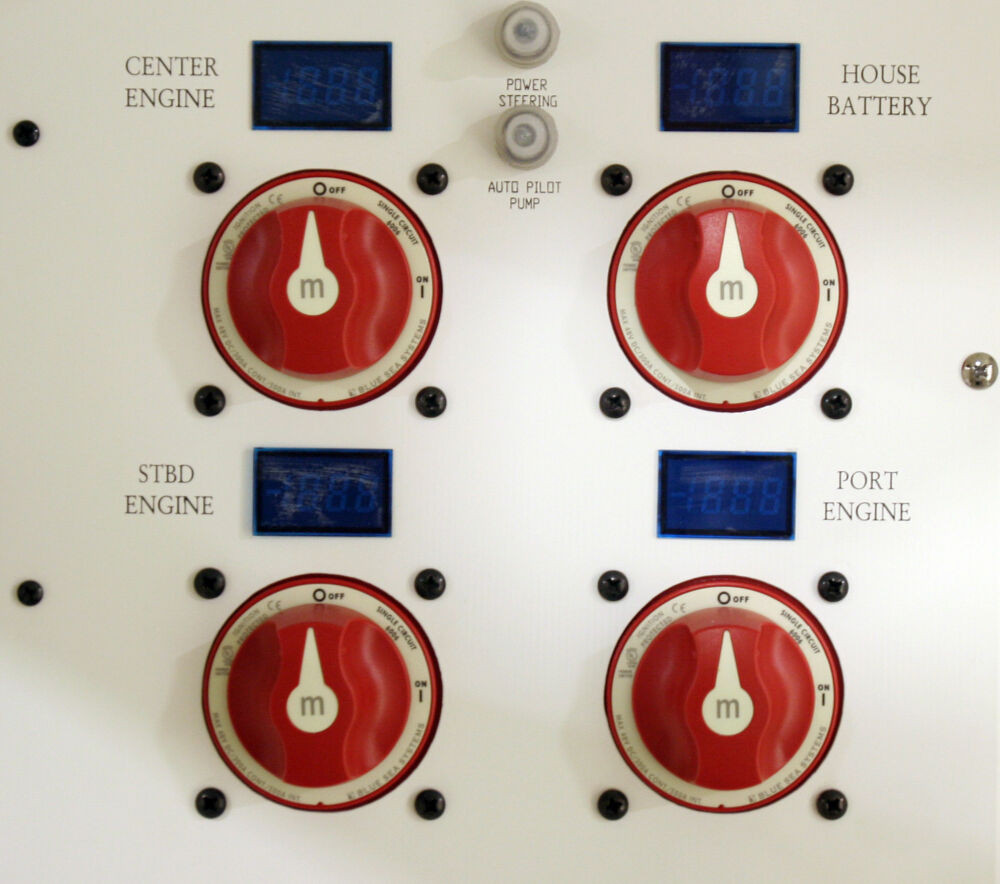

Case design allows surface, front panel, or rear panel mounting

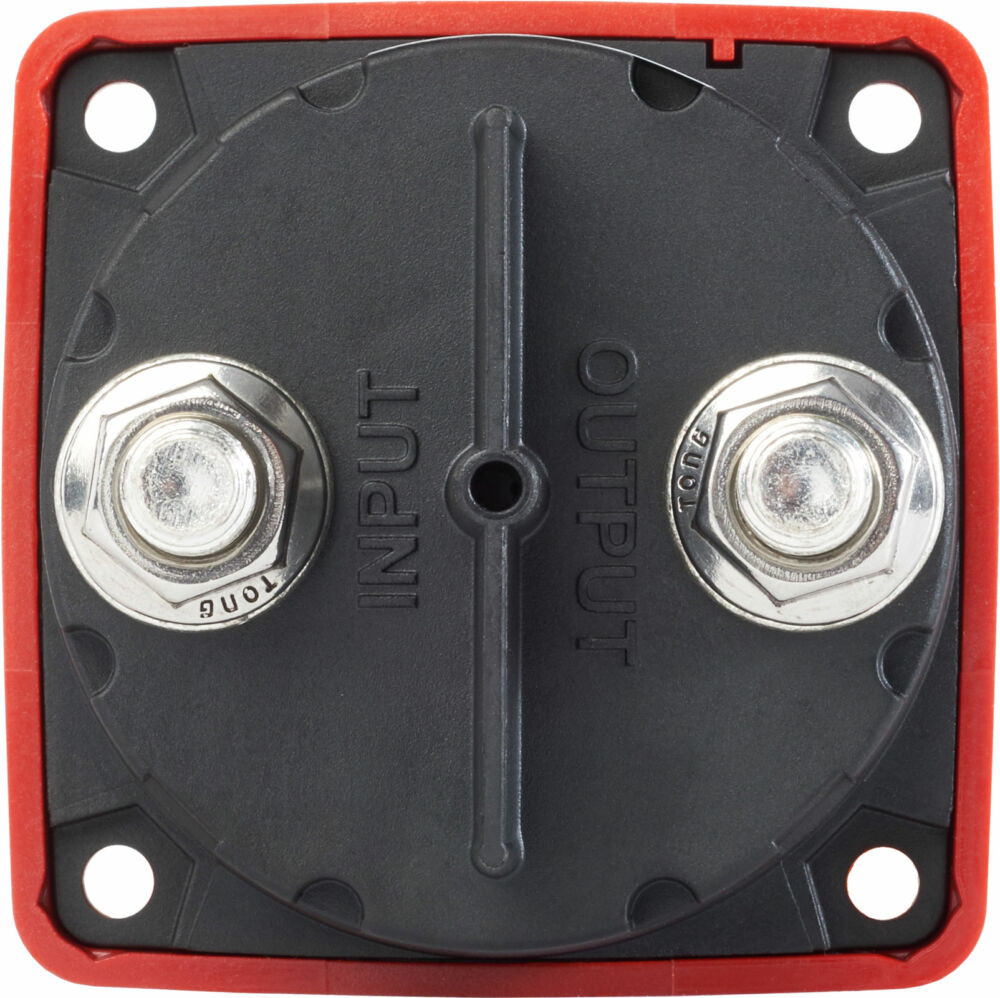

Isolating cover with snap-on sections protects rear contacts

Details

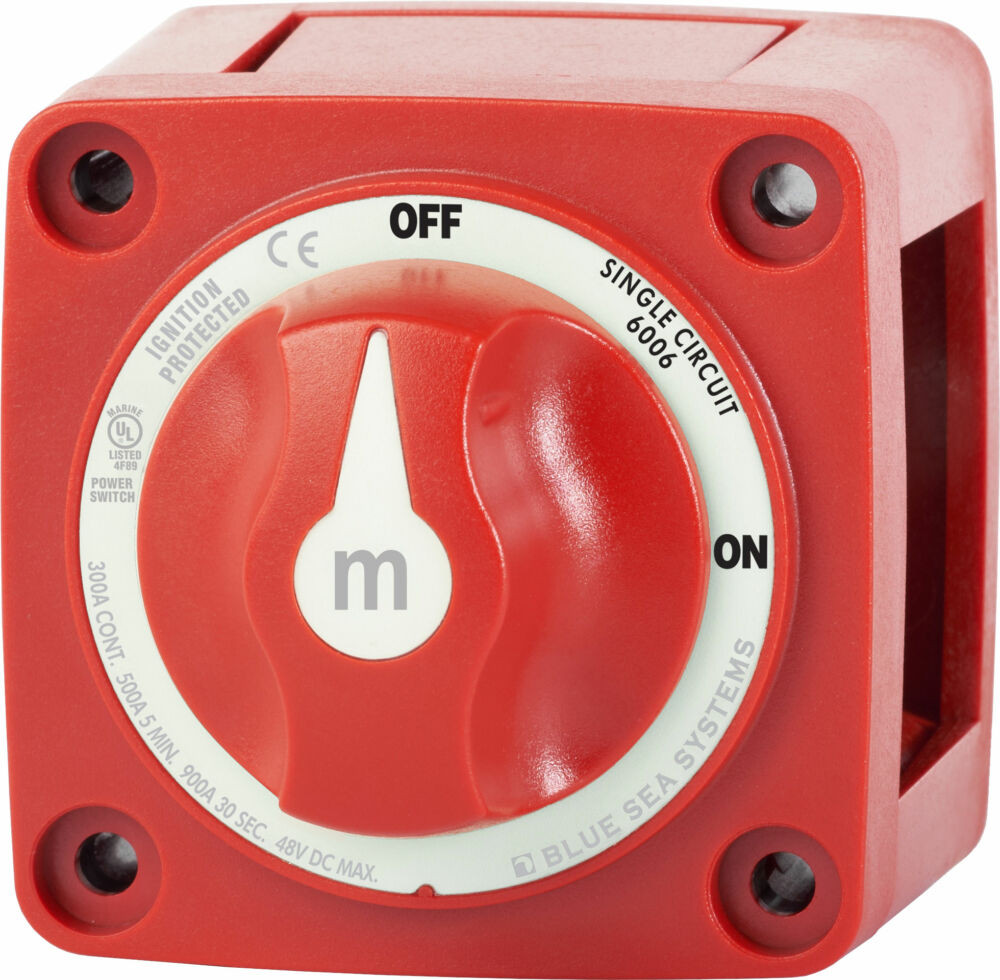

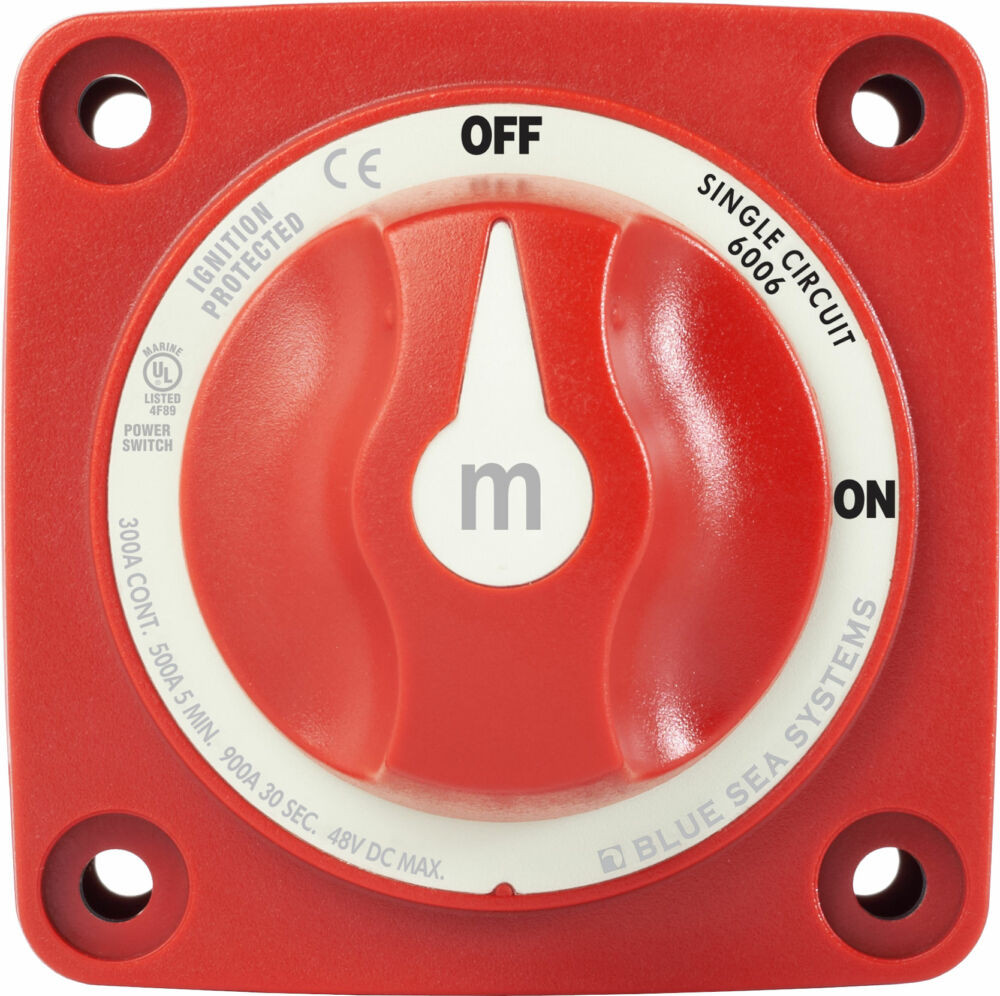

Blue Sea Systems Switch Battery m-Series ON/OFF With Knob

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface, front panel, or rear panel mounting
Isolating cover with snap-on sections protects rear contacts

Info

Current (A):

300

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/ON

Switch mechanism:

Mechanikus

Max Voltage:

48V DC

Website:

https://www.bluesea.com/products/6006/m-Series_Min...

Weight:

290 g/db

Technical specification

Specifications
Switch Type	Single Circuit ON-OFF
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	48V DC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 min)
Cranking Rating 30 sec	900A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.65Lb (0.29 Kg)
Weight	0.65lb (0.29 kg)
