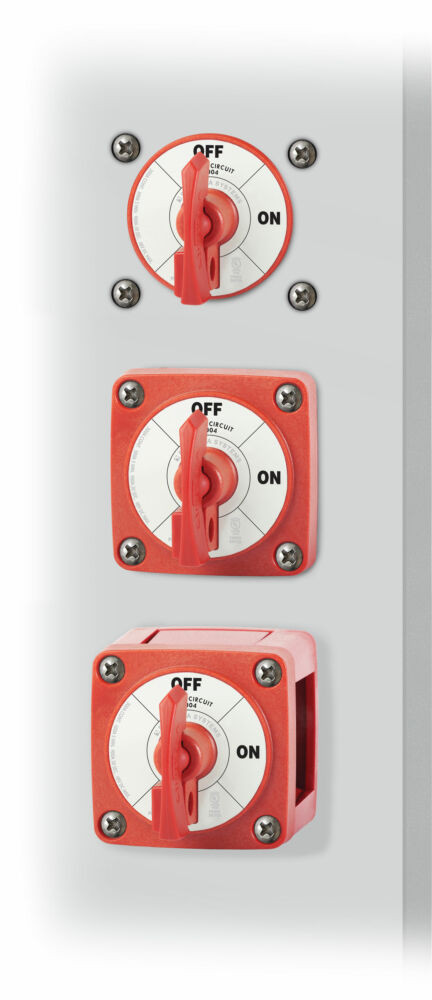

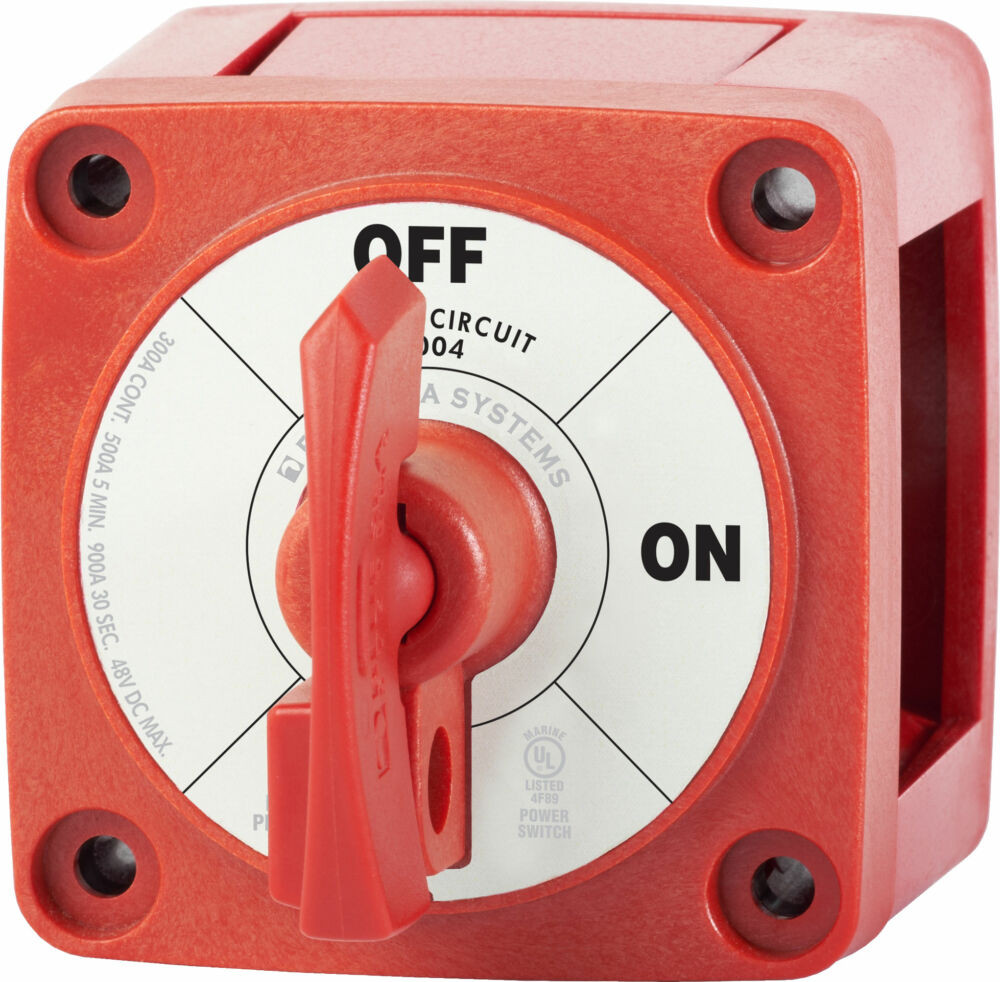

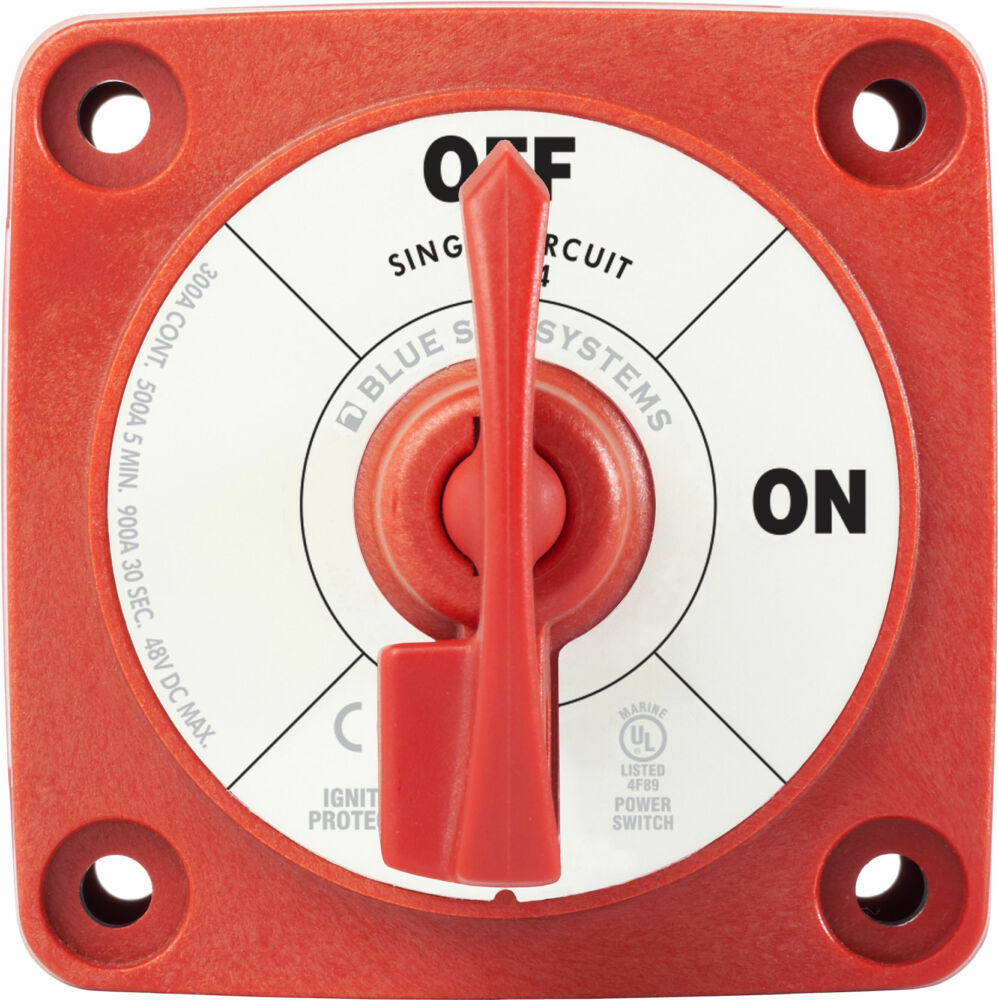

Blue Sea Systems Switch Battery m-Series ON/OFF With Locking Key, (Akkumulátor kapcsoló)

Price: 19 638 Ft
without VAT: 15 463 Ft+VAT (4 175 Ft)

Blue Sea Systems Switch Battery m-Series ON/OFF With Locking Key, (Akkumulátor kapcsoló)

Name: Blue Sea Systems Switch Battery m-Series ON/OFF With Locking Key, (Akkumulátor kapcsoló)
Brand: BLUESEASYSTEMS
SKU: BSS-6004
Price: 19638 HUF
Availability: InStock

In stock

Price: 19 638 Ft
without VAT: 15 463 Ft+VAT (4 175 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

6004-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

300 Amps continuous rating for outboards and small gasoline or diesel engines

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22 mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
One-piece stainless flange nuts ensure safe and secure connections

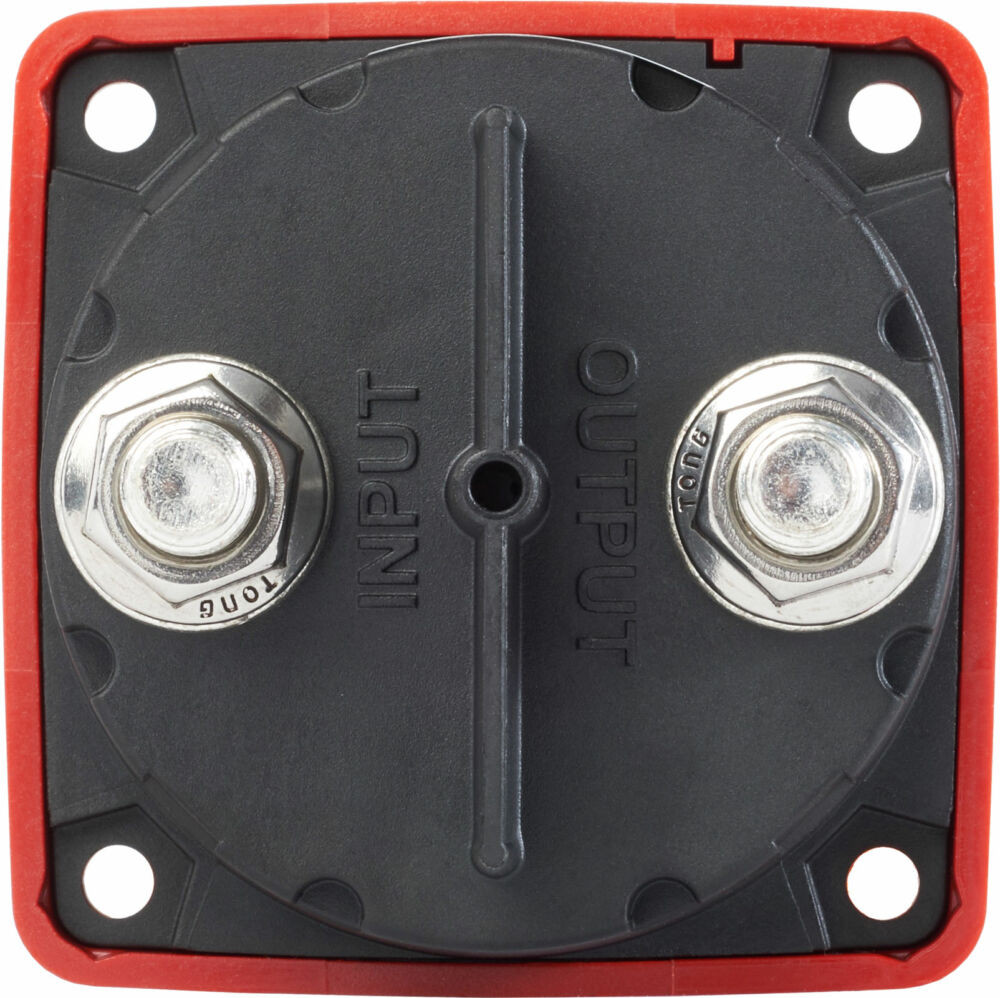

Isolating cover protects rear contacts
Breakout tabs allow wire access in any direction

Details

Blue Sea Systems Switch Battery m-Series ON/OFF With Locking Key

300 Amps continuous rating for outboards and small gasoline or diesel engines

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22 mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
One-piece stainless flange nuts ensure safe and secure connections
Isolating cover protects rear contacts
Breakout tabs allow wire access in any direction

Info

Current (A):

300

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/ON

Switch mechanism:

Mechanikus

Max Voltage:

48V DC

Website:

https://www.bluesea.com/products/6004/Single_Circu...

Weight:

290 g/db

Technical specification

Specifications
Switch Type	Single Circuit ON-OFF
Color	Red
Maximum Voltage	48V DC
Stud Size	3/8"
Continuous Rating	300A
Intermittent Rating	500A
Cranking Rating 30 sec	900A
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Weight	0.65lb (0.29 kg)
