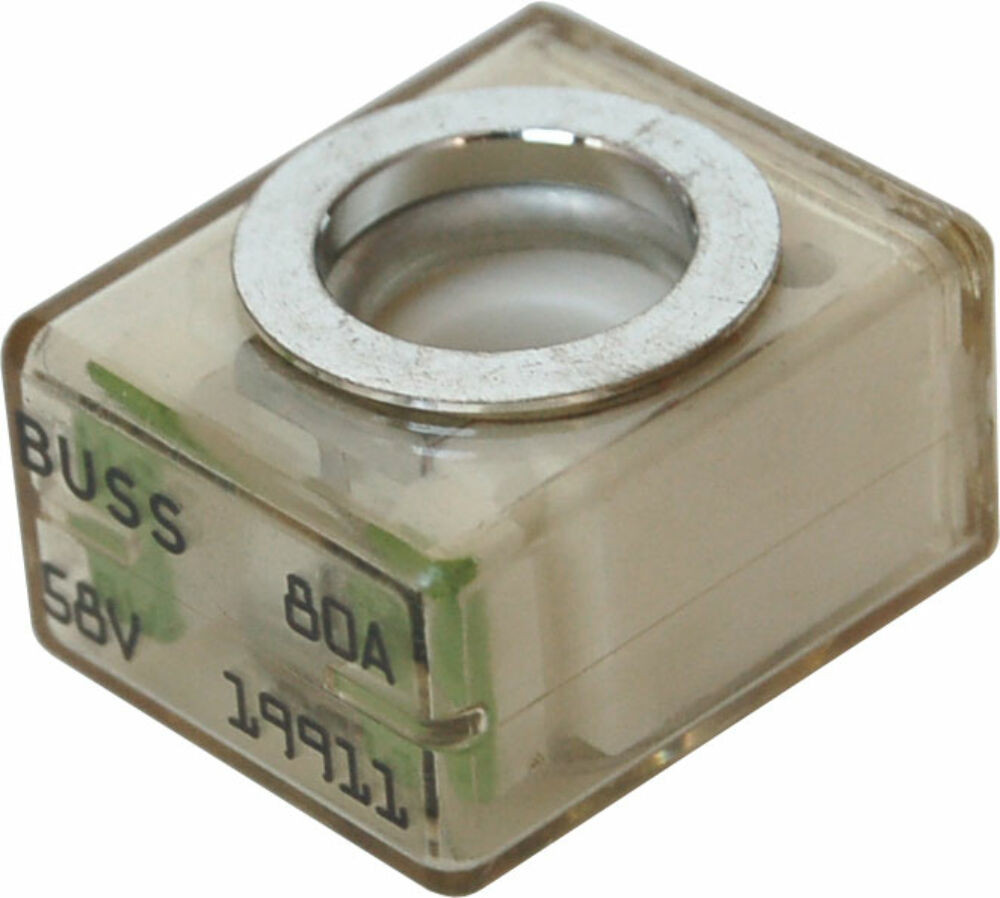

Blue Sea Systems Fuse Terminal 80A
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
5181-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
- Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected—safe for installation aboard gasoline powered boats
- Clear window—visual indication of blown condition
- Color coded for each amperage
Bundle offers
Blue Sea Systems Fuse Terminal 80A
- Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected—safe for installation aboard gasoline powered boats
- Clear window—visual indication of blown condition
- Color coded for each amperage
Current (A):
80
Fuse Type:
MRBF Terminal Fuse
Energy distribution category:
Biztosíték és tartó
Max Voltage:
58V DC
Weight:
30 g/db
| Specifications | |
|---|---|
| Amperage | 80A |
Ignition Protected
|
Yes |
| Maximum Voltage | 58V DC |
| Interrupt Capacity
|
10000A @ 14V DC 5000A @ 32V DC 2000A @ 58V DC |
| Weight | 0.06lb (0.03 kg) |
