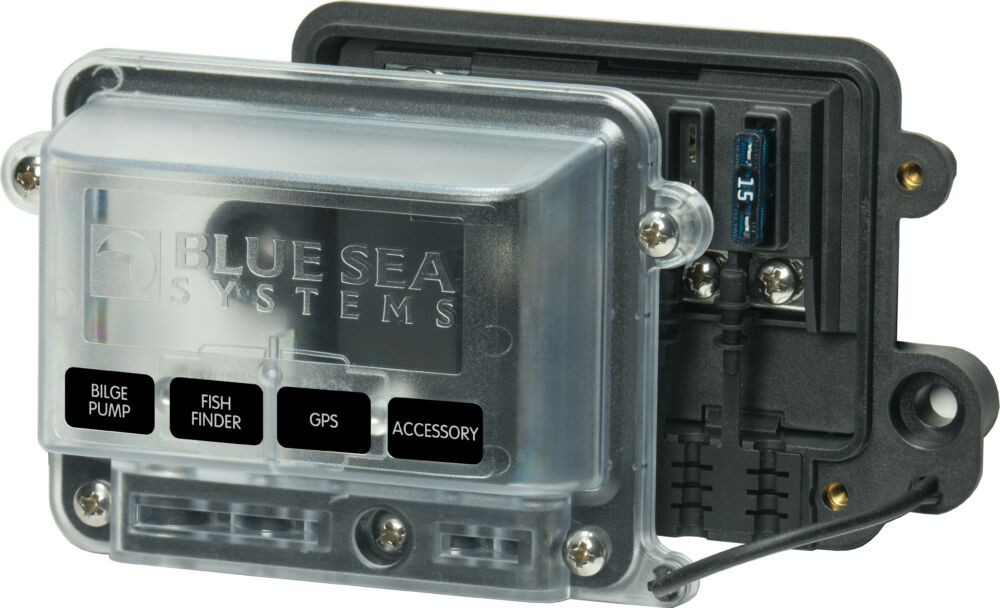

Blue Sea Systems Fuse Block ST-Blade Water Resistant Fuse Block

Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint.

• Water-resistant design with standard ring or spade type terminals
• allows for simple wiring with standard tools
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain water resistant rating if less
• than 4 loads are required
• Accepts ATO and ATC fast-acting blade fuses
• Accepts ATO/ATC-Style Low Profile Circuit Breakers
• Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
• 5056100 meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Small format standard and custom labels available
• Spare fuse and fastener storage in cover
• Fuses and circuit breakers sold separately

Data

Current (A):

80

Waterproof:

Igen

Connectable Circuit:

DC

Energy distribution category:

Biztosíték és tartó

Type of fuse holder:

ATO/ATC

Number of fused circuits:

4

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/5056/ST-Blade_Wat...

Weight:

190 g/db

Selectable quantities:

1 db, 6 db, 11 db, 16 db, ...

Technical specification

Specifications
Amperage	80A per block 25A per circuit
Maximum Voltage	32V DC
Bus Material	Tin-Plated Copper C11000
Mounting Holes	Clearance for 1/4" (6mm) screws
Screw Terminal Type	#8-32 Screws with captive star lock washer
Wire Size	(1) 8 AWG to 4 AWG - Input (4) 16 AWG to 10 AWG - Load
