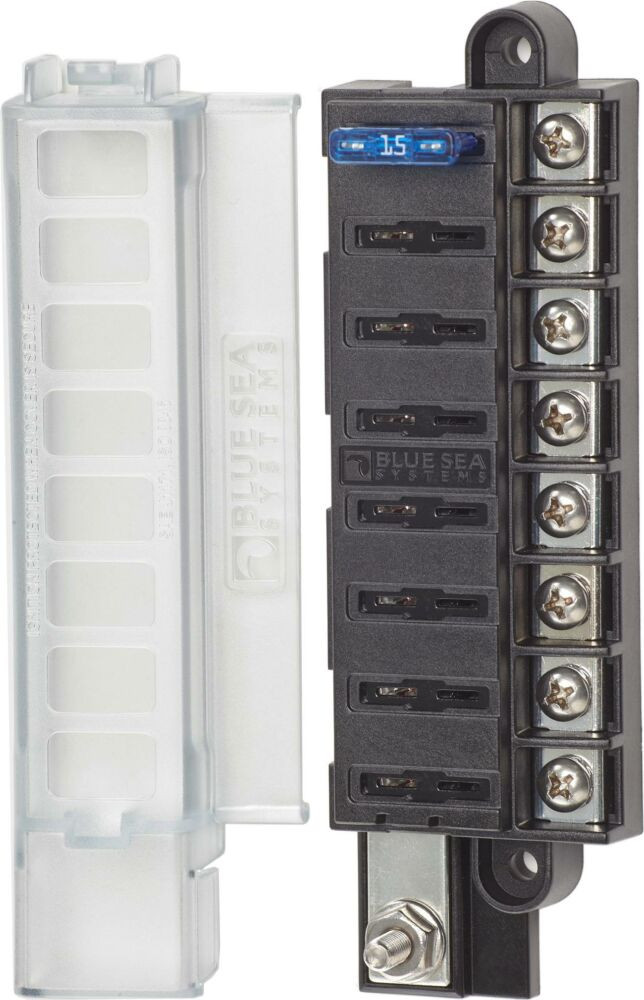

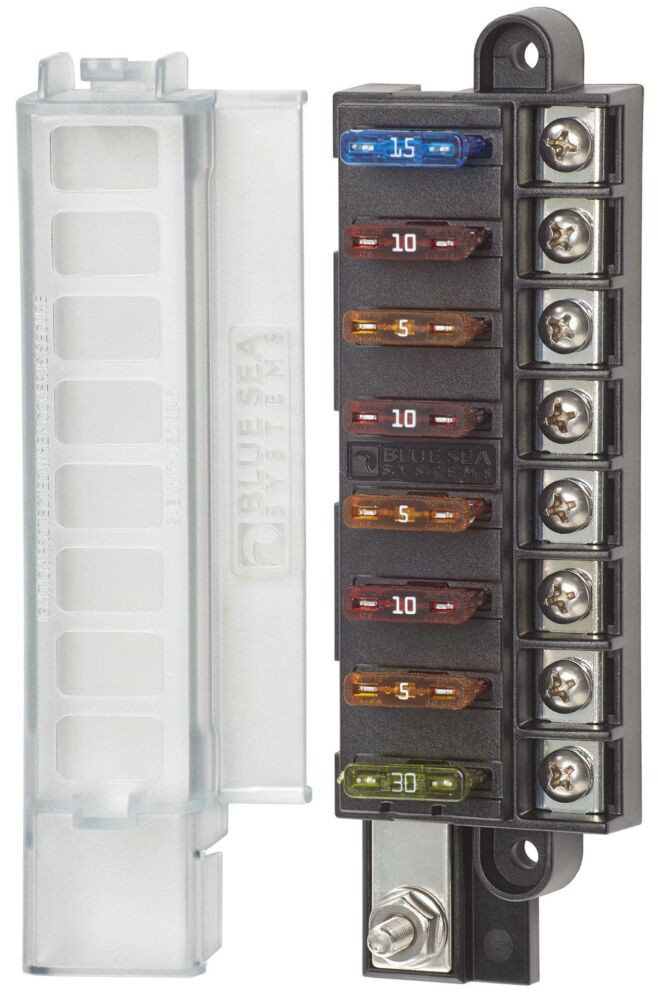

Blue Sea Systems Fuse Block ST-Blade Compact 8 Circuits with Cover

Name: Blue Sea Systems Fuse Block ST-Blade Compact 8 Circuits with Cover
Brand: BLUESEASYSTEMS
SKU: BSS-5046
Price: 31163 HUF

Price: 31 163 Ft
without VAT: 24 538 Ft+VAT (6 625 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

5046-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

Blue Sea Systems Fuse Block ST-Blade Compact 8 Circuits with Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Single side design allows wire entry from one side to minimize footprint
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Includes 8 write-on circuit labels
Fuses sold separately

Current (A):

100

Connectable Circuit:

Energy distribution category:

Biztosíték és tartó

Type of fuse holder:

ATO/ATC

Number of fused circuits:

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/5046/ST_Blade_Com...

Weight:

180 g/db

Quantity options:

1 db, 6 db, 11 db, 16 db, ...

Specifications
Circuits	8
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Terminal Stud Torque	24 in-lb (2.71 Nm)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Scews with captive star lock washer
Terminal Stud Size	#10-32
Weight	0.40lb (0.18 kg)
