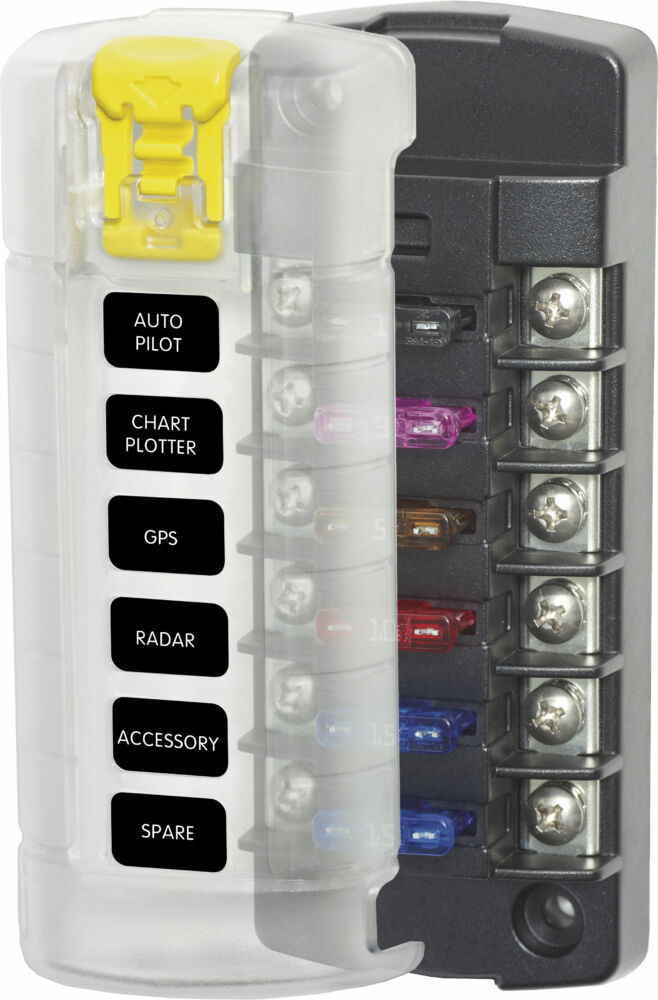

Blue Sea Systems Fuse Block ST-Blade 6 Circuits Independent with Cover
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
5035-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
- Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
- Clear insulating cover with label recesses accepts Small Format Labels
- Spare fuse holder in cover
- Accepts ring or snap fork type terminals
- Includes two terminal block jumpers
Bundle offers
Blue Sea Systems Fuse Block ST-Blade 6 Circuits Independent with Cover
- Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
- Clear insulating cover with label recesses accepts Small Format Labels
- Spare fuse holder in cover
- Accepts ring or snap fork type terminals
- Includes two terminal block jumpers
Current (A):
30
Connectable Circuit:
DC
Energy distribution category:
Biztosíték és tartó
Type of fuse holder:
ATO/ATC
Number of fused circuits:
6
Independent circuit:
Igen
Max Voltage:
32V DC
Weight:
160 g/db
Selectable quantities:
1 db, 6 db, 11 db, 16 db, ...
| Specifications | |
|---|---|
| Circuits | 6 |
Maximum Amperage
|
30A per circuit 40A per jumped circuit group |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 with Captive Star Lockwasher |
| Weight | 0.35lb (0.16 kg) |
