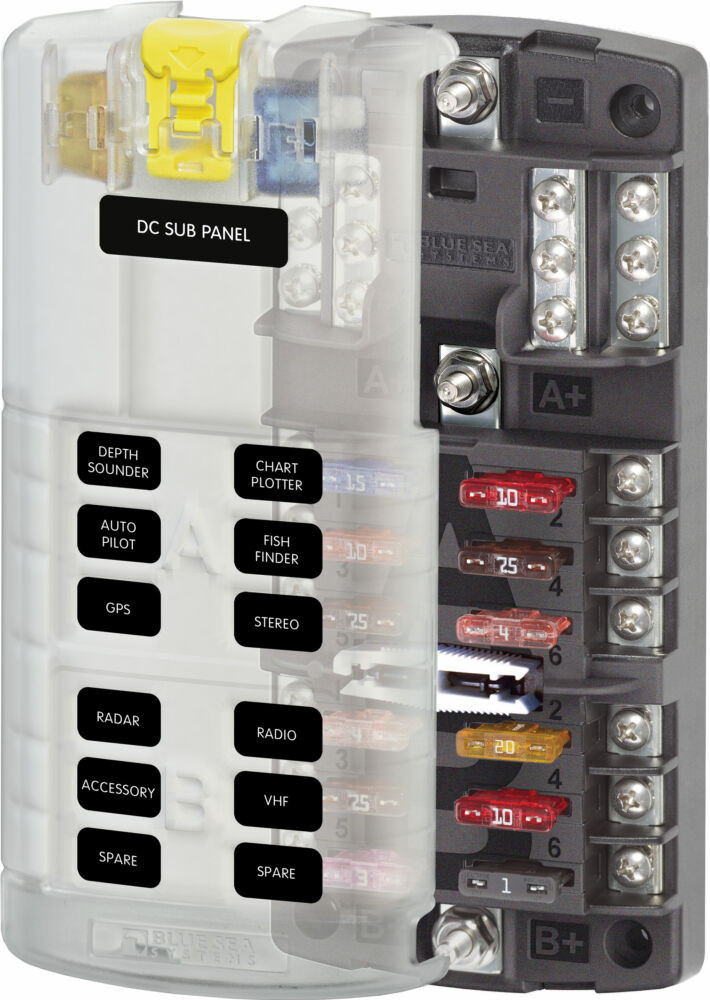

Blue Sea Systems Fuse Block ST-Blade Dual12 with Grounding/cvr
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
5032-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
Bundle offers
Blue Sea Systems Fuse Block ST-Blade Dual12 with Grounding/cvr
Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately
Current (A):
100
Connectable Circuit:
DC
Energy distribution category:
Biztosíték és tartó
Type of fuse holder:
ATO/ATC
Number of fused circuits:
12
Max Voltage:
32V DC
Weight:
340 g/db
Selectable quantities:
1 db, 6 db, 11 db, 16 db, ...
| Specifications | |
|---|---|
| Circuits | 12 |
Maximum Amperage
|
30A per circuit 100A total
|
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.75lb (0.34 kg) |
