Details

Blue Sea Systems Fuse Block ST-Blade 12 Circuits with Grounding/cvr

Consolidates branch circuits and in-line fuses

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits

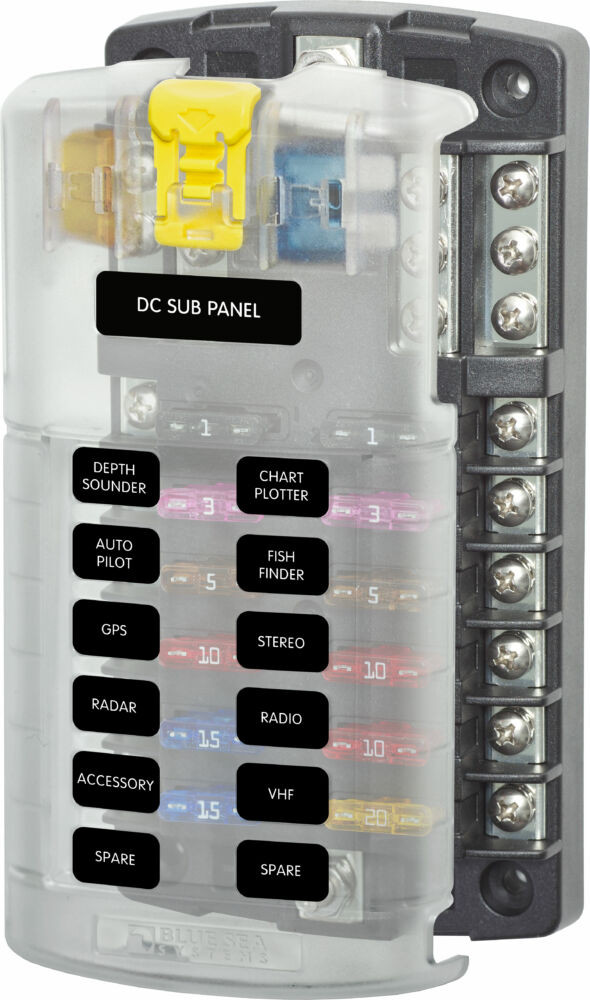

• Models available with or without a cover
• Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
• Fuse blocks with covers include 20 write-on circuit labels
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast acting blade fuses
• Fuses sold separately

Info

Current (A):

100

Connectable Circuit:

DC

Energy distribution category:

Biztosíték és tartó

Type of fuse holder:

ATO/ATC

Number of fused circuits:

12

Negative rail:

Igen

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/5026/ST_Blade_Fus...

Weight:

340 g/db

Quantity options:

1 db, 6 db, 11 db, 16 db, ...

Technical specification

Specifications
Circuits	12
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Negative Bus	#10-32 Stud
Positive Bus	#10-32 Stud
Recommended Torque	24 in-lb (2.71 N·m)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Screws with captive star lock washer
Weight	0.75lb (0.34 kg)
