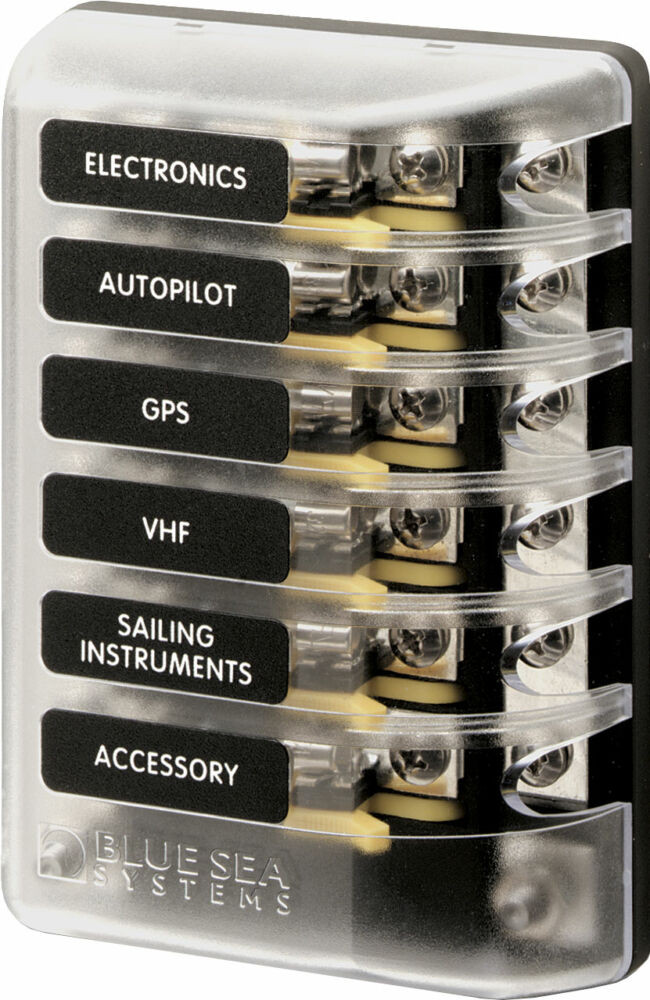

Blue Sea Systems Fuse Block 3AG 6circuit with ground
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
5015-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Innovative design allows for labeling, spare fuse storage, and easy fuse removal
Bundle offers
Blue Sea Systems Fuse Block 3AG 6circuit with ground
Innovative design allows for labeling, spare fuse storage, and easy fuse removal
- Clear insulating cover with label recesses for accept Large Format Labels
- Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
- Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
- Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
Input voltage (DCV):
12/24
Current (A):
30
Connectable Circuit:
DC
Energy distribution category:
Biztosíték és tartó
Type of fuse holder:
ATO/ATC
Number of fused circuits:
6
Negative rail:
Igen
Weight:
250 g/db
Selectable quantities:
1 db, 6 db, 11 db, 16 db, ...
| Specifications | |
|---|---|
Maximum Amperage
|
100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #10 Screw |
| Negative Bus | Yes |
| Base Material | Reinforced Polycarbonate |
| Cover Material | Polycarbonate |
| Screw Terminal Type | #8-32 with Captive Star Lockwasher |
| Weight | 0.55Lb (0.25 Kg) |
| Weight | 0.58lb (0.26 kg) |
