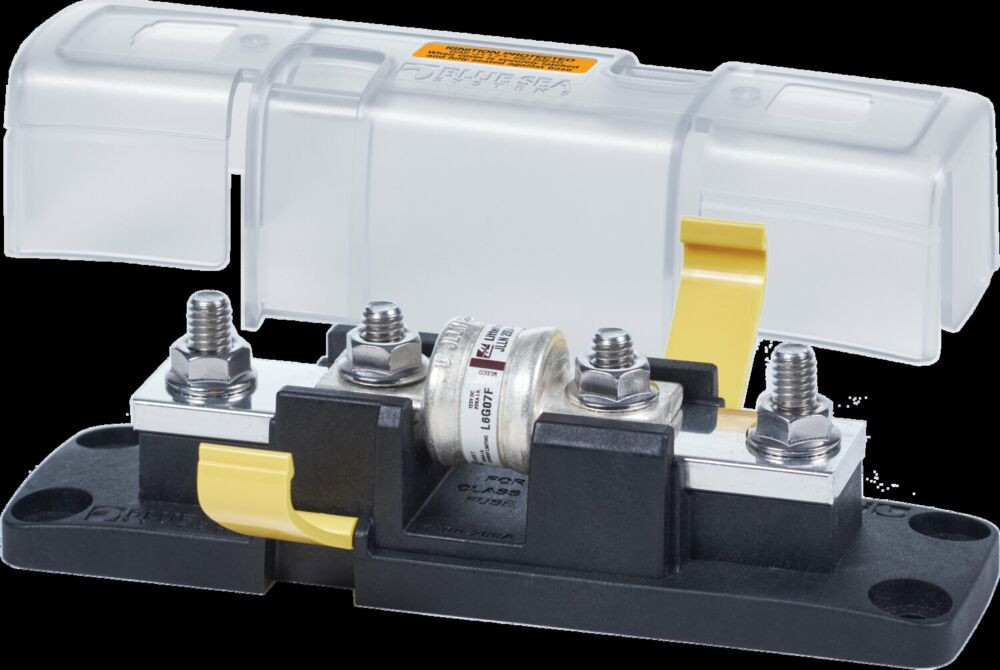

Blue Sea Systems Class T Fuse Block with Insulating Cover - 110 to 200A
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
5007100-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
Bundle offers
Blue Sea Systems Class T Fuse Block with Insulating Cover - 110 to 200A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
- Ignition Protected
Current (A):
200
Connectable Circuit:
DC
Energy distribution category:
Biztosíték és tartó
Type of fuse holder:
T-fuse
Number of fused circuits:
1
Max Voltage:
160V DC
Weight:
500 g/db
Selectable quantities:
1 db, 6 db, 11 db, 16 db, ...
| Specifications | |
|---|---|
| Cable Size | Up to 4/0 AWG |
Ignition Protected
|
Yes |
| Maximum Amperage
|
160A
|
| Maximum Voltage | 160V DC |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Torque | 190 in-lb (21.47 Nm) 72 in-lb (8.13 Nm) |
| Mounting Fastner Size | 1/4" or M6 Hardware |
| Terminal Stud Size | 1/4"-20 (M6) |
| Weight | 1.10lb (0.5 kg) |
