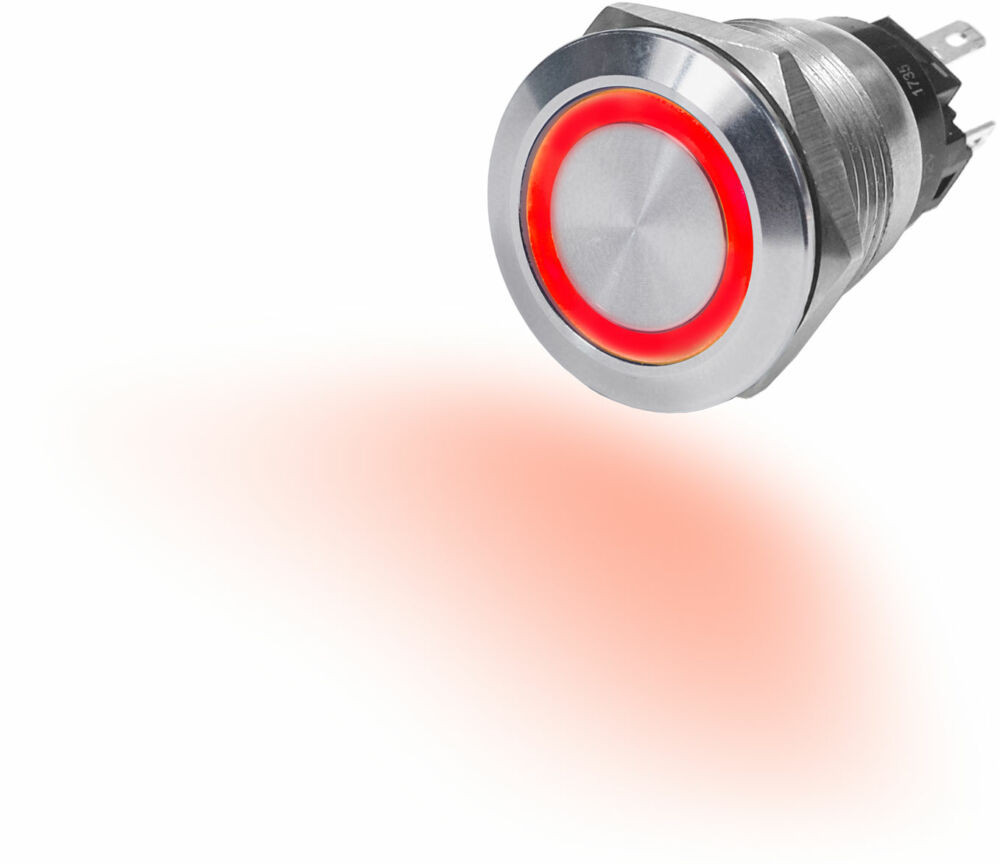

Blue Sea Systems Switch Button Stainless Steel 10A Off-(On) Red (5db)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
4163-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Available in Blue & Red
- Available in momentary and non-momentary
- Installs with 0.110inch quick connects (included in retail package)
Bundle offers
Blue Sea Systems Switch Button Stainless Steel 10A Off-(On) Red
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Available in Blue & Red
- Available in momentary and non-momentary
- Installs with 0.110inch quick connects (included in retail package)
Input voltage (DCV):
12
Current (A):
10
Connectable Circuit:
DC
Switching mode:
Nyomógomb
Energy distribution category:
Kapcsoló
Available in a package:
Igen
Weight:
90 g/qty
| Specifications | |
|---|---|
Action
|
OFF-(ON) |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 70° C |
| Minimum Storage Temperature | -55° C |
| Maximum Storage Temperature | 85° C |
| Illumination | Independent – Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | ¾” (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 – 0.110inch Quick Connect terminals |
| Weight | 0.20lb (0.09 kg) |
