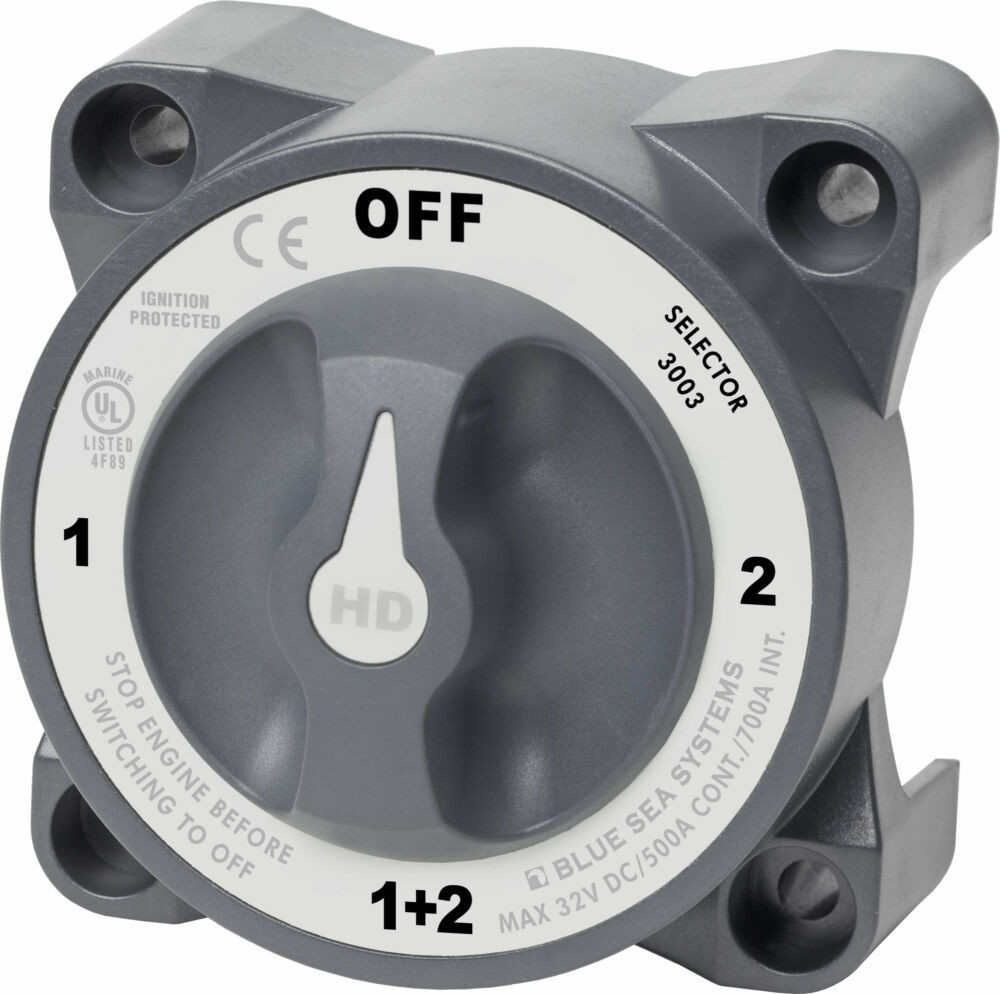

Blue Sea Systems Switch Battery HD Series Selector 4 Position With AFD

Switches isolated battery banks to all loads or combines battery banks to all loads

• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected—safe for installation aboard gasoline powered boats

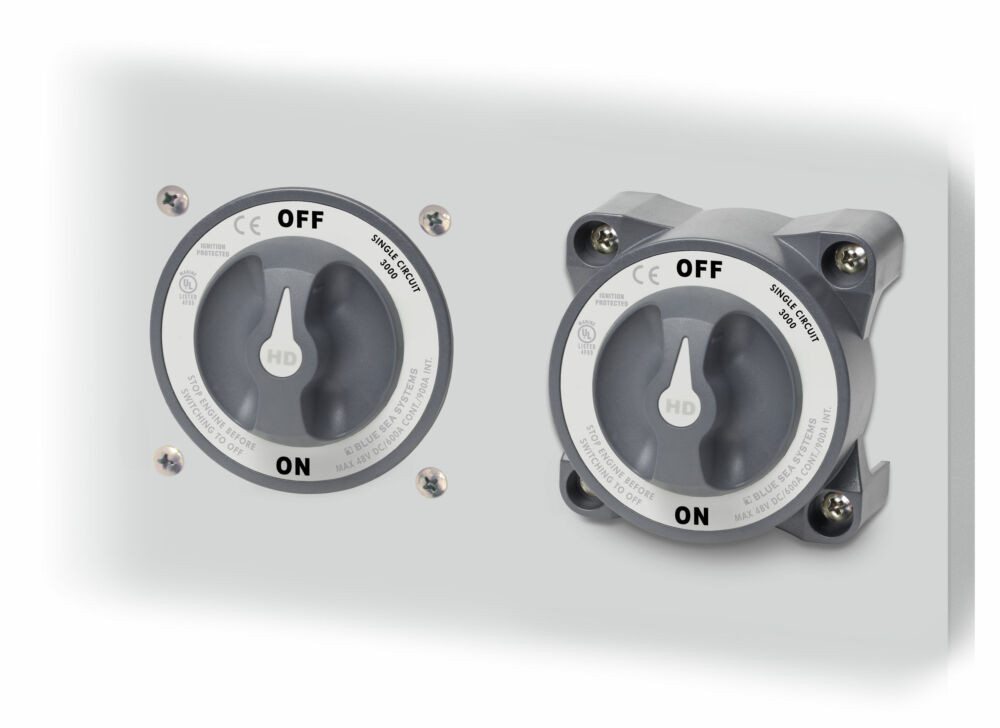

• Case design allows surface or rear panel mounting

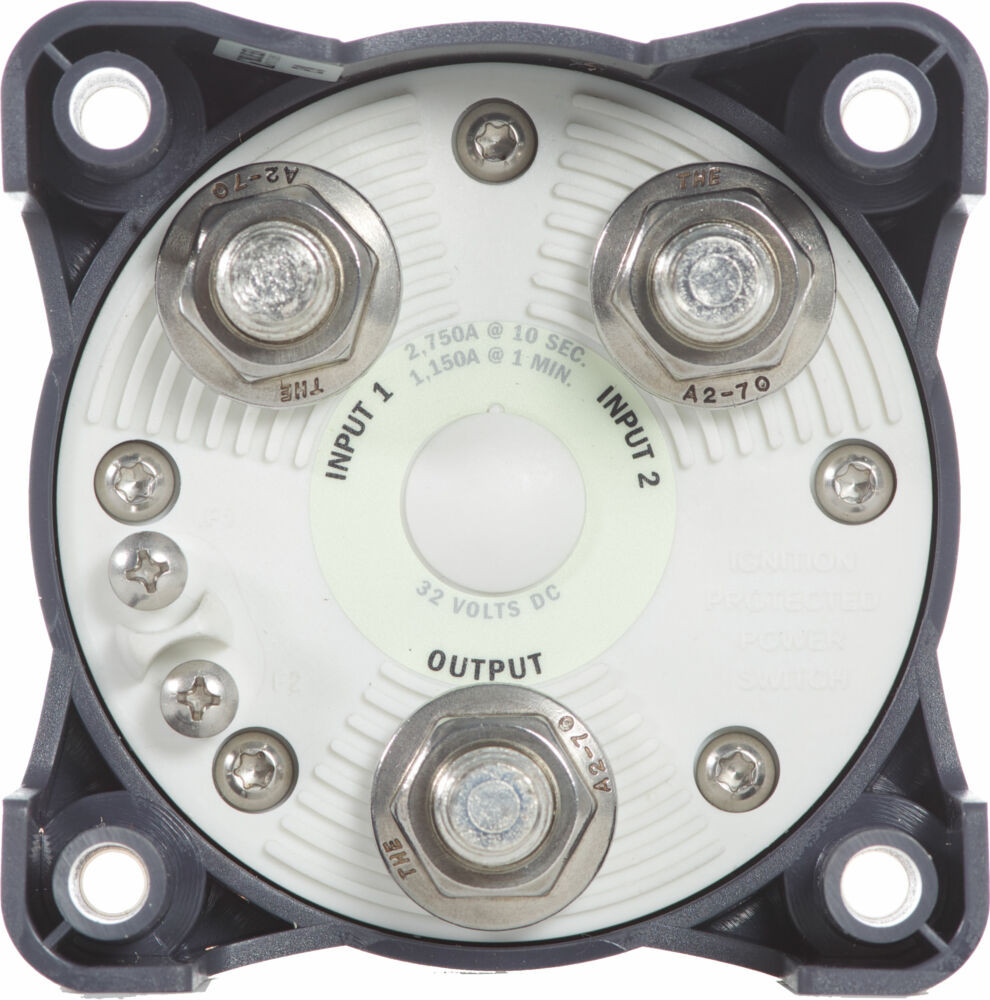

• Accepts two 4/0 AWG (95mm²) battery cables

Info

Current (A):

500

Connectable Circuit:

DC

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

500

Switch position:

OFF/1/2/1+2

Switch mechanism:

Mechanikus

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/3003/HD-Series_He...

Weight:

570 g/db

Technical specification

Specifications
Switch Type	Selector 4 Position
Color	Grey
Switch Positions	4
Battery Combine	Yes
Alternator Field Disconnect	Yes
Maximum Voltage	32V DC
Terminal Stud Torque	220 in-lb (24.86 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 sec	1600A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Quantity to Meet Ratings	Two Cables / Terminal
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept 1/4" (M6) Screw
Stud Material	Tinned Copper
Terminal Stud Size	1/2" (M12)
Weight	1.25Lb (0.57 Kg)
Weight	1.25lb (0.57 kg)
