  1. Battery Switch
  1. Energy distribution
  2. Battery Switch

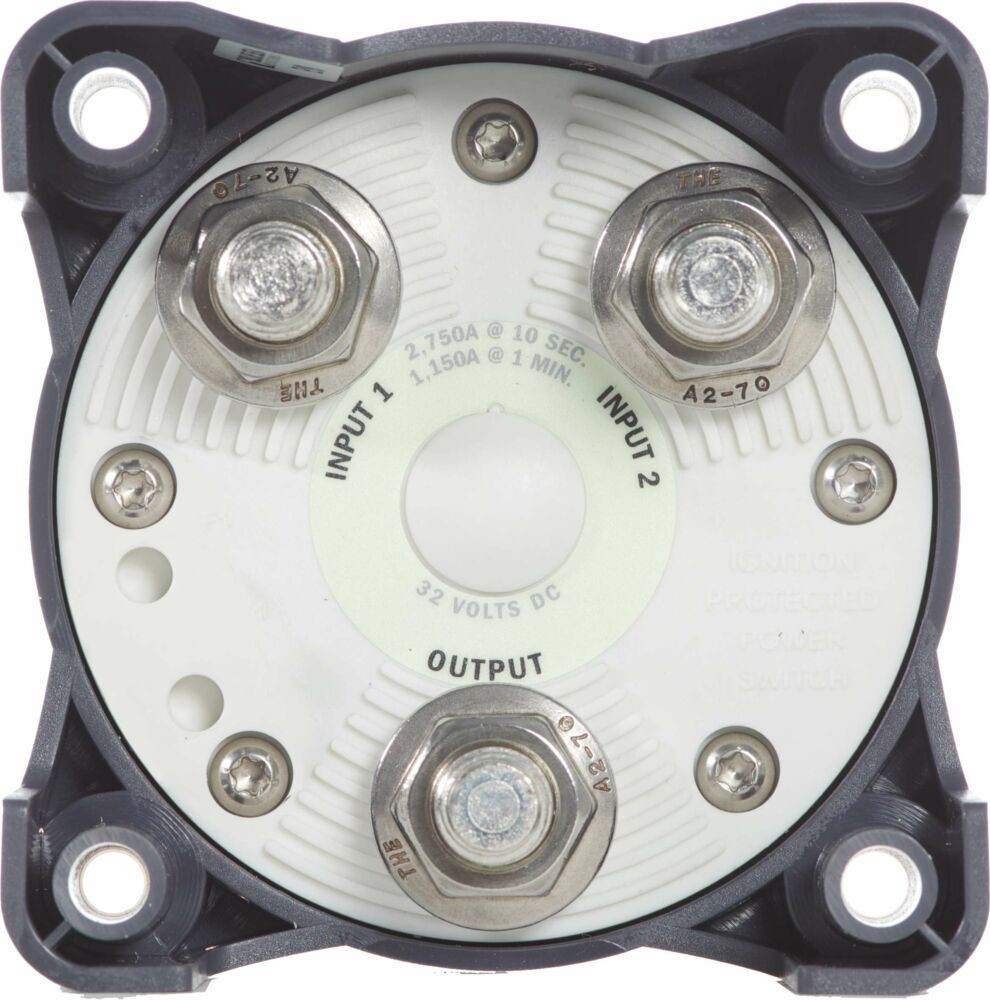

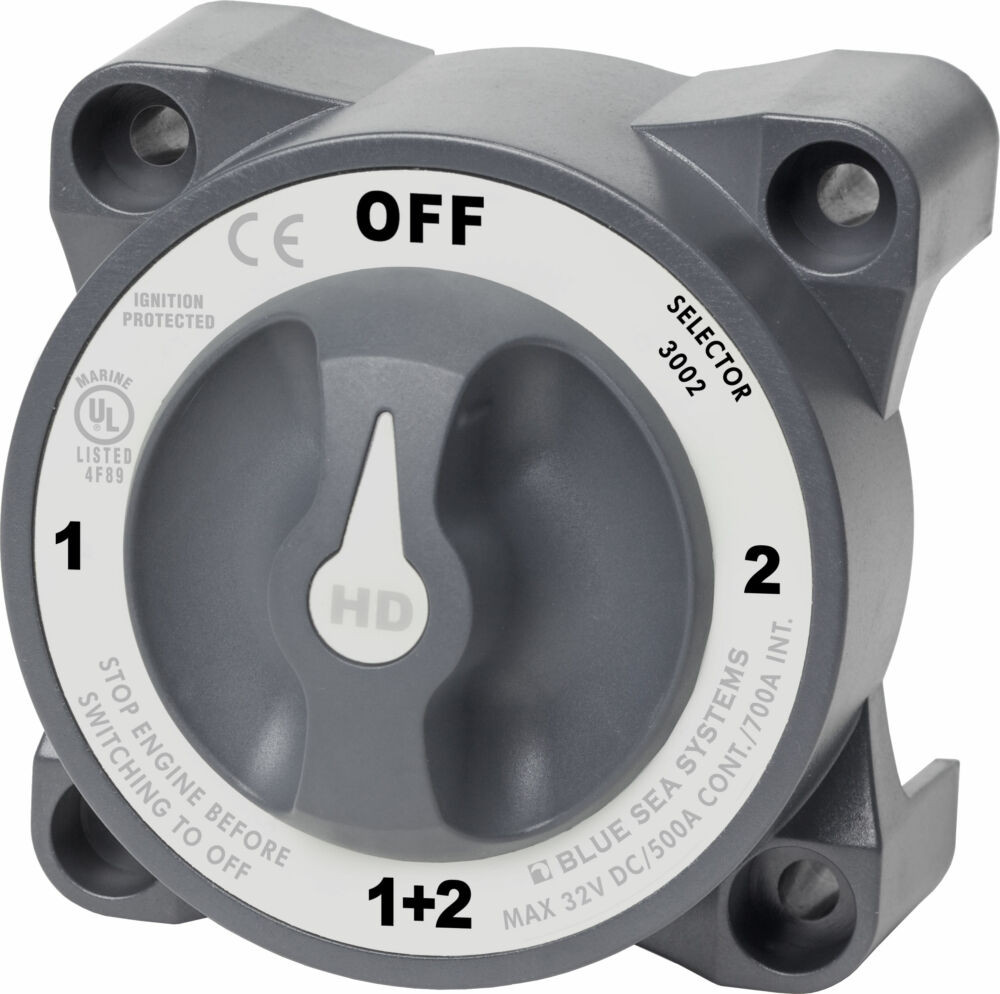

Blue Sea Systems Switch Battery HD Series Selector 4 Position, (Akkumulátor kapcsoló)

Item number:
BSS-3002
Blue Sea Systems Switch Battery HD Series Selector 4 Position, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery HD Series Selector 4 Position, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery HD Series Selector 4 Position, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery HD Series Selector 4 Position, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery HD Series Selector 4 Position, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery HD Series Selector 4 Position, (Akkumulátor kapcsoló)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
3002-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Switches isolated battery banks to all loads or combines battery banks to all loads
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables
Bundle offers
  • Details
  • Data
  • Technical specification
  • Download User Manual
Details

Blue Sea Systems Switch Battery HD Series Selector 4 Position

Switches isolated battery banks to all loads or combines battery banks to all loads

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables
Data
Current (A):
500
Connectable Circuit:
DC
Energy distribution category:
Akkumulátor kapcsoló
Main switch Current (A):
500
Switch position:
OFF/1/2/1+2
Switch mechanism:
Mechanikus
Max Voltage:
32V DC
Website:
https://www.bluesea.com/products/3002/HD-Series__H...
Weight:
570 g/db
Technical specification
Specifications
Switch Type  Selector 4 Position
Color Grey
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating 500A
Intermittent Rating 700A (5 min)
Cranking Rating 30 sec 1600A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables / Terminal
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 1/2" (M12)
Weight 1.25Lb (0.57 Kg)
Weight 1.25lb (0.57 kg)
Download User Manual


Download User Manual
